MD 9273 Leakage Clamp Imax – Inrush Current Recording
37

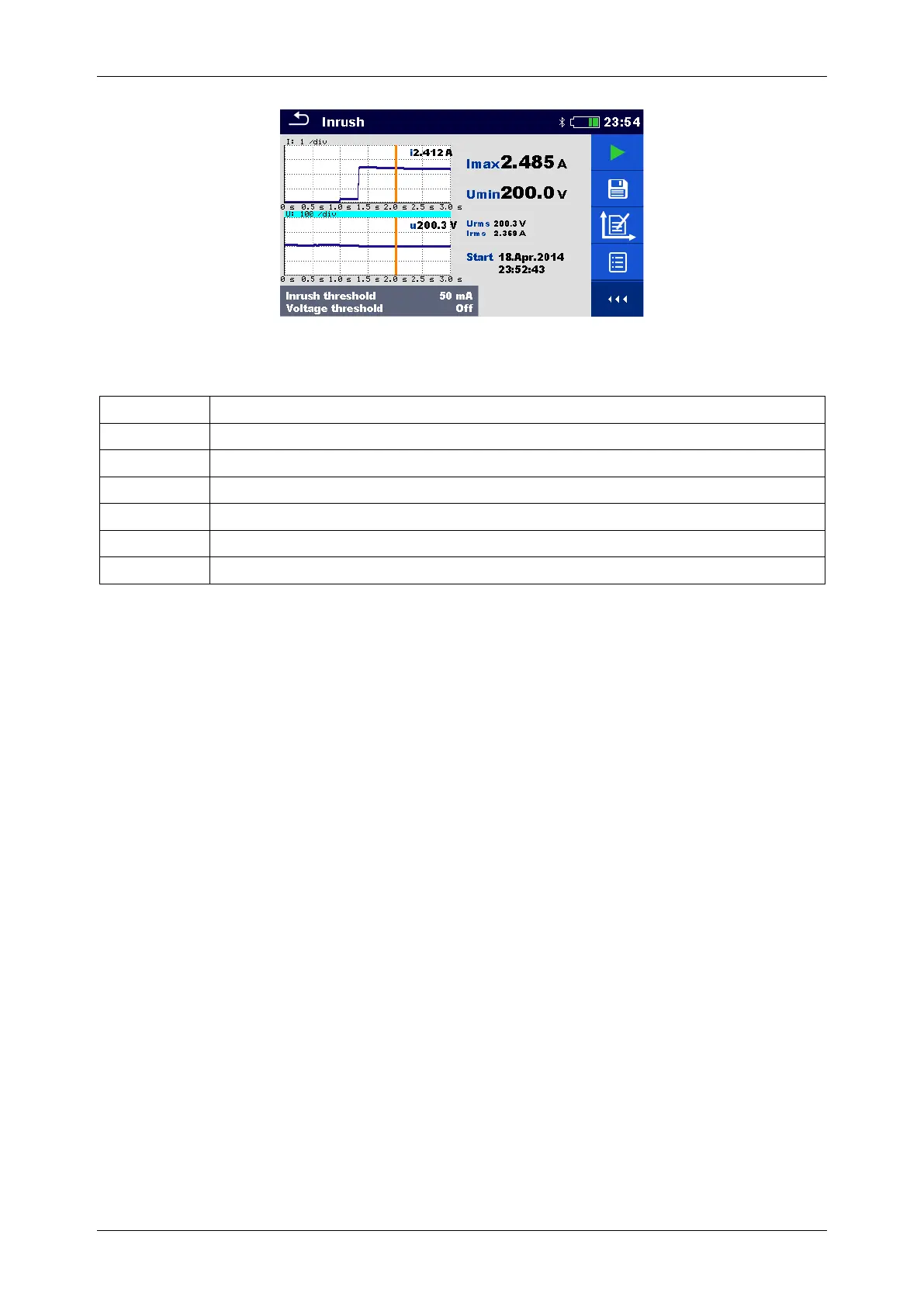

Figure E.11: Inrush test results
Test results / sub-results
I
Inrush current chart with value at red vertical line*.
U
Circuit voltage chart with value at red vertical line*.
Imax
Inrush current maximum value.
Umin
Circuit voltage dip minimum value.
Urms
Circuit effective voltage – steady state.
Irms
Current effective voltage – steady state.
Start
Inrush test start time from Master Instrument.
* tap on chart area or drag red vertical line to present chart value at chosen time
