METREL OmegaPAT MI 2140 User Manual

MI 2140 MI 2140 Omega &BetaPAT Instrument description
8
2. 2. Instrument description
2.1 Front panel description
T16A/250V
T16A/250V
F1
F2
230V
50/60 Hz
16A
115V~/ ~
RS232C
BARCODE / PRINTER
EARTH BONDIEC CORD
FLASH
1
2
3
4
5
6
7
8
9
10
11
12
13
17
16
14
15

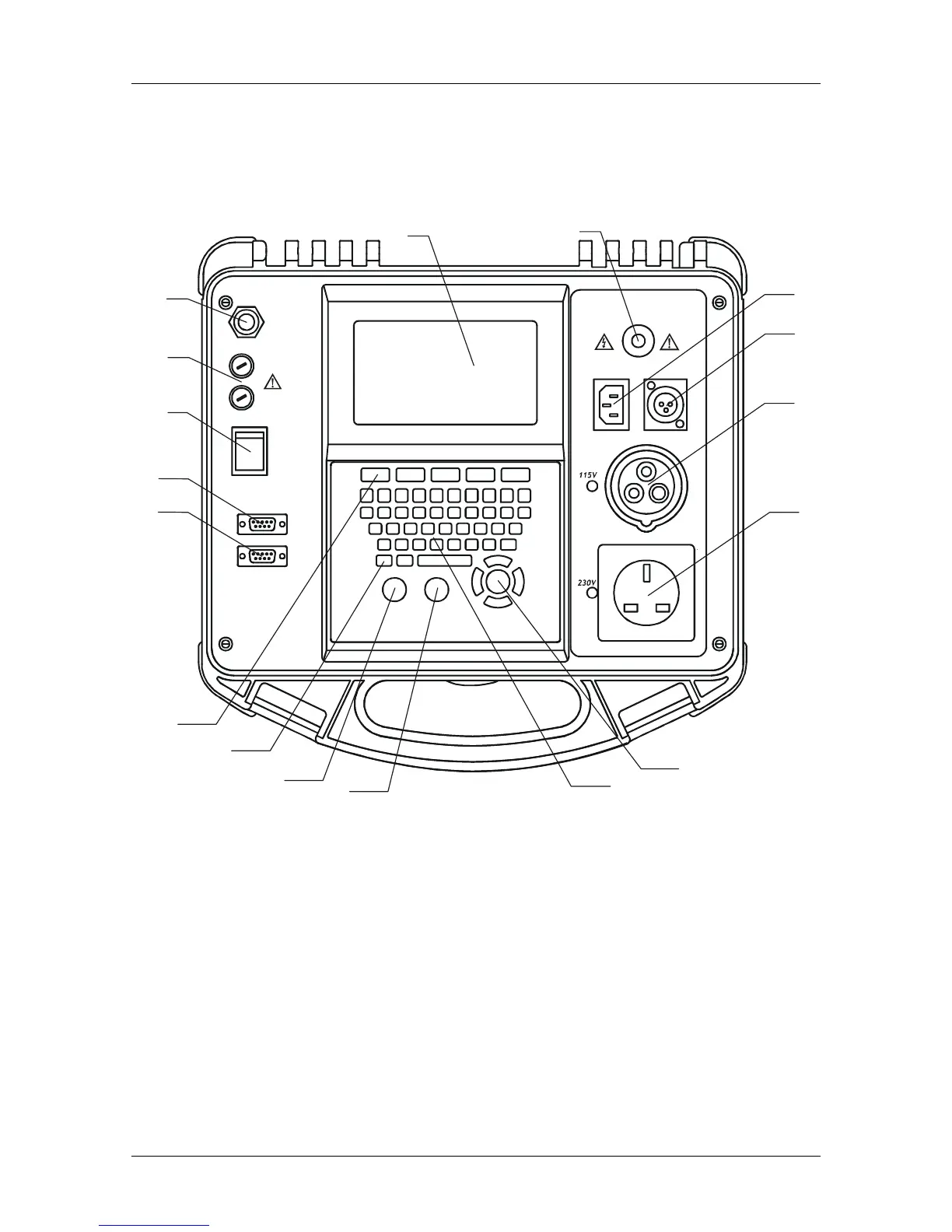

Fig. 2.1 Front panel layout
Legend:
1. Power ON/OFF switch with indication lamp.
2. T 16A 250V fuses protect instrument power supply.
3. Mains supply.
4. Graphic LCD, 240 x 128 dots, with backlight.
5. Flash test terminal (MI2140 only).
6. IEC lead connector.
7. EARTH BOND connector, also used as touch leakage input for some Class II tests.
8. 115 V socket
9. 230 V socket
