MI 2140 MI 2140 Omega &BetaPAT Instrument description
26
4.3.5. Leakage current and Power test
The purpose of this test is to determine the loss of L to N current into PE. Leakage
current is the difference between the current in L and N mains lines.
Regardless of whether the current leaks into the earth lead or an extra ground point, the
leakage test will show the true leakage current.
Also the Power consumption of the appliance is shown.
Leakage current and Power test of Class I appliances
OR
CLASS
PPLIANCE
UNDER
TEST
I

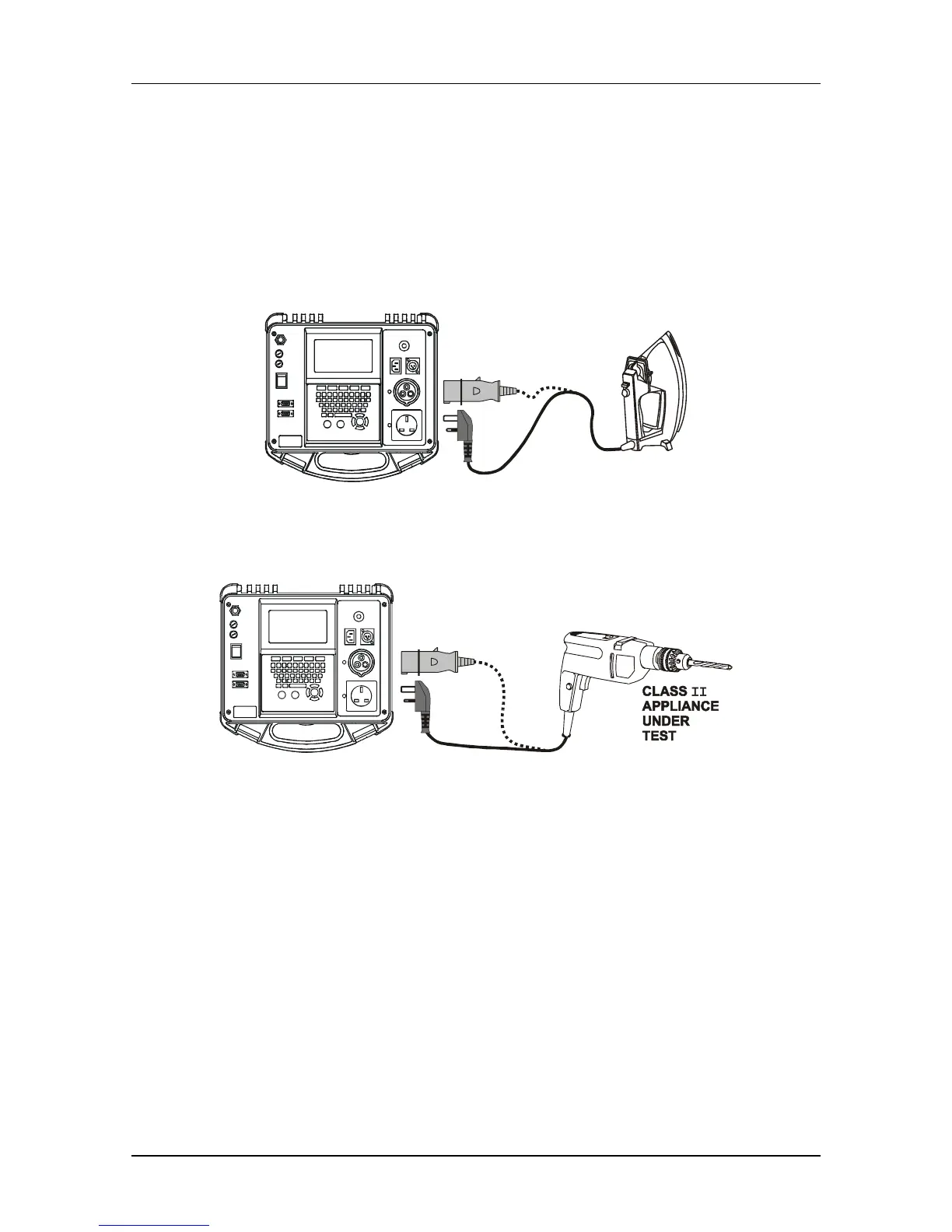

Fig. 4.32 Connection of Class I appliance for leakage current and power test
Leakage current and Power test of Class II appliances
OR
Fig. 4.33 Connection of Class II appliance for leakage current and power test
How to carry out single Leakage current and Power measurements:
STEP 1. In the MAIN MENU window select SINGLE TEST and confirm with the
ENTER key.
STEP 2. In the SINGLE TEST window select LEAKAGE and confirm with the ENTER
key.
STEP 3. The parameters of the measurement are detailed in the upper right corner of
the display. To change these parameters first press the F1 (EDIT) key and
then use cursor keys to set the required parameter. The highlighted limit is
changed with the UP and DOWN keys, movement between parameters is
possible with the LEFT and RIGHT keys. To save new limits press the F1
(SAVE) key. The test can now be performed.
