MI 2140 MI 2140 Omega &BetaPAT Instrument description
25

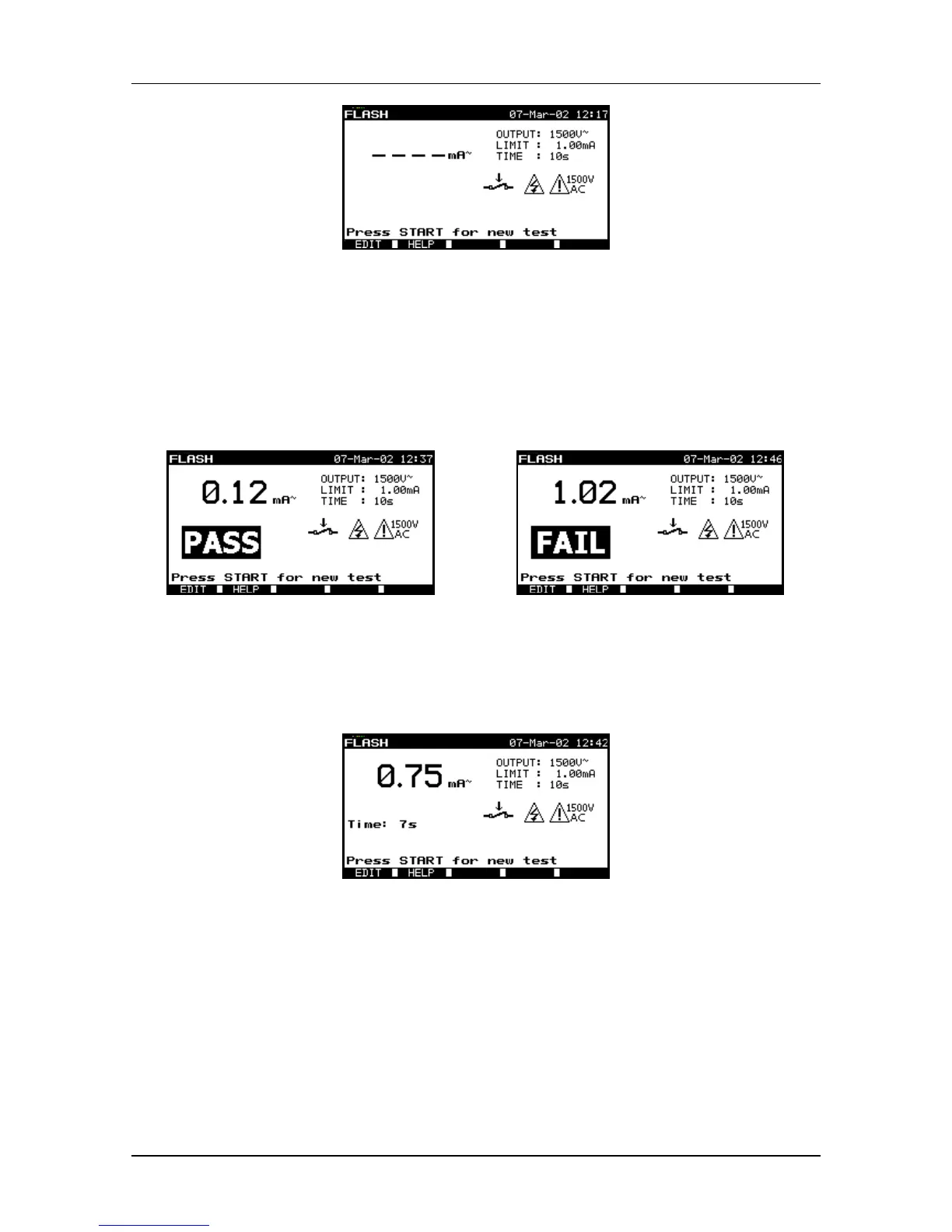

Fig. 4.28 Flash test initial display
STEP 4. Press the START key to perform test. A trip out occurs if the current exceeds
the set limit, followed by a 3 seconds buzzer warning.
STEP 5. PASS / FAIL decision is shown on the display. Repeat the test with the
START key or return to SINGLE MODE main screen with the ESC key.
Fig. 4.29 Flash test good result example
Fig. 4.30 Flash test bad result example
The test can be aborted with the STOP key at any time, but there is no PASS / FAIL
decision.
Fig. 4.31 Display of aborted flash test
Notes:
• Consider any warning on the display (see Chapter 2.2) before starting
measurement.
• Do not touch the equipment under test or the test leads during the test –
dangerous voltage is present.
