• After setting the range, use ∧ or ∨ cursor buttons to switch to the previous or next menu option. The same
can be achieved using the potentiometer after pressing the knob. Press EXIT display button the close the
range selection menu and to return to the basic display.
Units of measurement
Unit of measurement can be set for each measurement function. The unit of measurement is displayed along with
the measured value on the display. The description of the unit of measurement can consist of up to 4 characters.

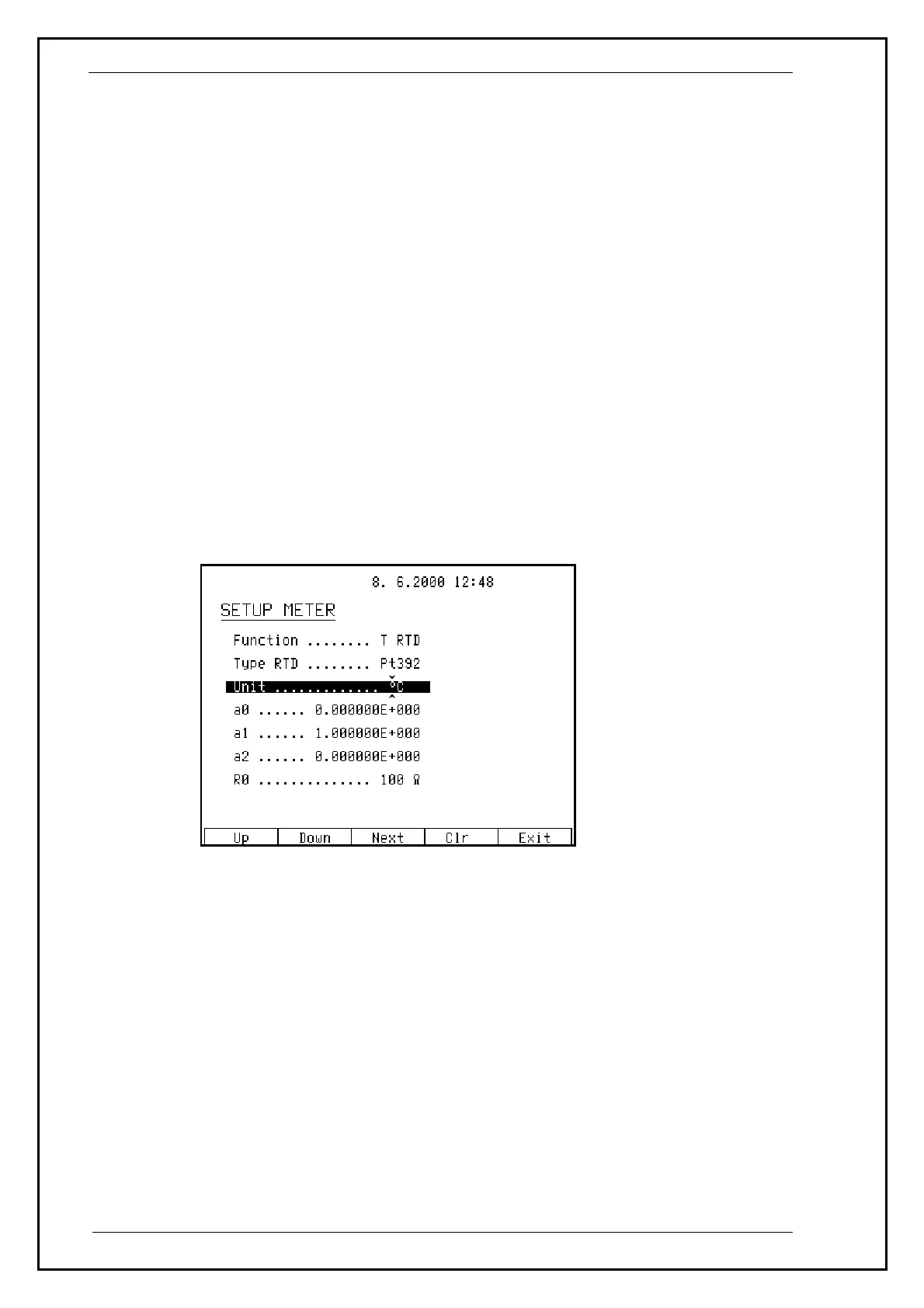

• Press METER direct control button and select UNIT option from the menu using cursor buttons.
• Press the knob of the potentiometer to display ∧ and ∨ symbols above the active character.
• Press UP, DOWN display buttons or use the potentiometer to select desired character at the active position.
• Press NEXT display button to move onto next character.
• Press the knob of the potentiometer to complete the setting.
• After the unit of measurement is selected, use ∧ or ∨ cursor buttons to move onto the next menu option. The
same can be achieved using the potentiometer after pressing the knob. Press EXIT display button the close
the range selection menu and to return to the basic display.
If you want to reset the unit of measurement to original setting, press CLR display button. Original settings are
listed below:
* basic DC voltage range VDC V
* DC current mA DC 20 mA mA
* small DC voltages mV DC up to 100 mV mV
* four-wire resistance measurement Ω
* frequency up to 15 kHz Hz
* temperature measurement using
thermocouples °C
* temperature measurement using resistive
temperature sensors °C
* measurement of strain gauge sensors mV/V
