Calibrateur multifonctions CX 1651
Manuel de l'utilisateur 141

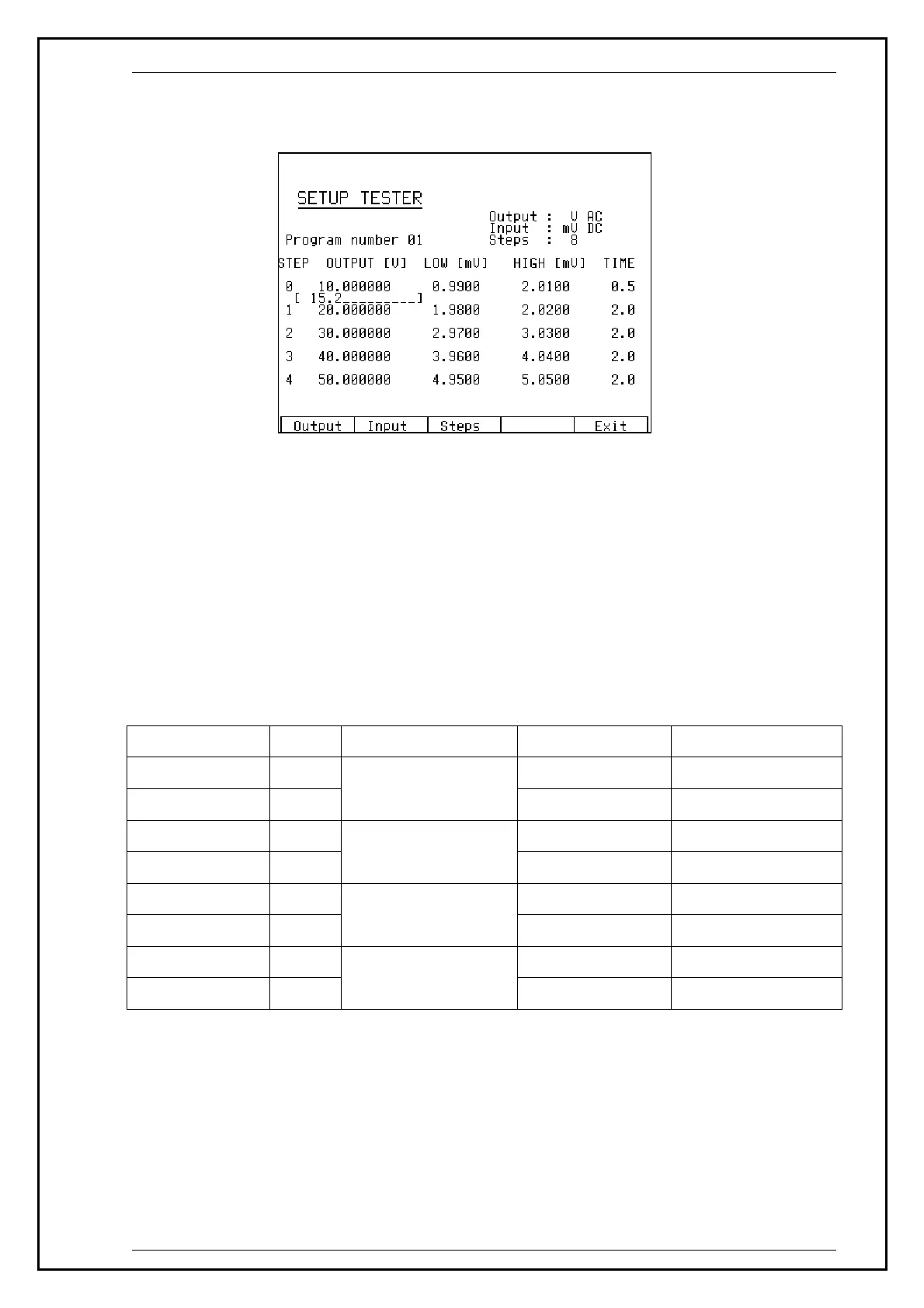

• Select the value to be changed by cursor buttons or the knob of the potentiometer.
• Enter the numeric value using the units of measurement displayed in the header of the table.
• Confirm the entry by pressing ENTER. New entry is copied to the respective position.
• This way, all numeric entries in the table can be changed.
• Press EXIT display button to return to the previous level when the programming is complete.
Note:
When the test program is executed, all steps are performed.
Within one test program, only one type of input signal and output signal can be used. It is impossible to switch to
other function of the calibrator in the middle of a program.
Setting the relays
SWITCH POLARITY and SWITCH ACTIVITY items of SETUP MENU are used to set-up the relay. The
following table lists the states of the relay depending on the values of SWITCH POLARITY, SWITCH
ACTIVITY and the test result.
SETUP MENU RELAY BEFORE TEST TEST RESULT RELYA AFTER TEST
Switch polarity OFF disconnected FAIL disconnected
Switch activity PASS PASS connected
Switch polarity ON connected FAIL connected
Switch activity PASS PASS disconnected
Switch polarity OFF disconnected FAIL connected
Switch activity FAIL PASS disconnected
Switch polarity ON connected FAIL disconnected
Switch activity FAIL PASS connected
Setup menu
