Measurement of temperature using thermocouples
The built-in multimeter allows the measurement of temperature using external thermocouple. 140-41 is required.
The thermocouple connects to Hu/+mV and Lu/-mV terminals. Temperature of cold junction must be set
manually.
To activate the measurement, select T TC function mode using METER button in the function menu and press
INPUT to measure the input value.

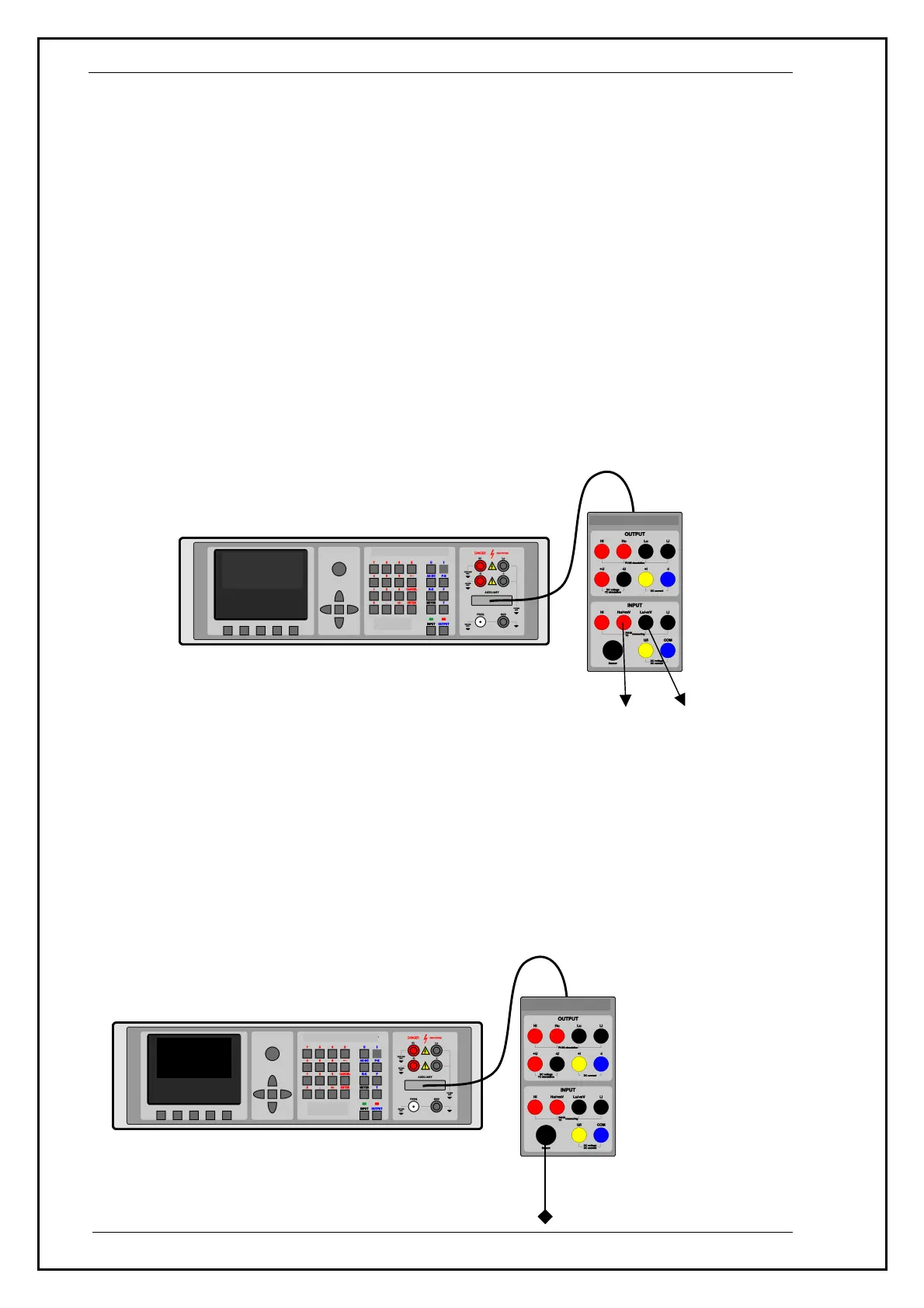

Connection of thermocouple to 140-41 cable adapter:
Strain gauge sensors for non-electrical values
The calibrator can be used to measure non-electrical values using bridge-connected strain gauges. The bridge is
supplied with DC voltage up to 15 V while measurement of small DC voltages between the other two points of
the bridge is measured. Each sensor is characterized by calibrated sensitivity of output voltage dependency on the
measured non-electrical value.
140-41 cable adapter fitted with separate 7pin connector labeled SENSOR is required. The picture shows the
connection of the sensor to the calibrator.
