Metrix CX 1651

Calibrateur multifonctions CX 1651
Manuel de l'utilisateur 169

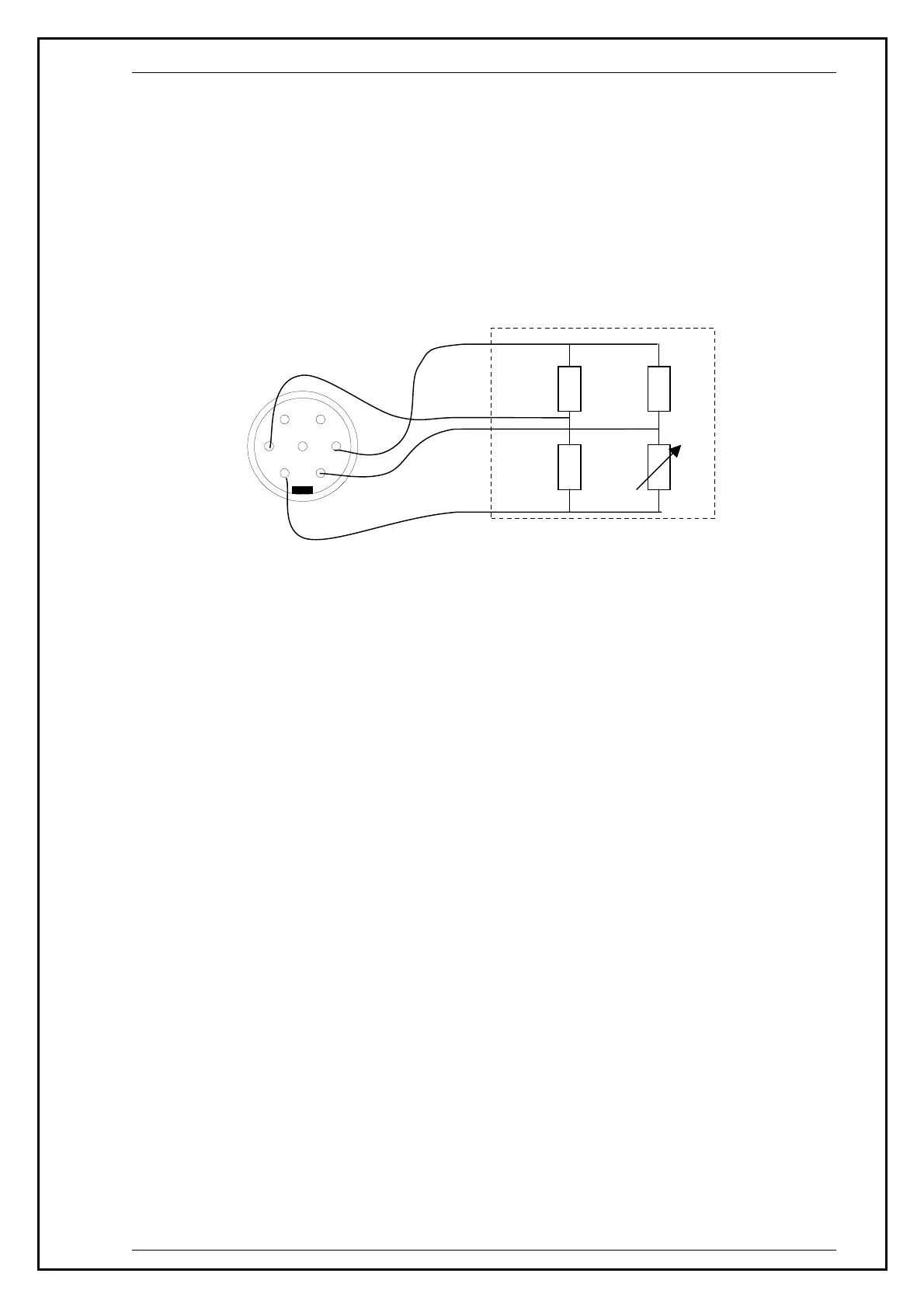

Connection of the sensor to SENSOR connector
Meaning of pins of SENSOR connector:
1 Voltage signal output of the bridge
2 Power supply + power to the bridge
3 Not connected
4 Not connected
5 Voltage signal output of the bridge
6 Power supply - power to the bridge
7 Shielding
SGS sensor
SENSOR connector
1
2
3
4
5
6
7
