Metrohm 930 Compact IC Flex - Figure 5 Metrohm Suppressor Module (MSM) - Connection Capillaries

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4 Installation
930 Compact IC Flex ChS/PP/Deg (2.930.1360)
￭￭￭￭￭￭￭￭
23

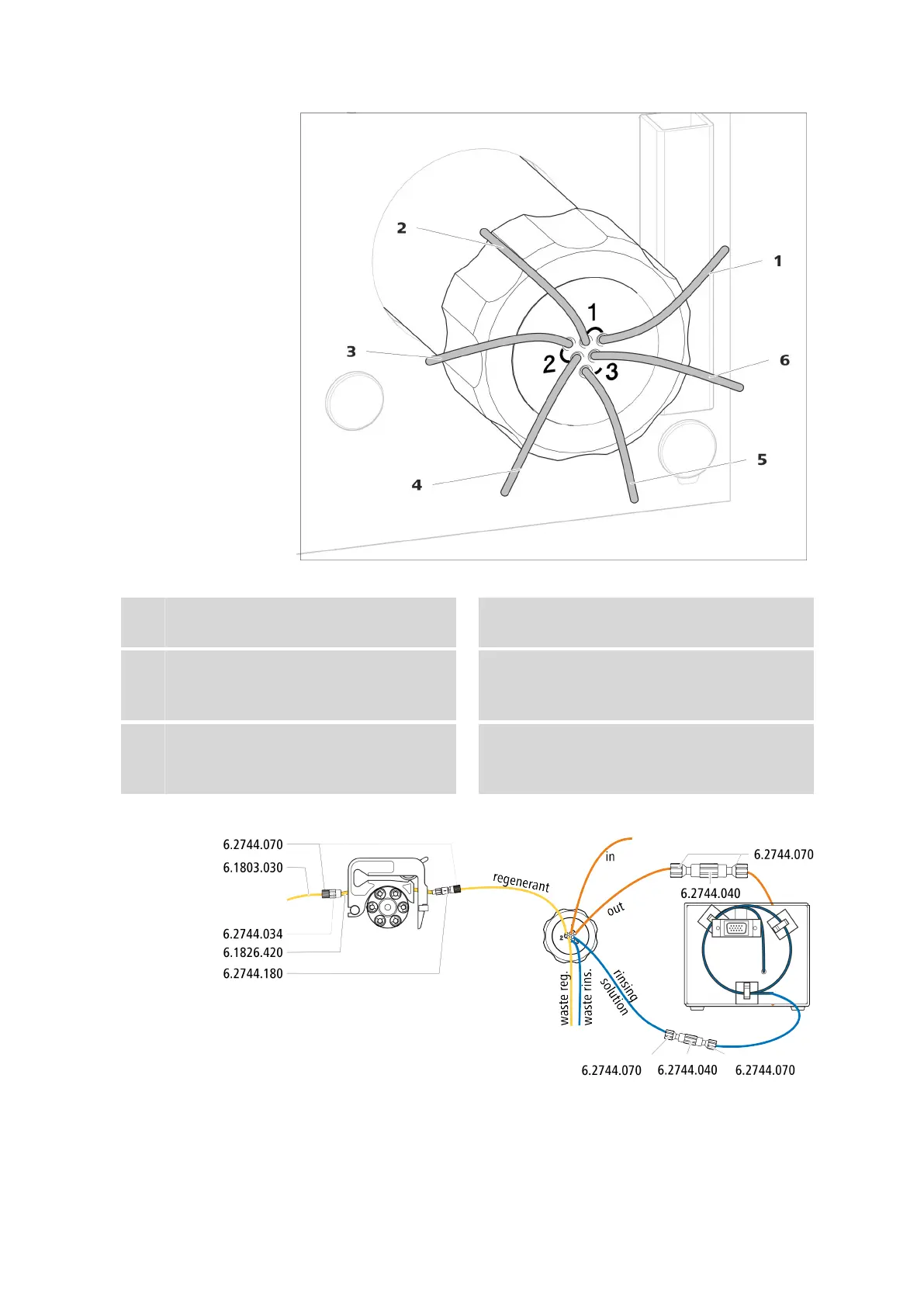

Figure 5 Metrohm Suppressor Module (MSM) – Connection capillaries
1
out
Outlet capillary for the eluent.
2
in
Inlet capillary for the eluent.
3
regenerant
Inlet capillary for the regeneration solution.
4
waste reg.
Outlet capillary for the regeneration solu-
tion; to the waste container.
5
waste rins.
Outlet capillary for the rinsing solution; to
the waste container.
6
rinsing solution
Inlet capillary for the rinsing solution.
Recommended installation
