CHAPTER 5: MG-MINA/LINA/750-LFC GRID
24

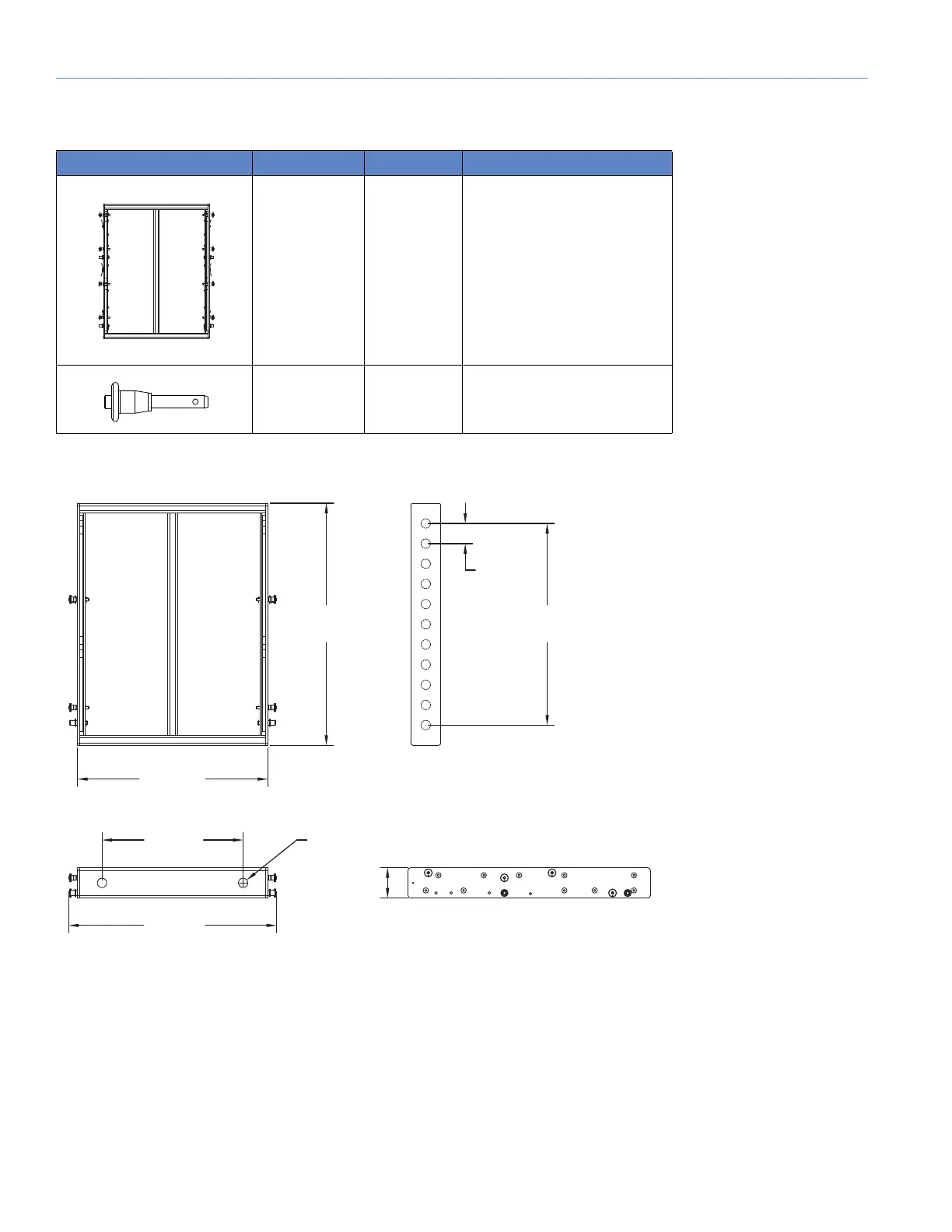

MG-MINA/LINA/750-LFC Grid Kit Contents
MG-MINA/LINA/750-LFC Grid Dimensions
MG-MINA/LINA/750-LFC Grid Weight: 34.7 lbs (15.74 kg)
Table 3: PN 40.207.101.01
Quantity Part Number Description
1 45.207.126.01 MG-MINA/LINA/750-LFC grid
8 134.036 0.25 in x 0.90 in
(black button with 6 in lanyard)
Figure 17: MG-MINA/LINA/750 Grid Dimensions
18.88 in
[479 mm]
20.62 in
[524 mm]
24.02 in
[610 mm]
14.00 in
[356 mm]
3.00 in
[76 mm]
20.00 in
[508 mm]
2.00 in
[51 mm]
15x Ø0.94
[ Ø24 mm]
