MG-MINA/LINA/750-LFC GRID ASSEMBLY GUIDE
47
GROUNDSTACKING LINAS ON THE 750-LFC
Up to five LINAs can be groundstacked on top of a single 750-LFC (when equipped with the MRK-750 rigging kit).
CAUTION: To further secure large groundstacks, particularly in outdoor installations with severe wind conditions,
attach tie-downs or weights to the grid along with a safety system directly to the groundstack.

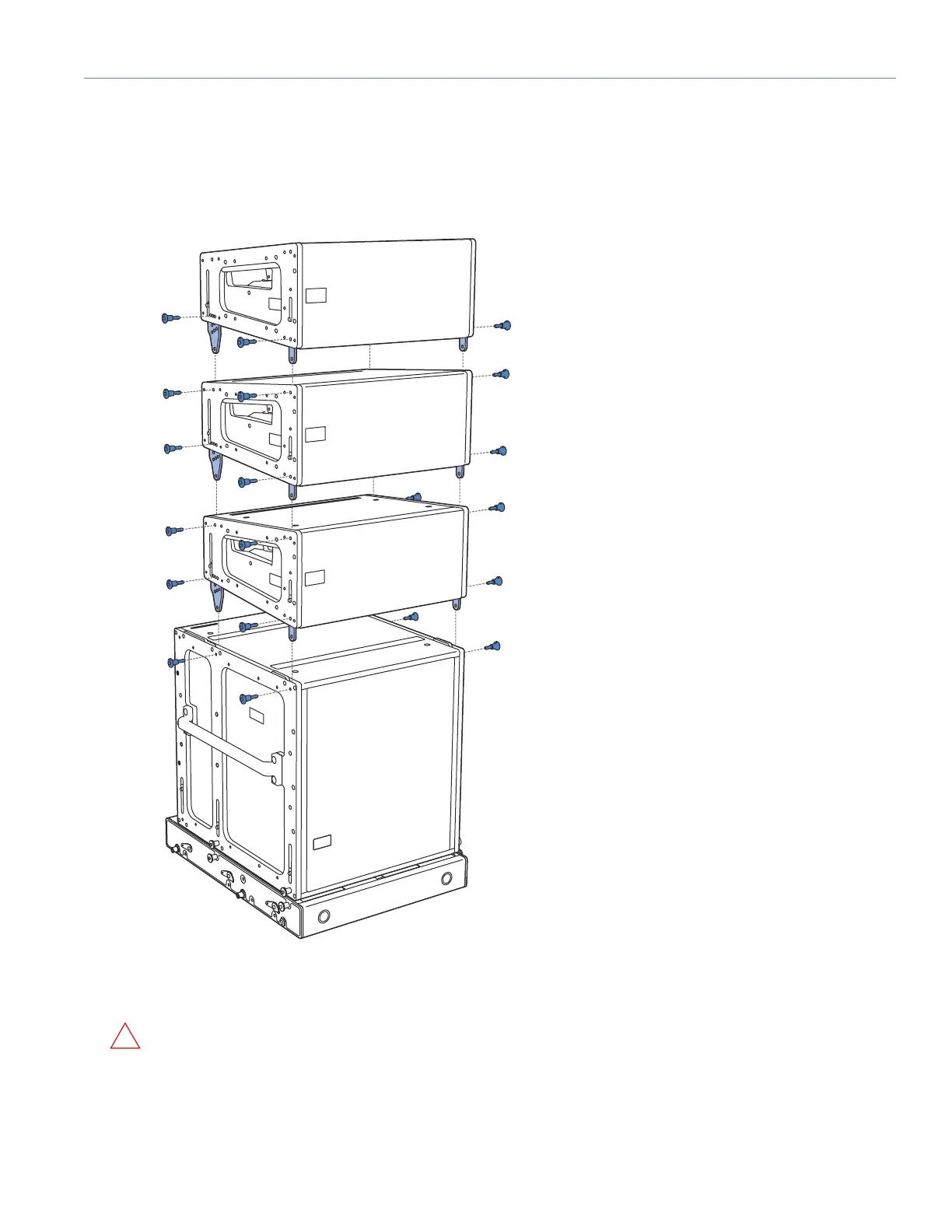

Figure 40: LINAs Groundstacked on 750-LFC, Exploded View
