DIMENSIONS: MCF-750 CASTER FRAME WITHOUT RIGGING
MCF-750 Caster Frame without Rigging Weight: 28.7 lbs (13.0 kg)
SAFETY GUIDELINES FOR THE MCF-750 CASTER FRAME
• Do not stack more than three cabinets on the MCF-750 caster frame.
• Use straps when transporting 750-LFCs that have not been fitted with the MRK-750 rigging kit.
• To avoid tipping, transport stacks with loudspeakers linked and locked at 0-degree splay angles.
• Forklifts should only be used to move the MCF-750 caster frame when cabinets have been outfitted with the MRK-750
rigging kit and the cabinets have been securely linked.
• When lifting a stack with a forklift, always keep the forks wide and close to the caster frame’s wheels. Failing to do so may
bend the caster frame or cause the stack to tip.
• When groundstacking 750-LFCs with the caster frame, make sure that all four caster wheels are blocked to prevent the
stack from rolling away.
• The caster frame must be removed before flying a loudspeaker array.

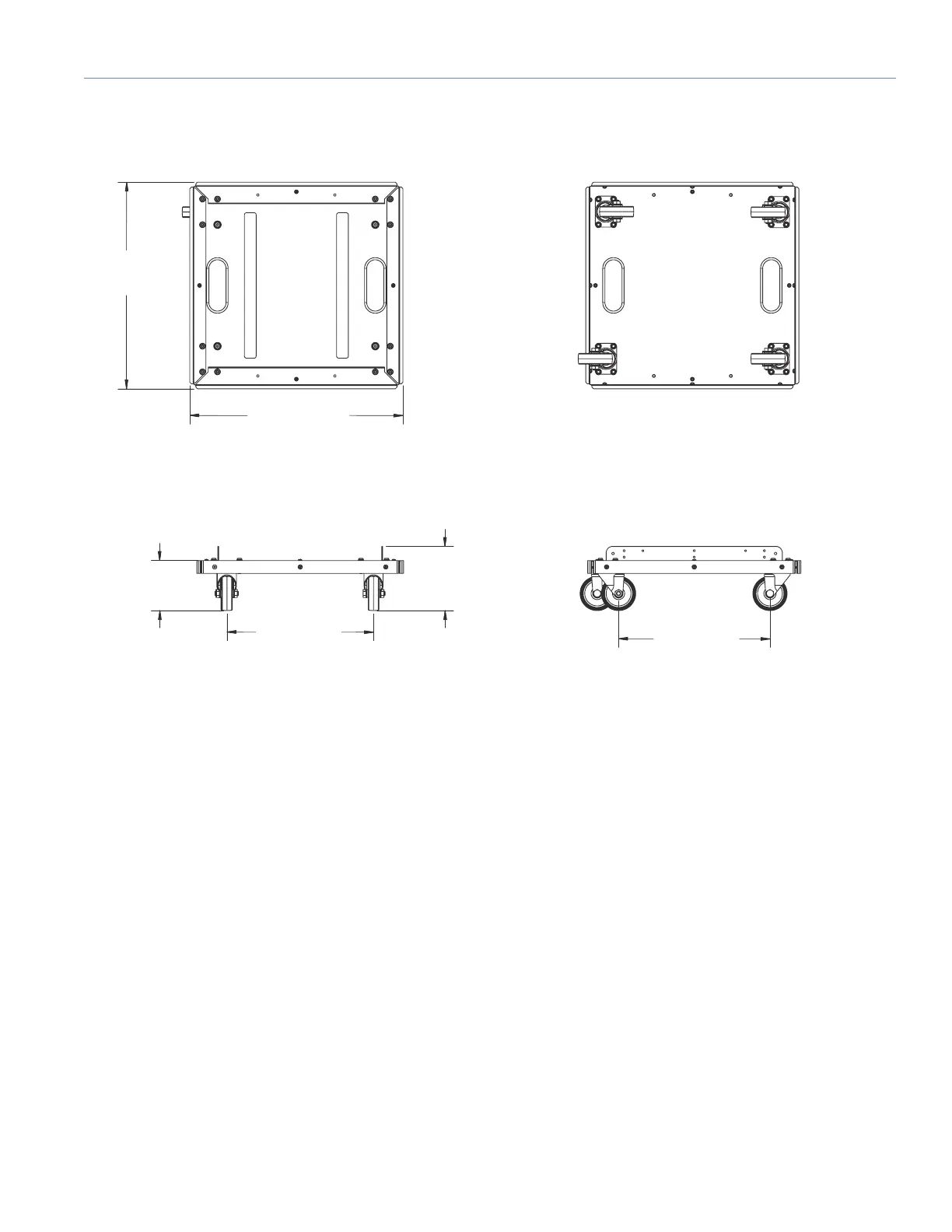

Figure 69: MCF-750 Caster Frame (for cabinets without rigging) Dimensions
24.16 in
[614 mm]
24.91 in
[633 mm]
17.14 in
[435 mm]
7.50 in
[190 mm]
5.85 in
[149 mm]
17.70 in
[450 mm]
