MG-MINA/LINA/750-LFC GRID ASSEMBLY GUIDE
53
MYA-MINA/LINA BRACKET OPTIONS
The MYA-MINA mounting yoke includes two side bracketing options: the MPA-2 for attaching to two cabinets, and the
MPA-3 for attaching to one or three cabinets. The bracket options allow the yoke to attach near the center of gravity for the
loudspeakers. The brackets bolt directly to the LINA end frames with the M6 bolts and washers included with the yoke kit;
for attaching to the yoke, the brackets include a center/pivot hole and three pinning holes to yield a wide range of uptilt and
downtilt angles for the loudspeakers.
MPA-2 Bracket
When suspending two LINA cabinets with the MYA-MINA/LINA mounting yoke, use the MPA-2 bracket (Figure 44) and
attach it to the bottom cabinet.
MPA-3 Bracket
When suspending one or three LINA cabinets with the MYA-MINA/LINA mounting yoke, use the MPA-3 bracket (Figure 45).
When suspending three cabinets, attach the bracket to the center cabinet (see Figure 47 on page 54).

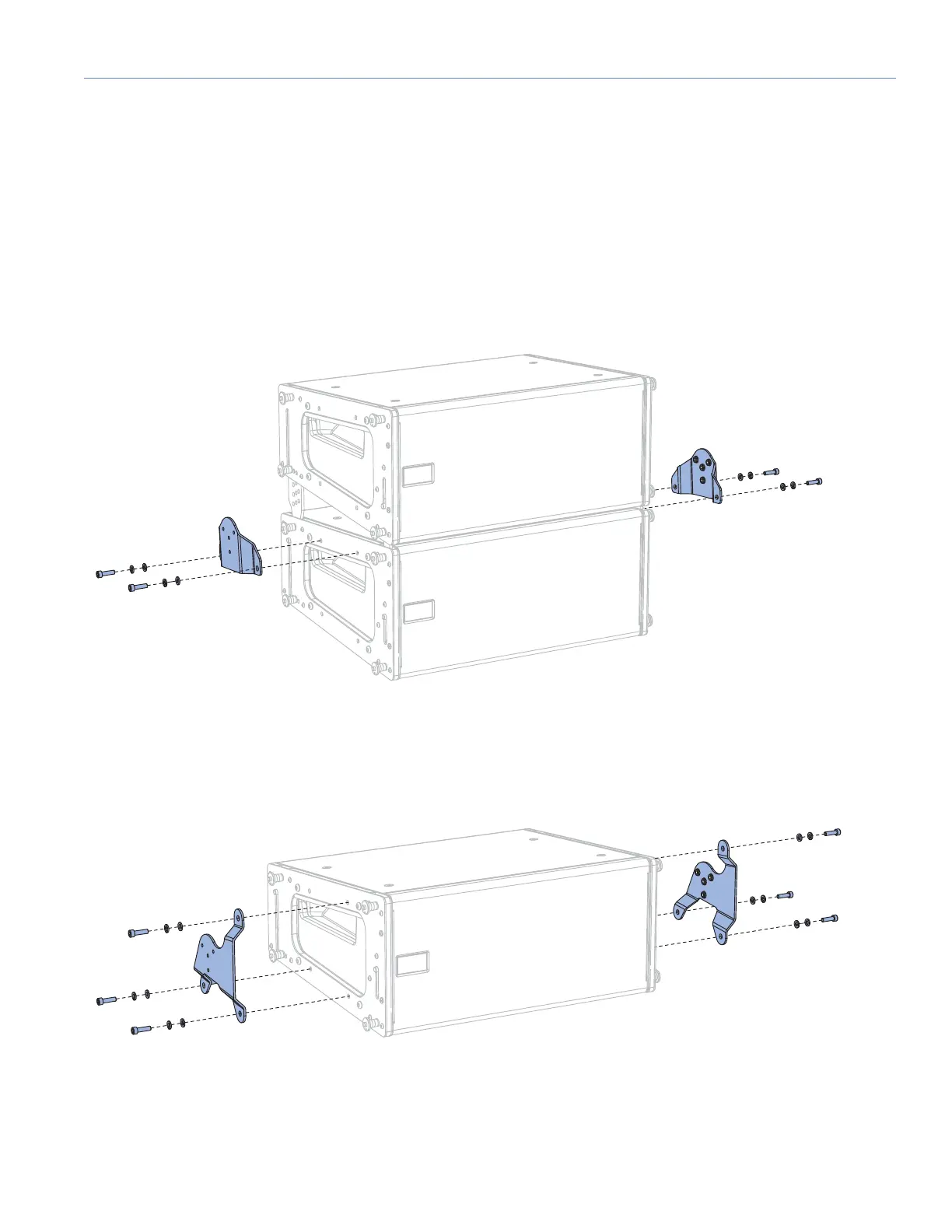

Figure 44: MPA-2 Bracket
Figure 45: MPA-3 Bracket
