49
CHAPTER 10: MYA-MINA/LINA MOUNTING YOKE
The MYA-MINA/LINA mounting yoke flies up to three LINA loudspeakers from a single hanging point, or pole-mounts up to
two LINA loudspeakers with a third-party pole-mount adapter. The yoke includes two bracketing options: the
MPA-2 bracket for attaching to two cabinets, and the MPA-3 bracket for attaching to one or three cabinets. For larger
arrays, the MG-MINA/LINA/750 grid is recommended (see Chapter 5, “MG-MINA/LINA/750-LFC Grid”); for smaller profile
applications, the MUB-MINA/LINA U-bracket is recommended (see Chapter 11, “MUB-MINA/LINA U-Bracket”).

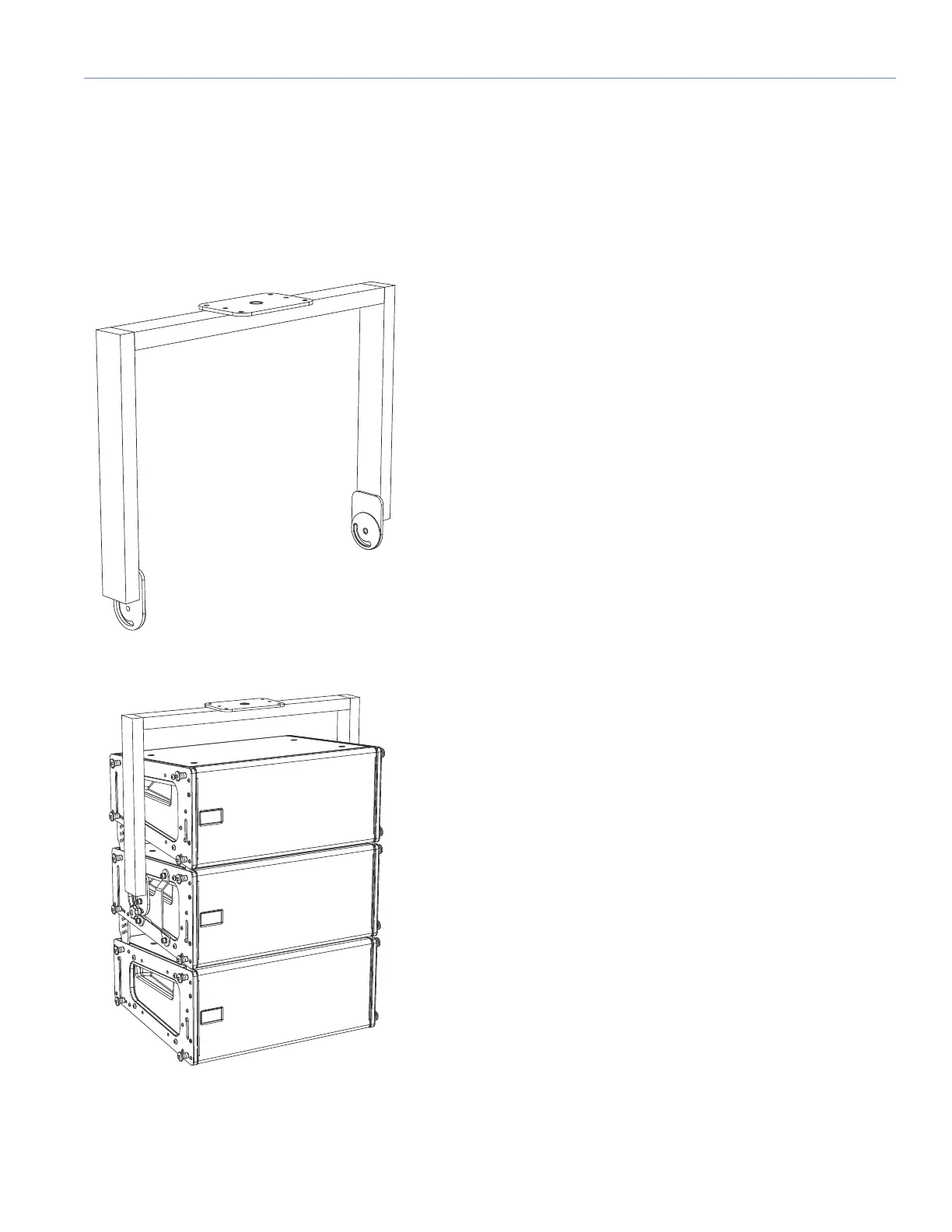

Figure 41: MYA-MINA/LINA Mounting Yoke
Figure 42: MYA-MINA/LINA Mounting Yoke with MPA-3 bracket and Three LINA Loudspeakers
