CHAPTER 14: MCF-750 CASTER FRAME
The MCF-750 caster frame safely transports up to three 750-LFCs, making it easy to assemble and disassemble arrays in
blocks of three cabinets. There are two versions available, one for MRK-750-equipped cabinets (PN 40.271.070.02), the other
for cabinets without rigging (PN 40.271.070.03). The caster frame’s sturdy construction allows it to be conveniently moved
with forklifts (when cabinets are equipped with the MRK-750 rigging kit only). The MCF-750 can also be used to support
750-LFCs in groundstacked configurations.
The caster frame includes four fixed, 0-degree link slots that attach to the cabinet at the bottom of the stack and are
secured with the quick-release pins (0.25 in x 0.90 in, black button with 6-inch lanyard, PN 134.036) included with the
750-LFC.

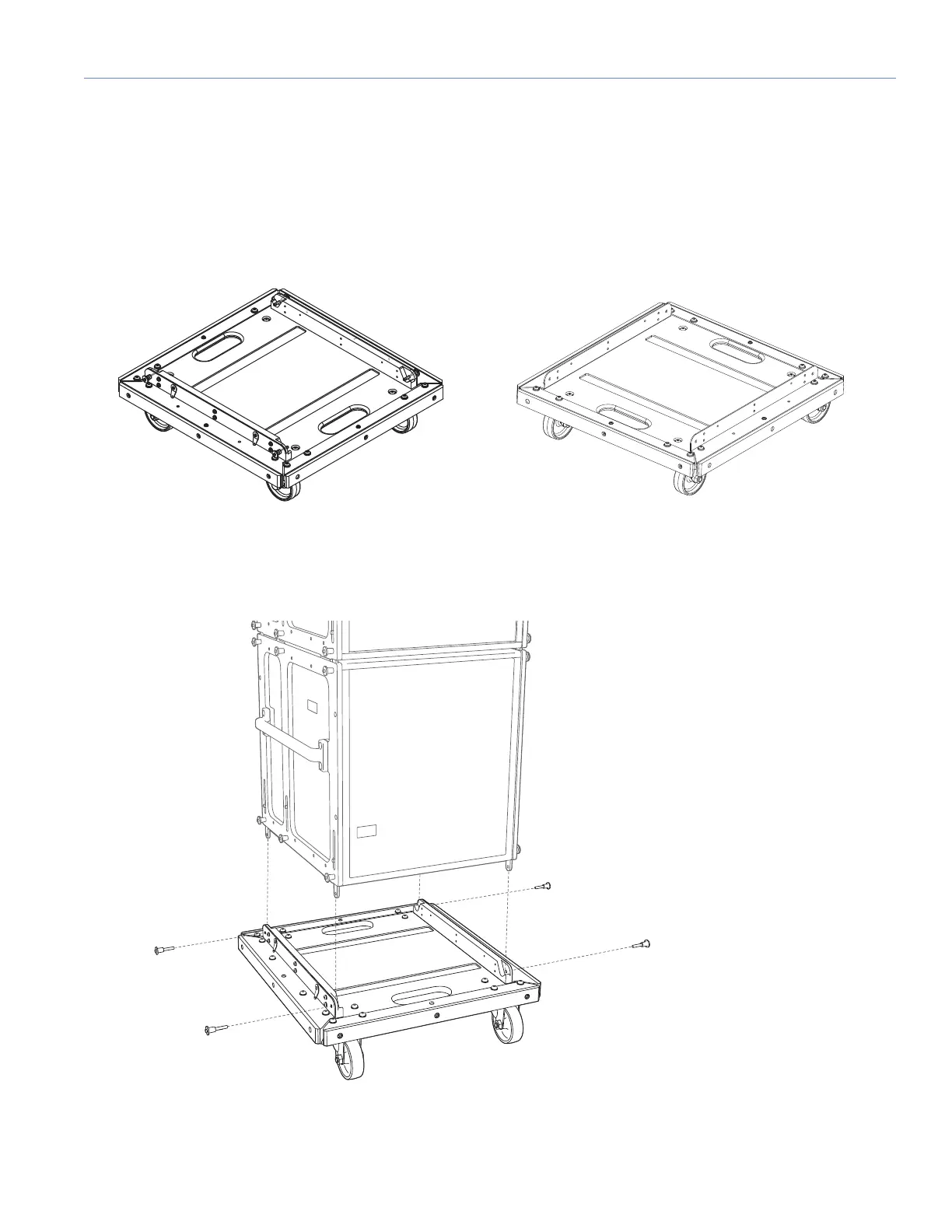

Figure 64: MCF-750 Caster Frame for cabinets with rigging (left) and without rigging (right)
Figure 65: MCF-750 Caster Frame with 750-LFC Stack, Exploded View
