MG-MINA/LINA/750-LFC GRID ASSEMBLY GUIDE
29
MG-MINA/LINA/750-LFC PICKUP CONFIGURATIONS
The MG-MINA/LINA/750-LFC grid accommodates a variety of pickup configurations with its front and rear pickup points
(two each) and 11 center pickup points. When possible, use the front and rear pickup points to change the tilt of the grid
with the front and rear motors. You can also bridle between pickup points for greater stability, as compared to single front
and rear pickup points.
CAUTION: Always use properly rated rigging hardware. 5/8-inch shackles are recommended for the
MG-MINA/LINA/750-LFC’s pickup points.
CAUTION: When using bridles between pickup points on the MG-MINA/LINA/750-LFC, the angle of the bridle
at the apex should not be greater than 90 degrees to avoid increasing the load on the bridles and damaging the
grid (Figure 23).
MG-MINA/LINA/750-LFC Pickup Configurations with Two Motors
The following examples show pickup configurations with two motors, and the maximum bridle apex angle.

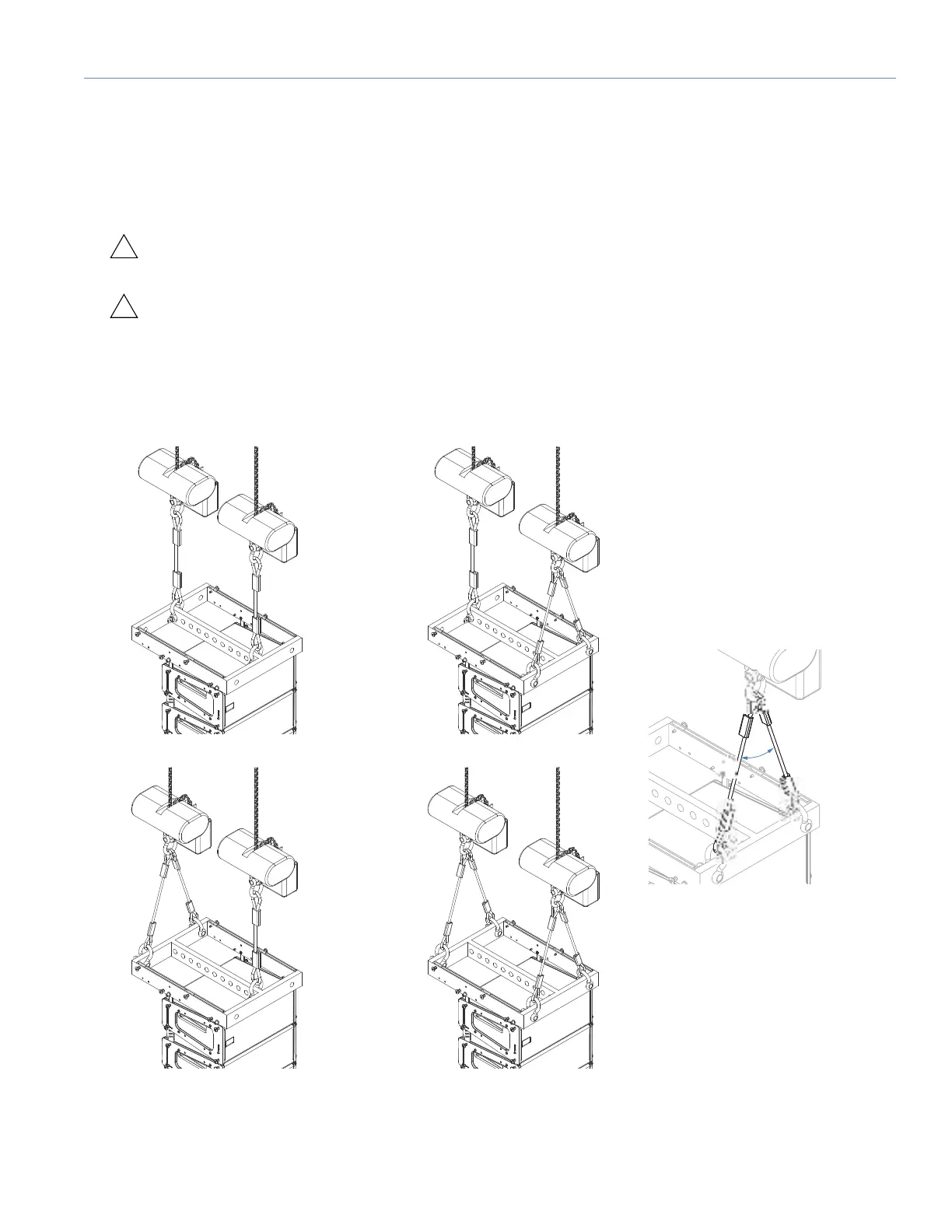

Figure 22: Examples of Pickup Configurations with Two Motors (left, middle) and Maximum Bridle Apex Angle (right)
Four attachment points, front and rear bridles
Two attachment points, front and rear center
Three attachment points, rear bridle
Three attachment points, front bridle
Bridle Apex Angle must be
90°
