CHAPTER 6: FLYING ARRAYS
28
MG-MINA/LINA/750-LFC Oriented for Maximum Array Uptilt
When the MG-MINA/LINA/750-LFC grid is oriented so the loudspeaker mounts closer to the rear of the grid, the array’s cen-
ter of gravity moves closer to the rear of the grid. The grid's front pickup points can be used to achieve maximum array
uptilt. The label on the MG-MINA/LINA/750-LFC shows this configuration as “Maximum Uptilt.” With the maximum uptilt ori-
entation, the LINA at the top of the array can be attached relative to the grid at –5 and –10 degrees (downtilt).
TIP: The tilt for the MG-MINA/LINA/750-LFC and the array below it can be adjusted with chain motors, or by
using differing lengths of wire rope or SpanSets.

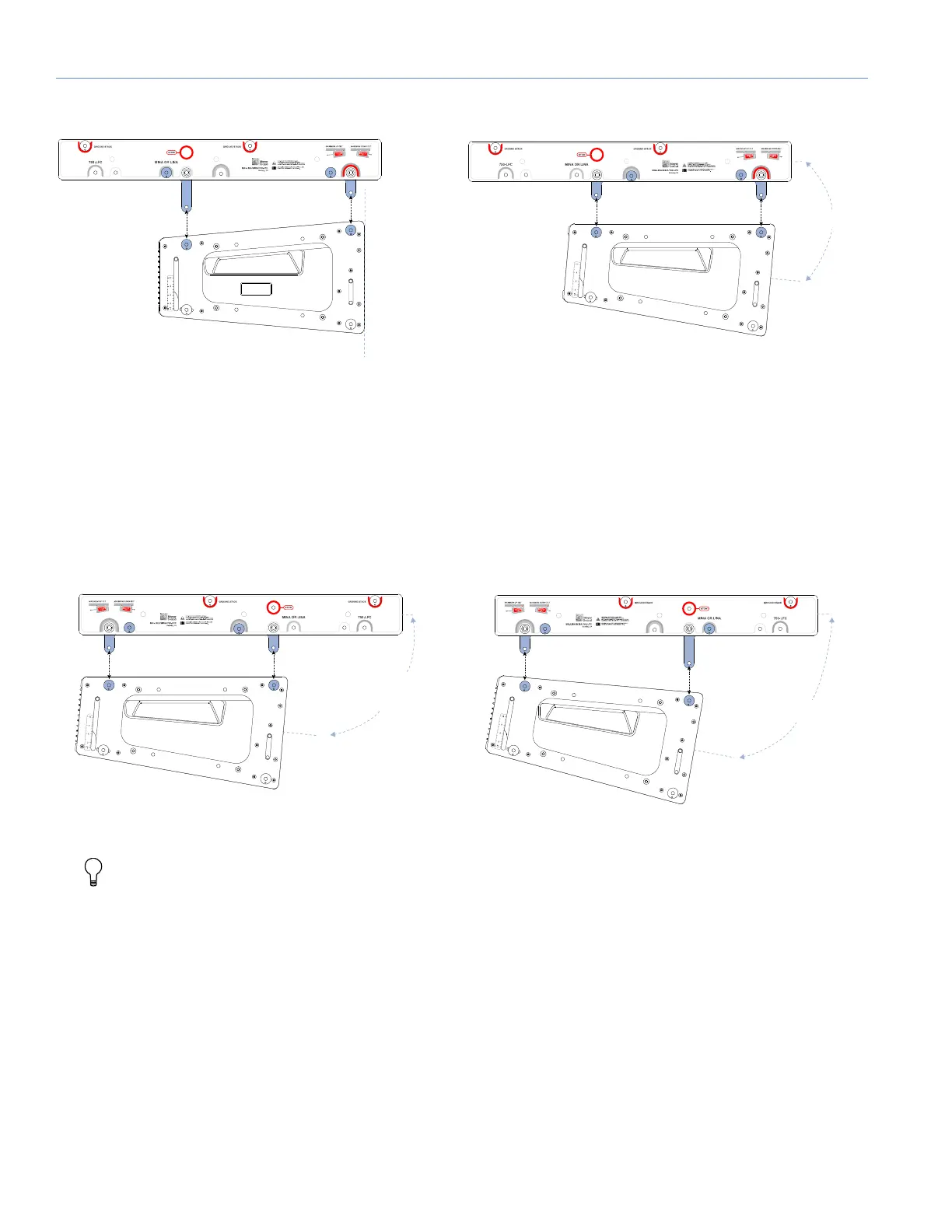

Figure 20: MG-MINA/LINA/750-LFC Grid, Maximum Downtilt Orientation, 0 and –5 Degrees
Figure 21: MG-MINA/LINA/750-LFC Grid, Maximum Uptilt Orientation, –5 and –10 Degrees
