MG-MINA/LINA/750-LFC GRID ASSEMBLY GUIDE
39
CAUTION: When configuring arrays with pull-back, when in final position, the pull-back chain should not be
more than ±10 degrees from vertical.
CAUTION: When flying arrays, the total weight of the array, including any pull-back and pull-up hardware,
should be calculated before the array is flown to verify its weight does not exceed the load ratings for the
MG-MINA/LINA/750-LFC grid. For more information, see “MG-MINA/LINA/750-LFC Grid Load Ratings” on page 25.
CAUTION: Always use properly rated rigging hardware. The PBF-LINA pull-back frame requires 1/2-inch
shackles for its pickup points.

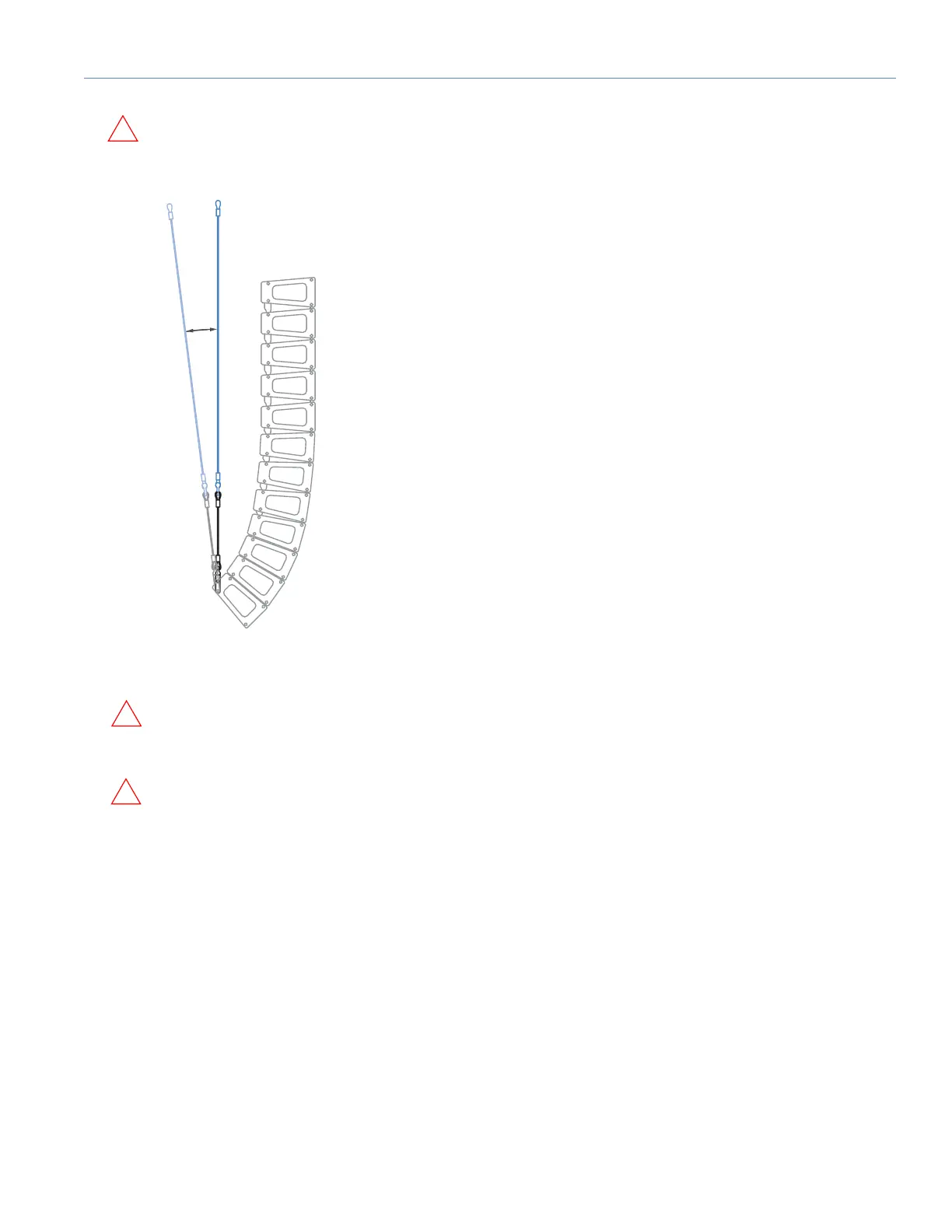

Figure 31: Limit on Pull-back Chain Deviation from 0 degrees vertical
