MG-MINA/LINA/750-LFC GRID ASSEMBLY GUIDE
45
With some restrictions, the MG-MINA/LINA/750-LFC grid safely groundstacks up to:
6 LINAs
5 LINAs on top of 1 750-LFC (mixed groundstack)
4 LINAs on top of 2 750-LFCs (mixed groundstack)
3 750-LFCs
NOTE: Use MAPP to verify designs and rigging configurations.

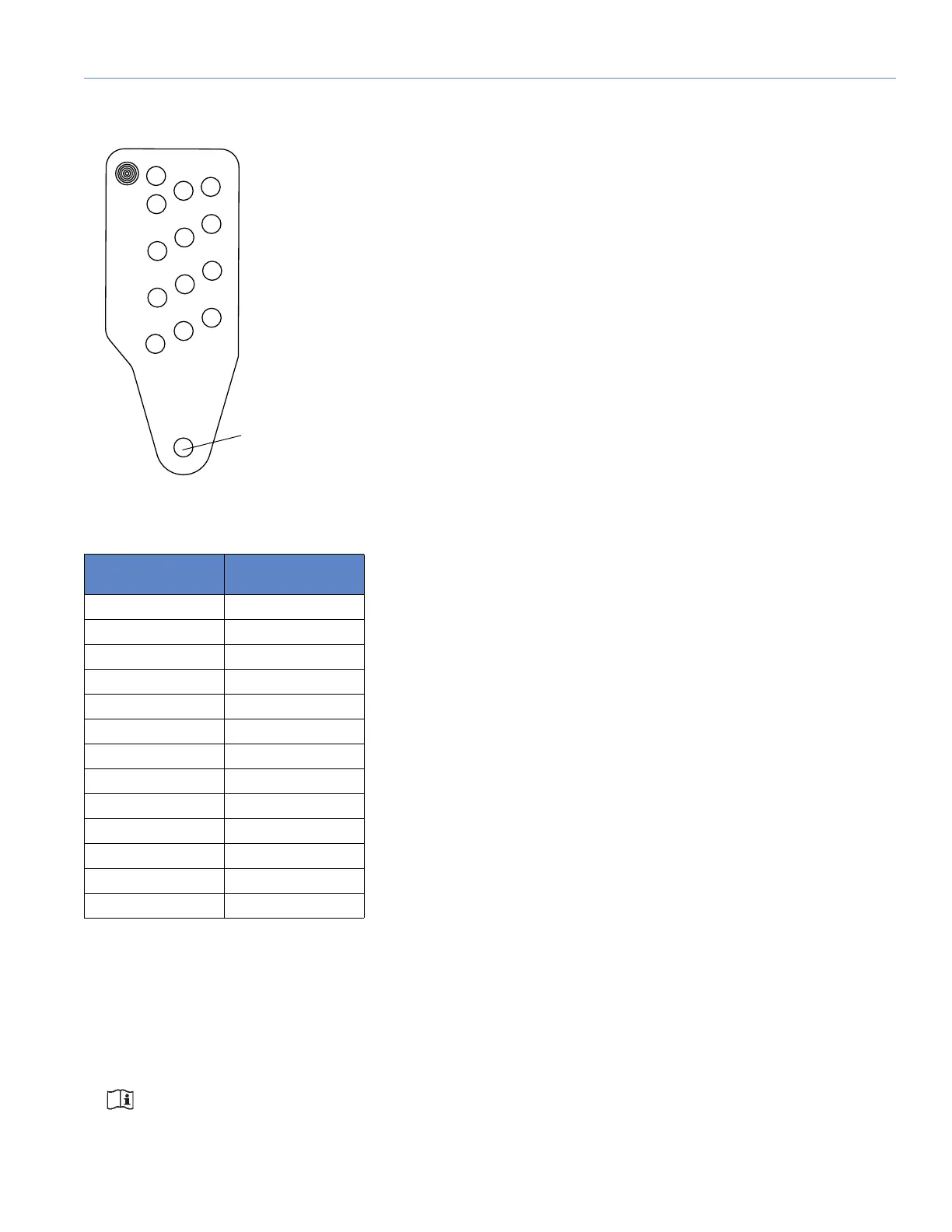

Figure 38: LINA Rear GuideALink Angles for Groundstacked Units
Table 7: MG-MINA Groundstack Angles
Rear GuideALink
Label Position
Actual Groundstack
Angle
0–5°
0.5 –4.5°
1–4°
2–3°
3–2°
4–1°
50°
6+1°
7+2°
8+3°
9+4°
10 +5°
11 +6°
-
4.5°
-2°
-1°
-3°
-5°
-4°
Stowed
