CHAPTER 11: MUB-MINA/LINA U-BRACKET
58
MUB-MINA/LINA Kit Contents
MUB-MINA/LINA Dimensions
MUB-MINA/LINA Weight: 5.8 lbs (2.63 kg)
Table 10: MUB-MINA/LINA Kit Contents (PN 40.207.030.01)
Part Number Quantity Description
45.207.030.01 1 MUB-MINA/LINA U-bracket
101.840 4 Screws, M6 x 1 x 22 mm
113.521 4 Flat washers, M6
115.531 4 Lock washers, M6

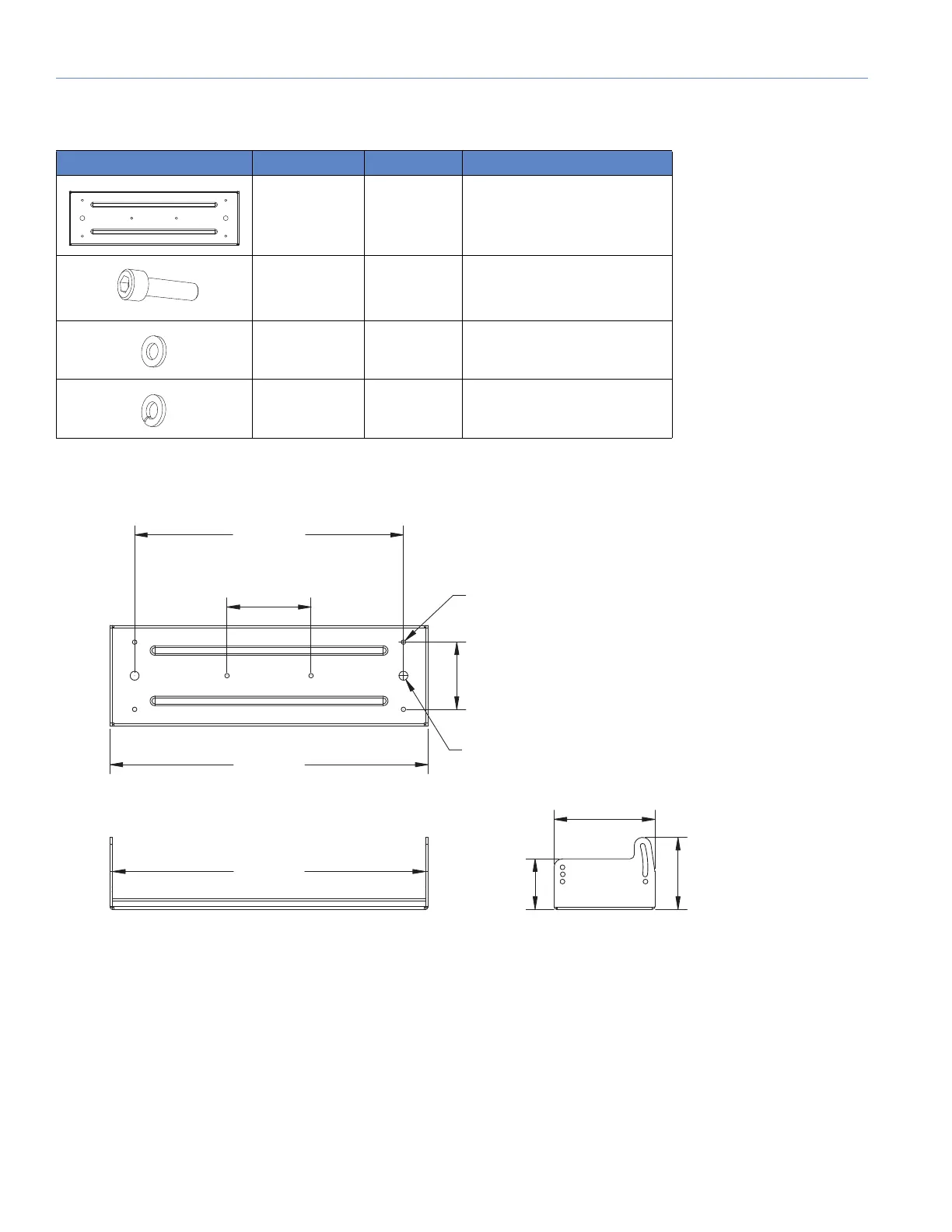

Figure 53: MUB-MINA/LINA Dimensions
18.92 in
[481 mm]
16.00 in
[406 mm]
4.00 in
[102 mm]
5.00 in
[127 mm]
4.28 in
[109 mm]
3.00 in
[76 mm]
6.00 in
[152 mm]
18.62 in
[473 mm]
(x2) Ø0.53 in
[Ø13 mm]
(x6) Ø0.27 in
[Ø7 mm]
