CHAPTER 11: MUB-MINA/LINA U-BRACKET
62

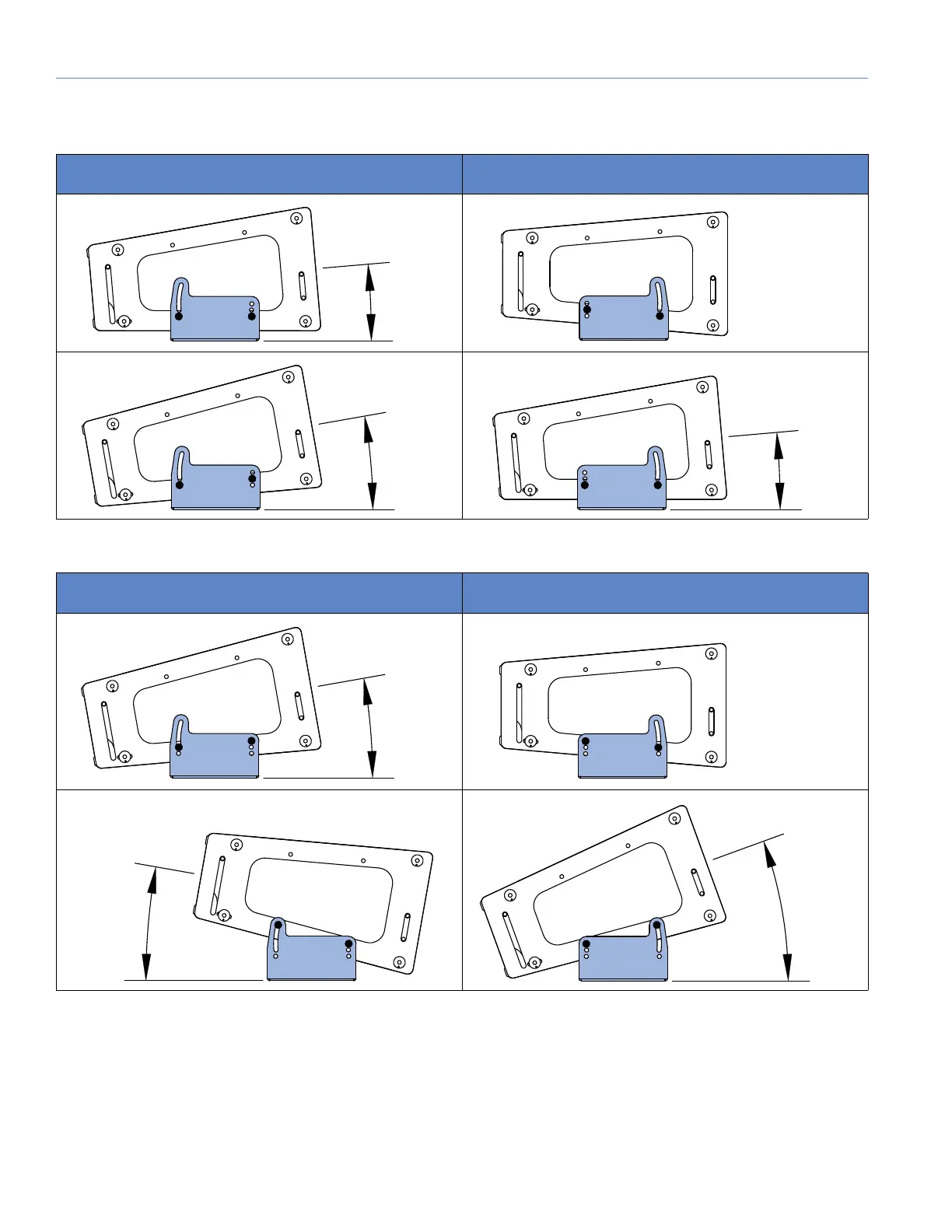

Table 14: MUB-MINA/LINA Floor/Pole-Mount, Fixed Angles
Flown/Pole-Mount, Maximum Downtilt
Fixed (+5°, +10°)
Floor/Pole-Mount, Maximum Uptilt
Fixed (0°, +5°)
Table 15: MUB-MINA/LINA Floor/Pole-Mount, Adjustable Angles
Floor/Pole-Mount, Maximum Downtilt
Adjustable (+10° to –10°)
Floor/Pole-Mount, Maximum Uptilt
Adjustable (0° to +20°)
+5°
0°
+10°
+5°
+10°
0°
-10°
+20°
