MG-MINA GRID ASSEMBLY GUIDE
81
TIP: As the flown array is assembled and raised, LINA’s front GuideALinks can rotate over 30 degrees forward
while pinned, facilitating the connection of the flown, angled array to the loudspeakers on the caster frame. Roll
the stack into position so the front GuideALinks align. Pin them, and then lower the array slightly so that the rear
GuideALinks can be pinned. Finally, unpin the caster frame from the lowest enclosure. Reverse the procedure when
striking the array.
CAUTION: Do not lift a LINA stack unless all four GuideALinks have been pinned for the top cabinet. Failing to
do so could damage the end frames or GuideALinks of the linked cabinets. Pinning only the front GuideALinks
should only be done when attaching a floor stack to a suspended array.

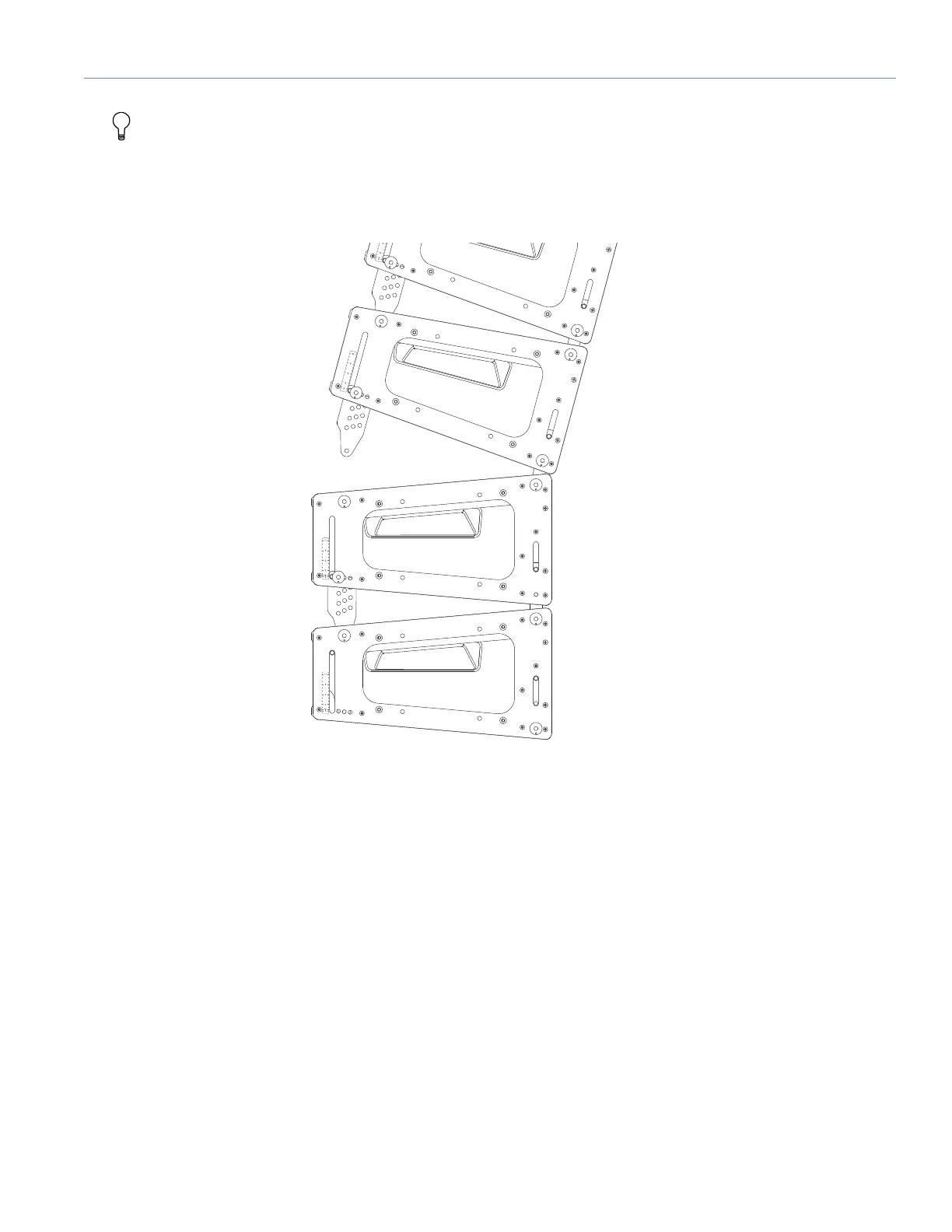

Figure 70: Assembling a LINA Array
