6.2 LIGHT HOOK-UP
Fifth Wheel Trailer Models: A 7 pin electrical socket (Item 1) is
provided to connect the electrical control plug from your truck.
This will operate signal, tail, clearance and brake lights.
Truck Mounted Models: A 4 pin electrical socket (Not Shown)
is provided to connect the electrical control plug from your
truck. This will operate signal, tail, clearance and brake lights.
NOTE: Depending on make and model of the truck, it may
be necessary to install a light converter. (Meyer part
#56-0028). The converter allows signal lights and
brake lights to operate according to DOT Lighting
Standards.
6.3 HYDRAULIC HOOK-UP
Tractor PTO Horsepower Requirements: The hydraulic
horsepower requirements may not reflect adequate tractor
size for towing the machine. Refer to tractor weight
requirements for these recommendations and safety section
for additional tractor and towing requirements.
Pull Type / Truck Mount / 5TH Wheel: Hydraulic input to the
9100 RT forage box requires 40 GPM @3500 PSI. If truck
mounted / 5TH wheel, install a relief valve set at 3500 PSI. An
in-line pressure gauge has been provided for system pressure
reference (Item 1). Engine RPM should be 1500 RPM. Set up
hydraulic system using a 45-50 gallon reservoir with 40 gallons
of hydraulic oil minimum. Call the factory for further
information.
Connect the hydraulic pressure (Wet Kit) and the return line to the pressure line (Item 2) and return line (Item 3) of the
forage box.
Truck Mount Models: A 3/4” NPT female connection point provided.
Fifth Wheel Trailers: A 1-5/16”-20 Male JIC connection point provided.

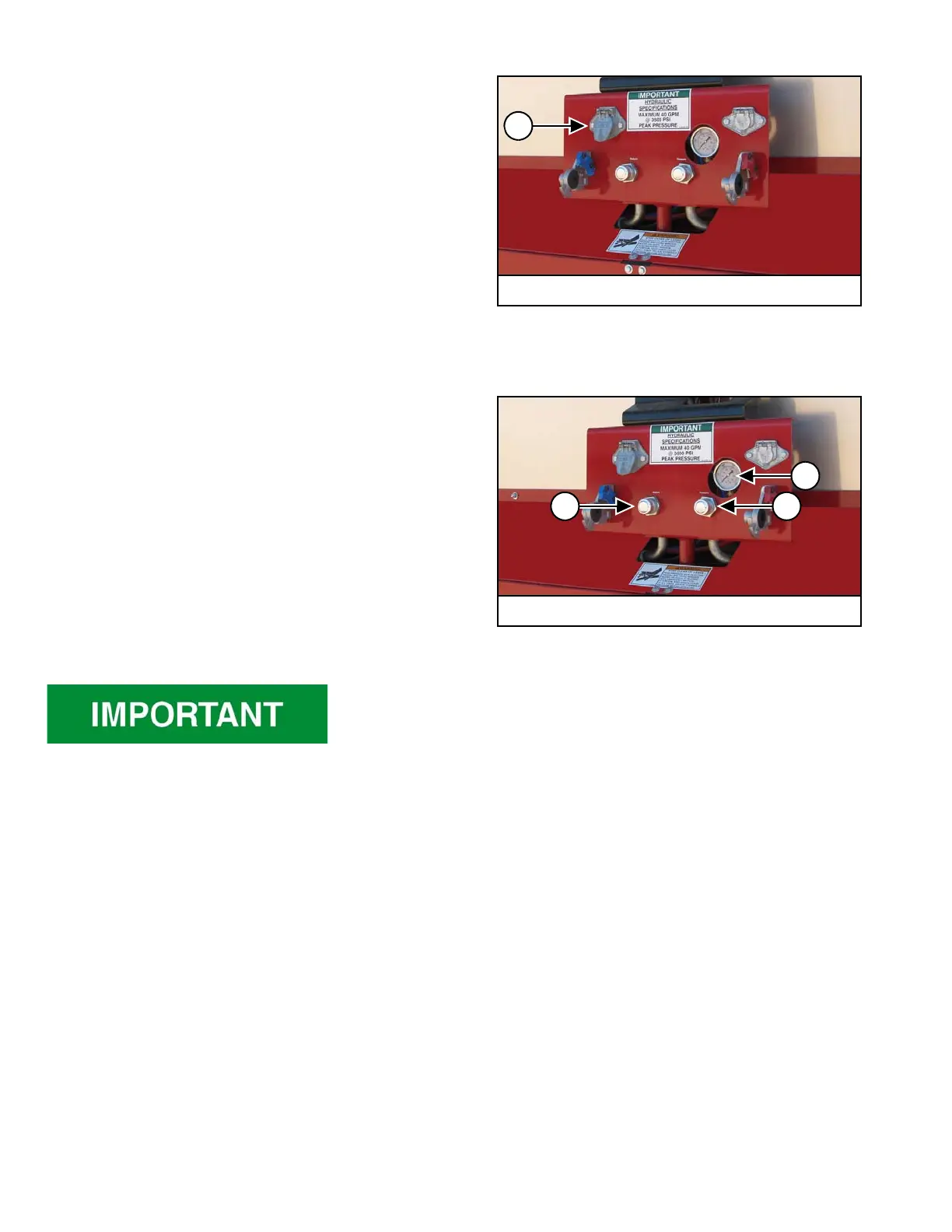

Fifth Wheel Trailer Option Shown
1
Fifth Wheel Trailer Option Shown
1
3
2
Do not exceed maximum PSI or a motor failure could result.
