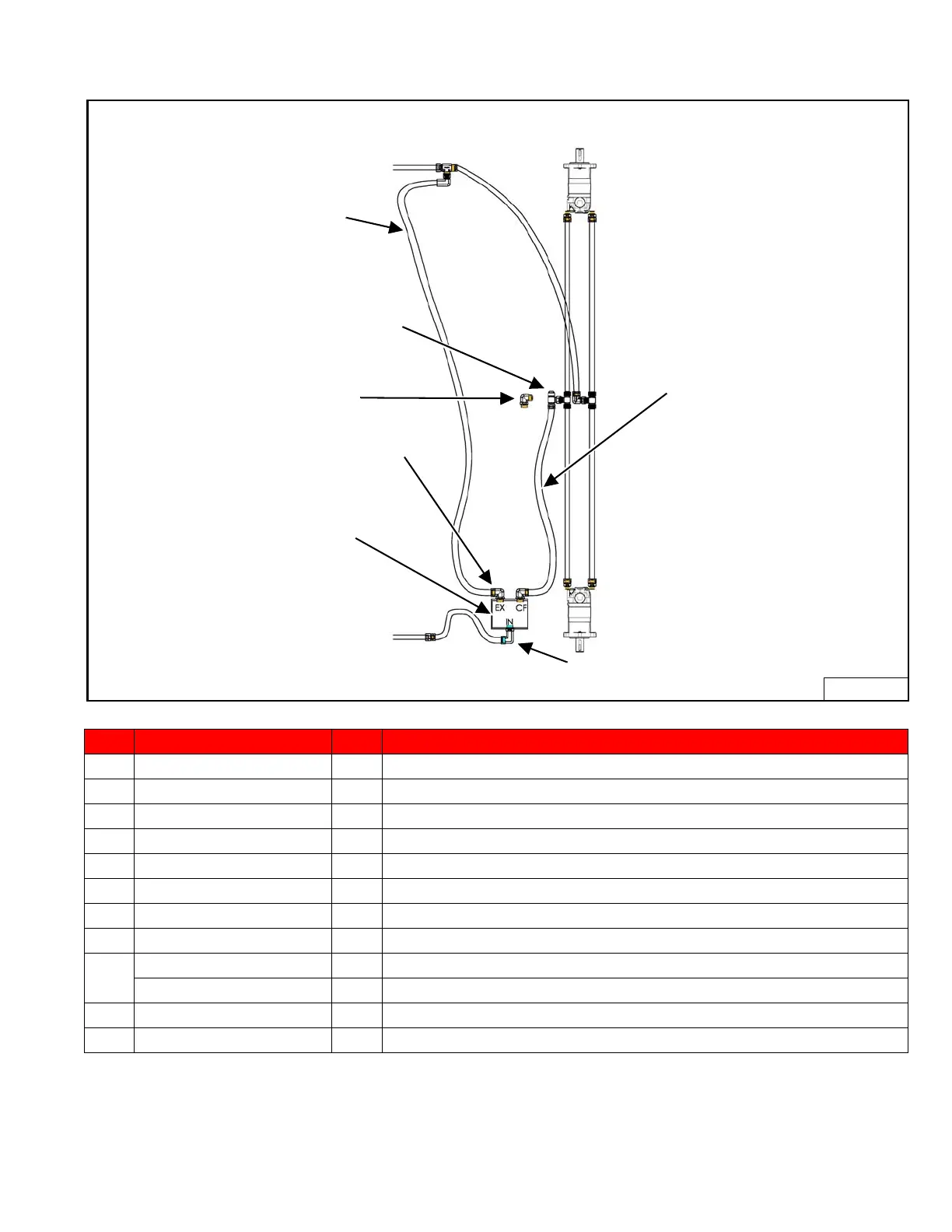

DUAL DRIVE 1” FLOW CONTROL SYSTEM 5TH WHEEL AG TRAILER
KEY PART NUMBER QTY DESCRIPTION
1 100-8126-27 1 Flow Control Mount Bracket (1” Flow Control)
2 155-16EFG4K-41.5-1 1 1” x 41.5” Hydraulic Hose
3 155-16100R16-97-1 1 1” x 97” Hydraulic Hose
4 955-0154-L 1 1” 90° Elbow JIC To O-Ring, Long
5 155-6801-16 2 1” 90° Elbow JIC To O-Ring
6 155-FC51-16SAE 1 1” Flow Control
7 810-3816-Z 2 3/8” Spin Lock Nut
8 815-3118-Z 4 5/16” Nylon Lock Nut
9 851-3118-4Z 2 5/16” x 4” Bolt
851-3118-4.5Z 2 5/16” x 4-1/2” Bolt
10 851-3816-1Z 2 3/8” x 1” Bolt
11 805-0031-Z 2 5/16” Flat Washer
RT-036A
3
5
2
1, 6, 7, 8, 9, 10, 11
4
RETURN
PRESSURE
Return Gate Delay
Pressure Gate Delay
