Meyer 9100 BOSS RT - Rear Bumper

Meyer Manufacturing Corporation - 70 - 9100RT

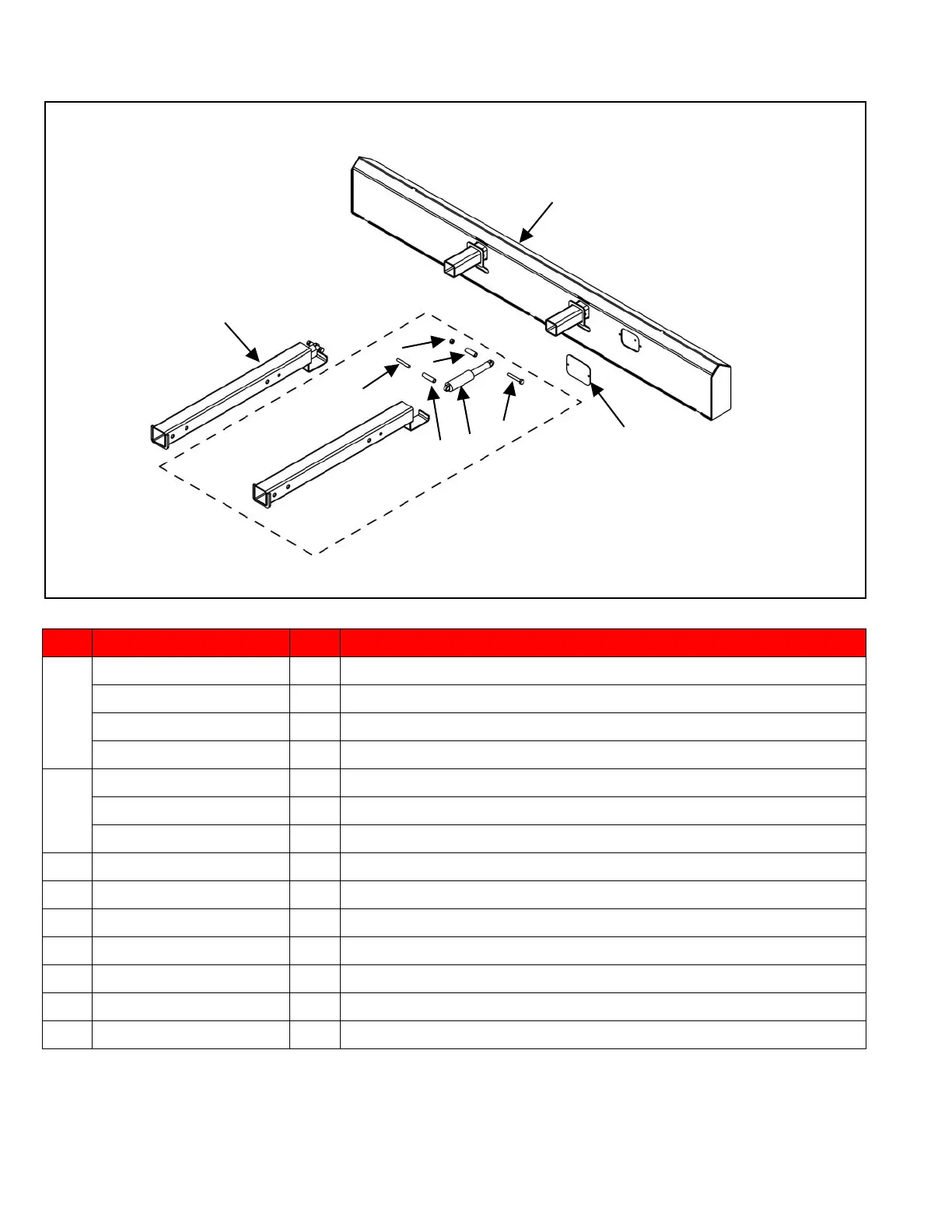

REAR BUMPER
KEY PART NUMBER QTY DESCRIPTION
1 100-9201-2 1 Standard/Setback Axle Rear Bumper (With Lights)
100-9201-5 1 Standard/Setback Axle Rear Bumper (Without Lights)
100-9202-2 1 Air Ride Rear Bumper (With Lights)
100-9202-5 1 Air Ride Rear Bumper (Without Lights)
2 100-9201-8 2 Standard Bumper Arm Assembly
100-9201-9 2 Setback Axle Bumper Arm Assembly
100-9202-4 2 Air Ride Bumper Arm Assembly
3 100-9201-3-3 2 Bumper Shock Pin
4 100-9201-6 2 Bumper Shock Spacer
5 814-5013-Z 2 1/2” Indented Lock Nut
6 100-9201-7 2 Bumper Shock Spacer
7 155-S-0001 2 Shock With Spring Assist
8 851-5013-3.5Z 2 1/2-13 x 3-1/2” Machine Bolt
9 100-9201-4 1 Bumper Cover Plate
1
2
5
6
4
3
7
8
9
