Meyer 9100 BOSS RT - Hydraulic Return Line Gate Delay

Meyer Manufacturing Corporation - 52 - 9100RT

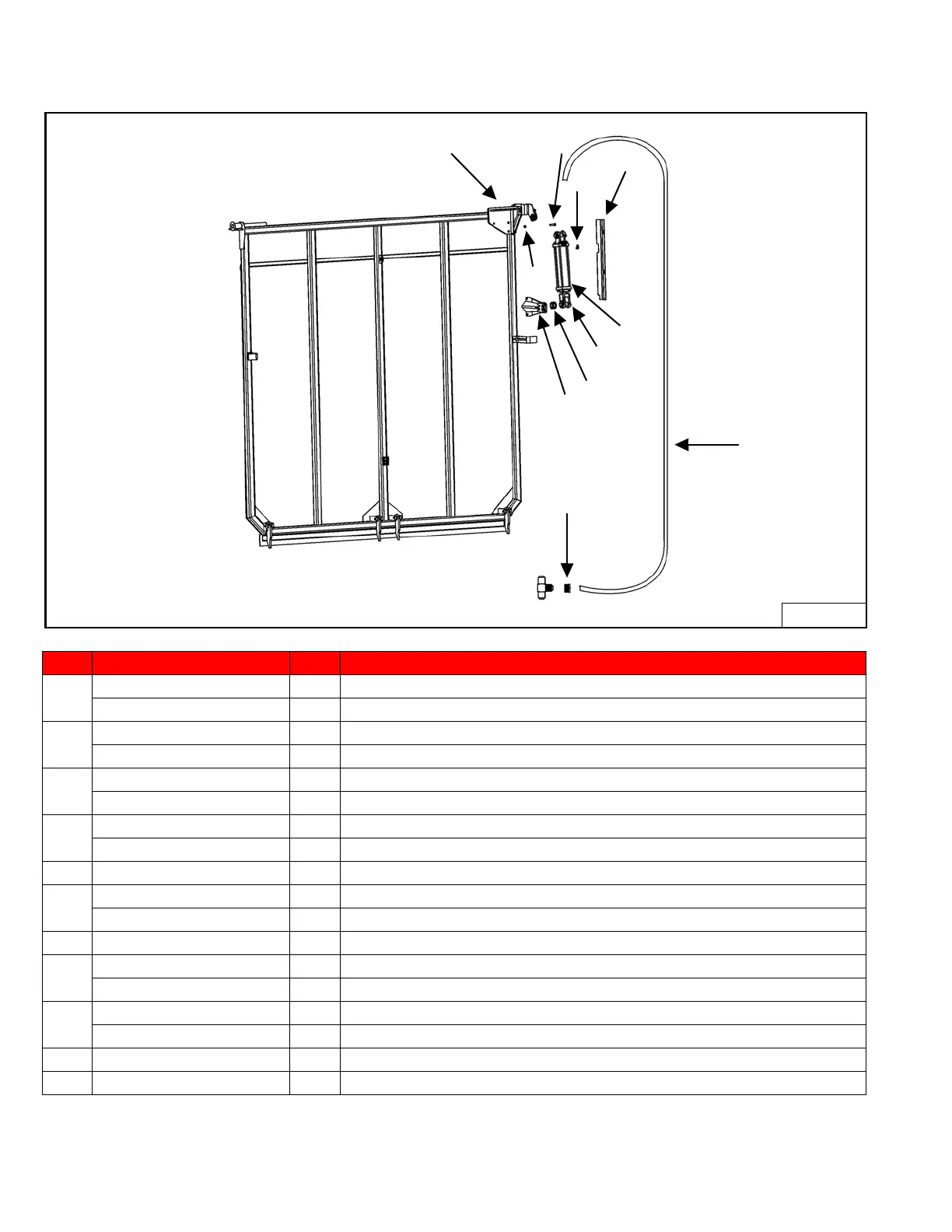

HYDRAULIC RETURN LINE GATE DELAY
PRIOR TO SN 1591263
KEY PART NUMBER QTY DESCRIPTION
1 155-5406-12-6 1 3/4” x 3/8” Reducer (Truck Mount / Ag Cart)
55-0219 1 3/8” x 1/2” 90 Degree Adapter Fitting (5th Wheel Trailer)
2 155-06R12-200-1 1 3/8” Hydraulic Hose x 200” Long (Truck Mount / Ag Cart)
155-06100R16-150-1 1 3/8” Hydraulic Hose x 150” Long (5th Wheel Trailer)
3 55-0055 1 3/8” x 3/8” 90 Degree Street Elbow (Truck Mount / Ag Cart)
55-0055 1 3/8” Swivel Fitting (5th Wheel Trailer)
4 155-2.5-10-1.125-1 1 2.5” x 10” Hydraulic Cylinder (Truck Mounted / 5th Wheel Trailer)
155-2-10-1.125-1 1 2” x 10” Hydraulic Cylinder (Ag Cart Mounted)
5 55-0307 1 3/8” Breather Vent
6 24-8013 1 Hose Shield For Standard Gate (No Extension)
24-8012 1 Hose Shield For High Gate (With Extension)
7 25-8451 1 Lower Gate Delay Mounting Bracket
8 25-8450 1 Upper Gate Delay Mounting Bracket (Prior to SN 1391259)
25-8453 1 Upper Gate Delay Mounting Bracket W/Shear Bolt (SN 1391259 Through 1591263)
9 25-8097-1 AR AR Spacer Washer
808-1.31-2.00-.135 AR AR Spacer Washer
10 851-3816-1.75Z 1 3/8”-16 x 1-3/4” Bolt
11 815-3816-Z 1 3/8” Nylon Locknut
RT-026
1
2
8
11
10
3
6
4
9
7
5
