Meyer 9100 BOSS RT - Double Door Hydraulic System

Meyer Manufacturing Corporation - 74 - 9100RT

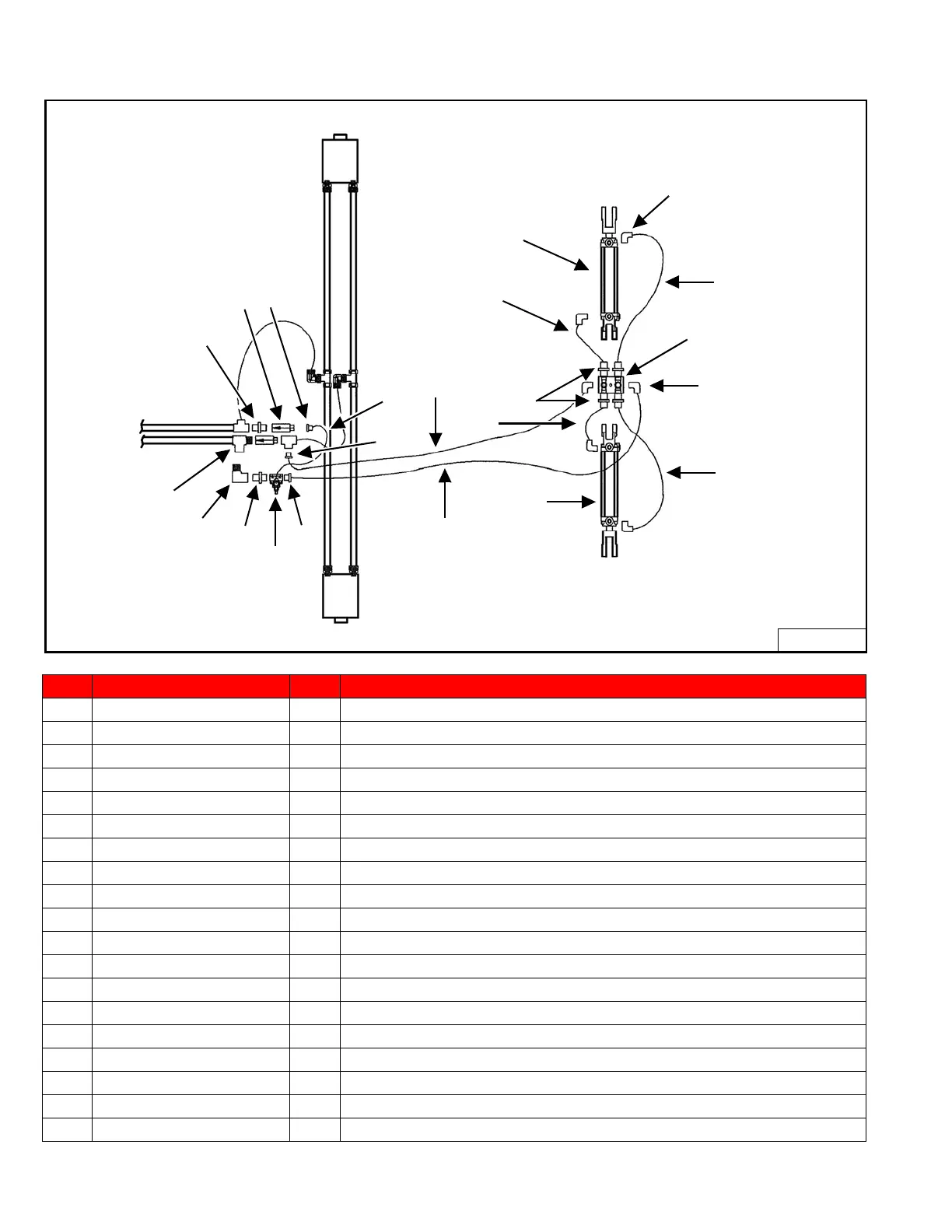

DOUBLE DOOR HYDRAULIC SYSTEM
KEY PART NUMBER QTY DESCRIPTION
1 155-5602-12-12-12 1 3/4” Tee Fitting
2 55-0082 1 3/4” 90 Degree Elbow
3 55-0156 1 1/2” To 3/4” Adapter Fitting
4 55-0304 1 Relief Valve 650 PSI
5 155-5406-8-4 1 1/2” To 1/4” Reducer Bushing
6 55-0202 1 1/4” x 228” Hydraulic Hose
7 55-0191 2 1/4” 90 Degree Elbow
8 57-0057 1 Hydraulic Manifold
9 155-1404-4-4 4 1/4” Swivel Adapter Fitting
10 155-4G2-37.75-1 2 1/4” x 37-3/4” Hydraulic Hose
11 55-0196 4 1/4” x 3/8” 90 Degree Elbow
12 155-6G2-23.75-1 2 3/8” x 23-3/4” Hydraulic Hose
13 155-6G2-228-1 1 3/8” x 228” Hydraulic Hose
14 155-5406-12-6 1 3/4” x 3/8” Reducer Bushing
15 155-8G2-36-1 1 1/2” x 36” Hydraulic Hose
16 55-0039 1 3/4” x 1/2” Reducer Bushing
17 55-0007-B 1 3/4” Check Valve (5 PSI Crack Pressure)
18 55-0204 1 3/4” Adapter Fitting
19 55-0227 2 2” x 10” Hydraulic Cylinder
RT-006
DUAL DRIVE
Return Line
Pressure Line
10
11
19
12
9
7
8
6
13
19
12
10
15
16
17
18
14
1
2
3
4
5
FRONT
