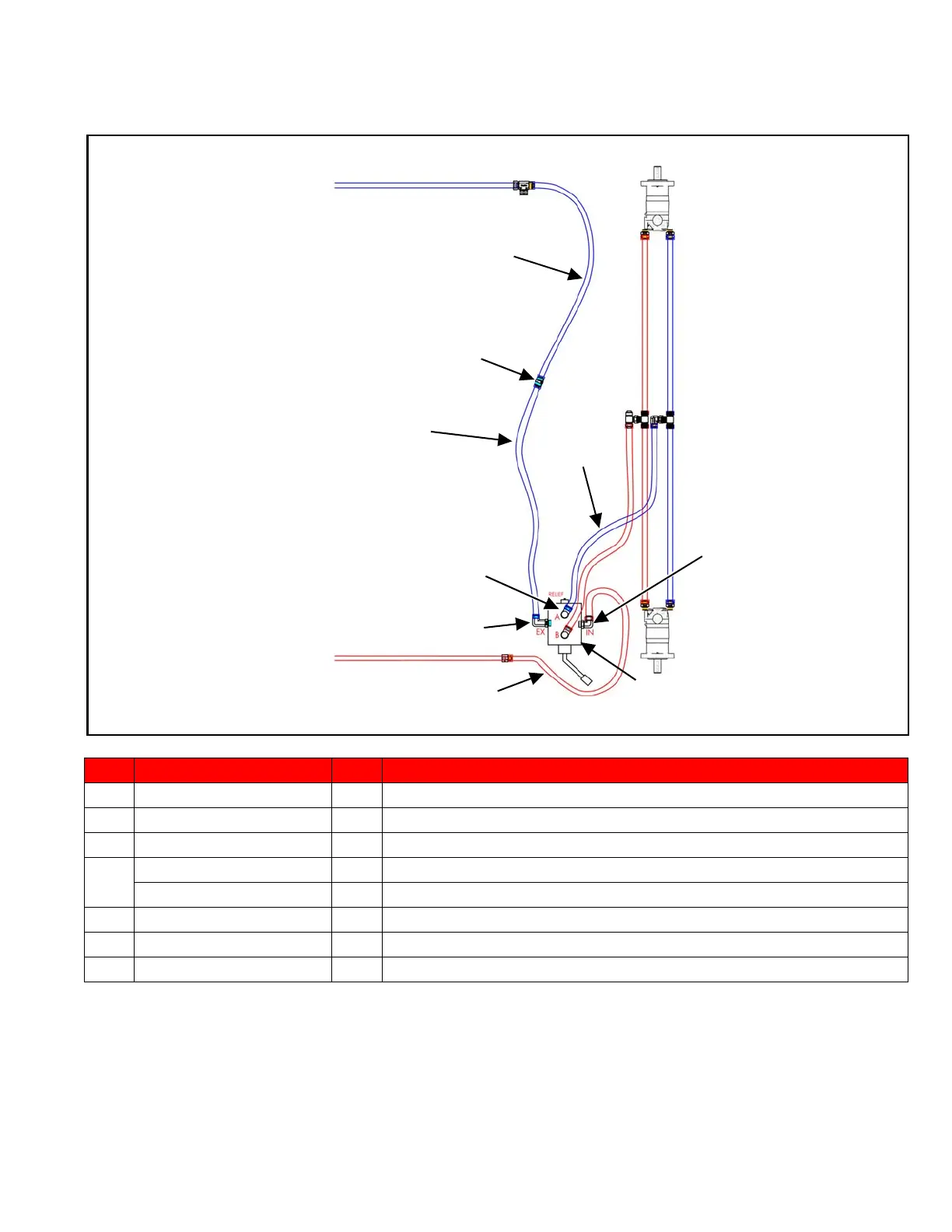

REVERSE APRON HYDRAULIC SCEMATIC
KEY PART NUMBER QTY DESCRIPTION
1 155-16100R12-75-1 2 1” Hydraulic Hose x 75” Long
2 155-2403-16 1 Straight Hydraulic Hose Union
3 155-16EFG4K-41.5-1 3 1” Hydraulic Hose x 41-1/2” Long
4 55-0299 1 Reverse Apron Valve
100-8126-28 1 Reverse Apron Mount Bracket
5 155-6801-16-12 2 90 Degree Adjustable Elbow
6 155-6801-16 1 90 Degree Adjustable Elbow
7 155-6801-16 1 90 Degree Adjustable Elbow
1
2
3
4
5
6
7
1
3
