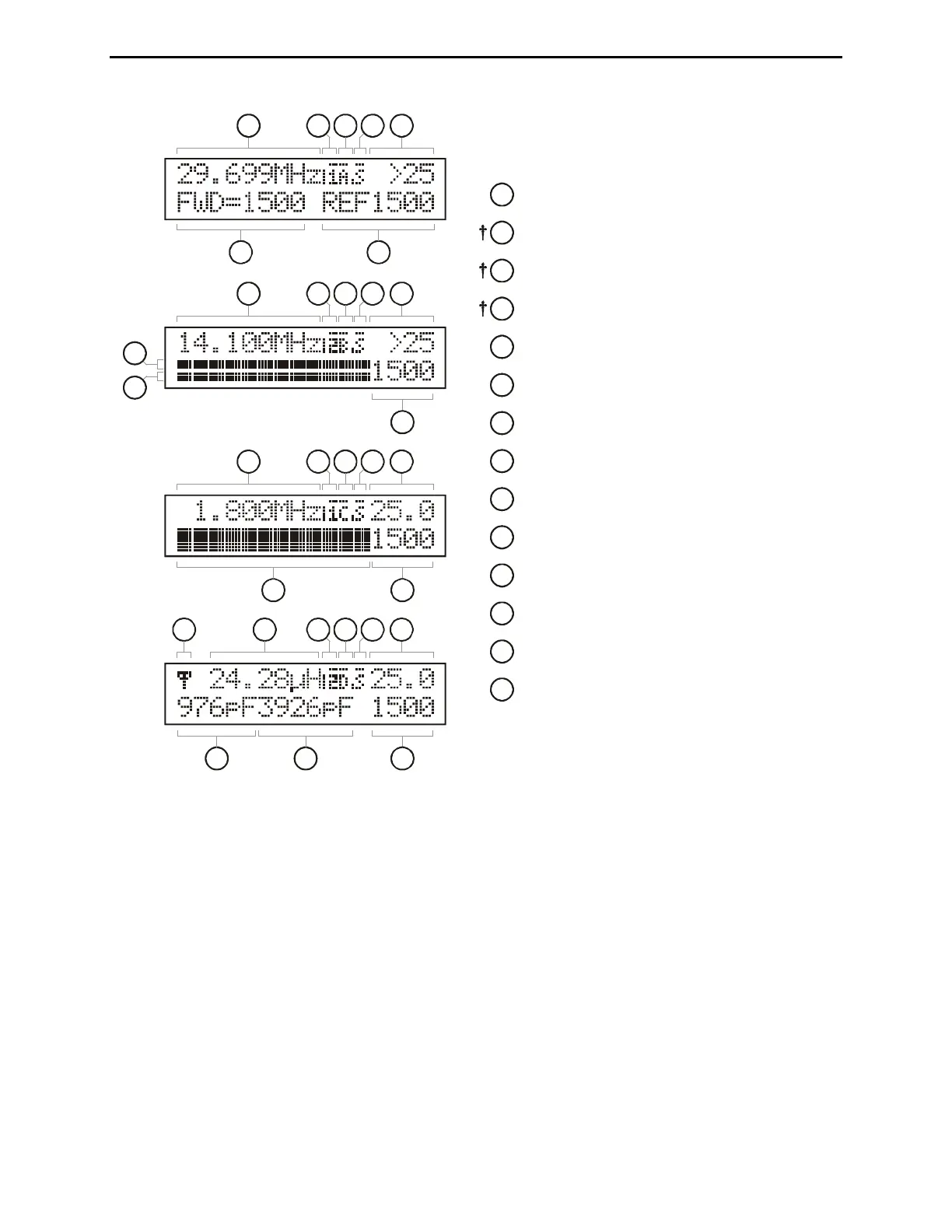

Figure 16. Main Mode Menus Display.
Tuner Indicators
Various tuner indicators are shown on the main menus to indicate tuner status. Refer to Figures 16 and
17 for locations of these indicators. The number enclosed within ( ) is the item number of Figure 17.
• Antenna: A small “1” appears to indicate antenna 1 is selected (15); a small “2” appears to indicate
antenna 2 is selected (16).
• Radio Interface: One dot appears on the left side of the Antenna indicator to indicate the selected
radio interface (17-21).
• Amp Relay Enable: When Amp Relay Enable is OFF, a bar appears on top of the Antenna indicator
(22).
