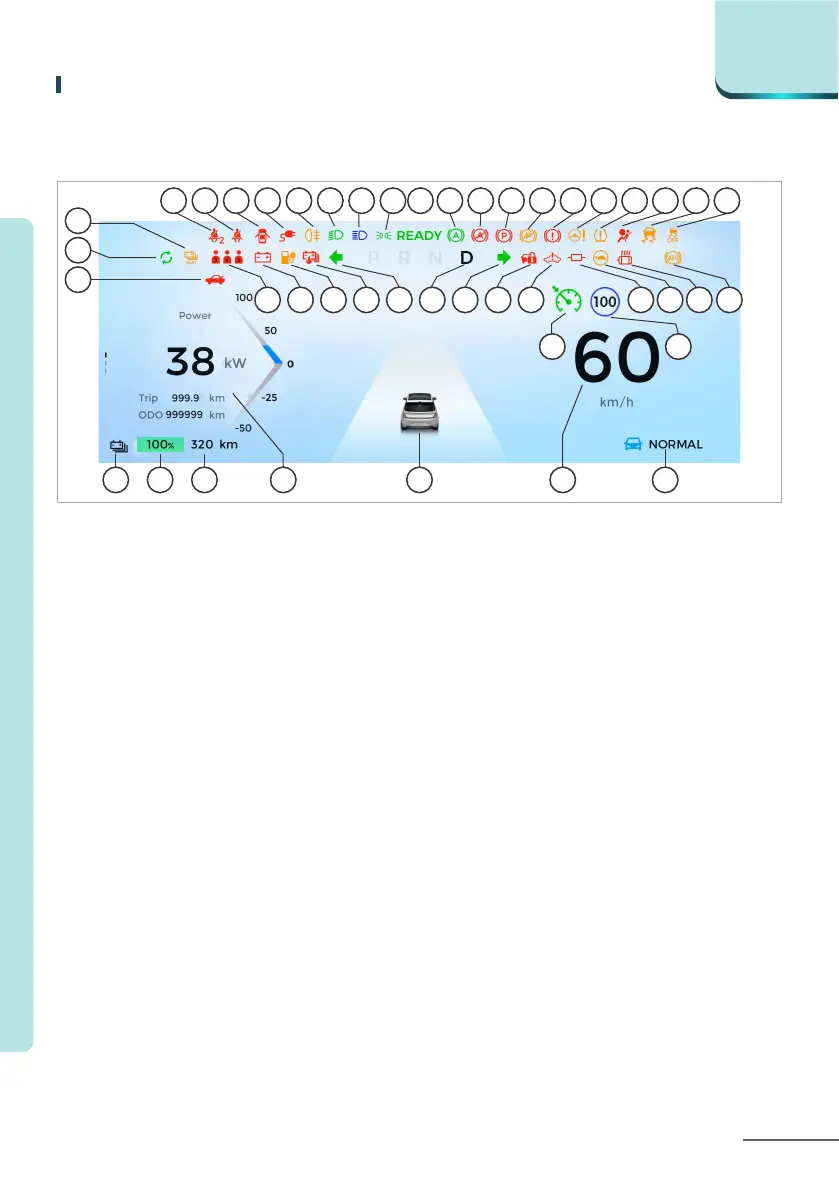

1. Front Passenger's Seat Belt
Unfastened Warning Indicator
2. Driver Seat Belt Warning
Indicator
3. Door Ajar Warning Indicator
4. Charging Cable Connection
Indicator
5. Rear Fog Light Indicator
6. Low Beam Indicator
7. High Beam Indicator
8. Position Indicator
9. READY Indicator
10. Automatic Vehicle Hold (AVH)
working Indicator
11. Automatic Vehicle Hold (AVH)
Fault Warning Indicator
Instrument cluster
12. Electronic Parking Brake (EPB)
Working Indicator
13. Electronic Parking Brake (EPB)
Fault Warning Indicator
14. Brake System Fault Warning
Indicator
15. EPS Fault Warning Indicator
16. Tire Pressure Monitor System
(TPMS) Fault Indicator
17. Airbag Fault Warning Indicator
18. Electronic Stability Control (ESC)
State Indicator*
19. Electronic stability control (ESC)
o indicator*
20. Battery pack heating indicator
21. Energy recovery indicator
