SLIMLINE touch (EN)_allgem. Vers.01 (02-2022→) Translation of the original Page 9-47

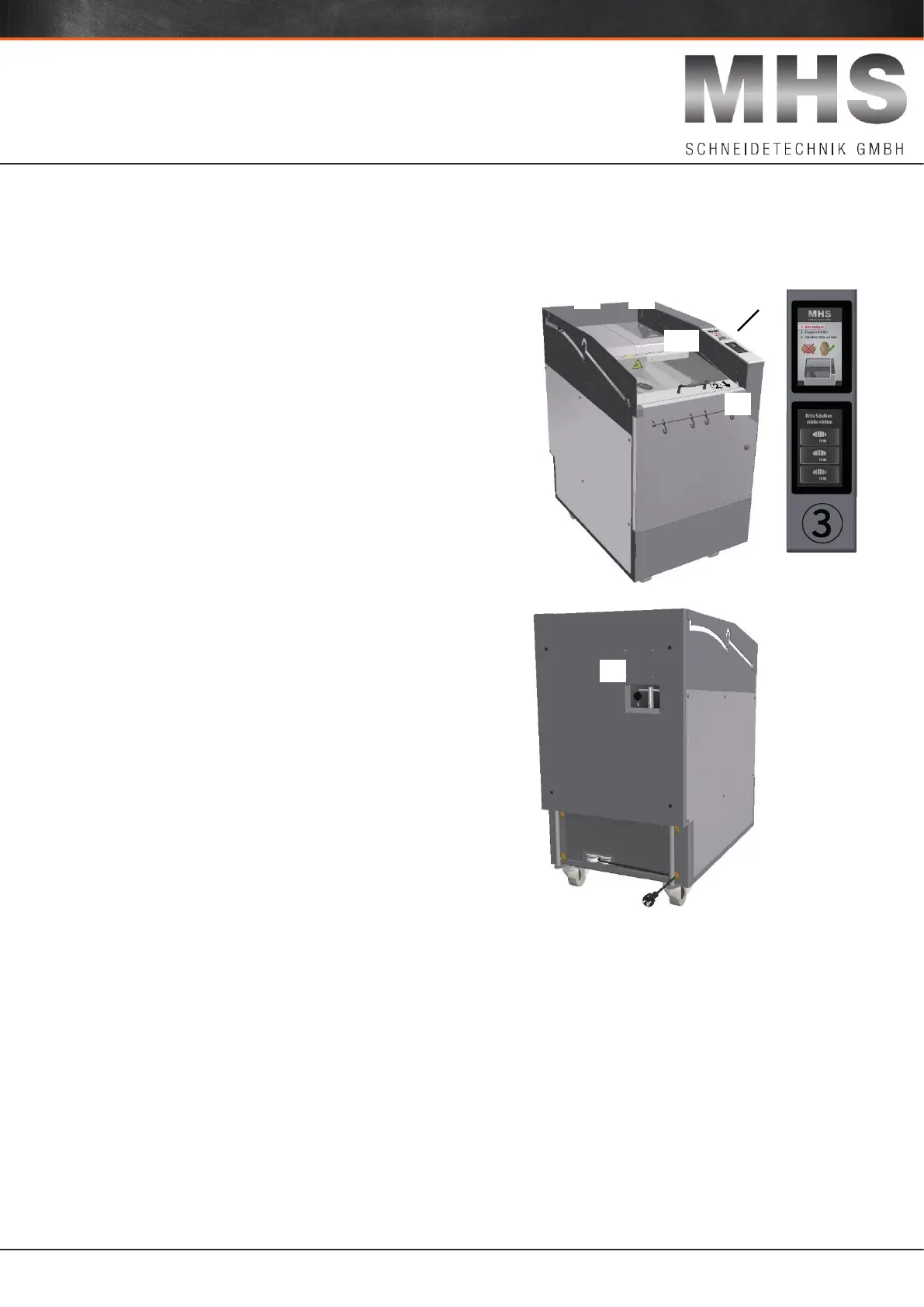

2.3 SAFETY DEVICES
To protect the operator, the machine is equipped with safety devices that ensure smooth
operation and protect the operator against immediate dangers:
In operation:
- Cutting area protective disc (1) with mechanical
lock
- Display (2)
- Front door (3)
- Top cover (4)
- Master switch (5)
- Protective screen button, at rear (6)
For maintenance and cleaning:
- Front door safety switch (7)
- Top cover safety switch (8)
- Protective screen safety switch (9)
The machine features a protective screen (1) in the cutting area, which protects the user against
unwanted access and is secured against opening during operation.
The protective screen and other protective devices are inspected via the proximity switches (7,
8, and 9).
6
3,7
1,9
4,8
5
2
