INSTALLATION
2.5 Preparation of the Transmitter Cable
The transmitter cable is supplied as standard. Replacement of additional cables can be
obtained by contacting your local distributor or Michell Instruments (see www.michell.
com for details).
The cable is pre-wired so no user wiring is required. If the cable needs to be re-wired,
see below:
Cable connection to the Cermet II transmitter is made via the removable connector.
Removing the central screw enables the connector terminal block to be removed from
the outer housing by using a small screwdriver to prise it clear.
i
O-ring
and washer

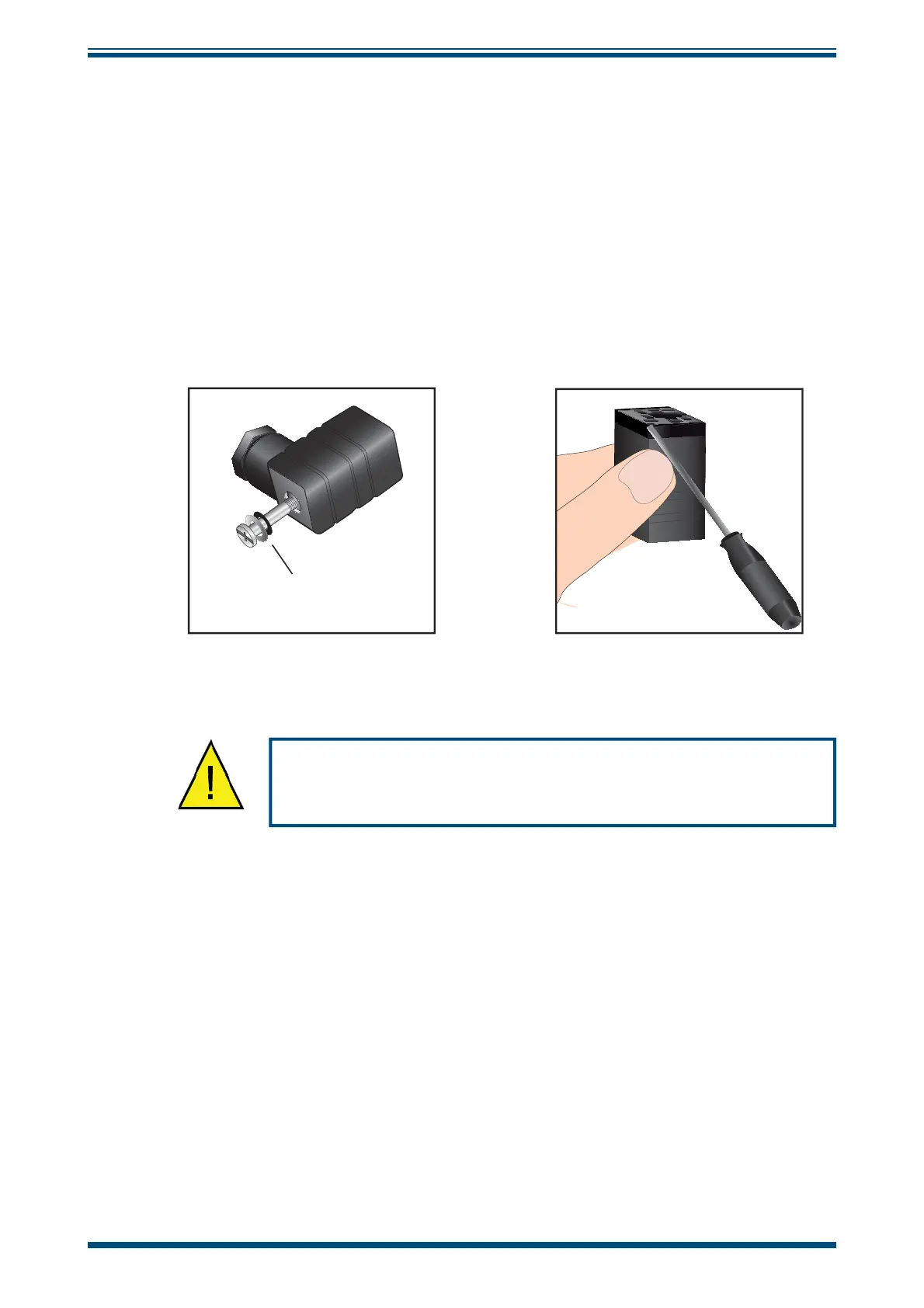

Figure 7 Connector Terminal Block Removal
Caution: When removing the central screw ensure that the
small sealing O-ring and the washer are retained on the screw
and are present during re-installation.
