INSTALLATION
2.7 Monitor Mounting
The monitor is designed for panel mounting and requires a panel cut-out of 46 x 92mm
(1.8 x 3.6”). The recommended panel thickness is 2 to 5mm (0.08 to 0.2”).
To mount the unit, proceed as follows:
3
2
1
°Cdp
°Fdp
°Cdp
°Fdp
Cermet II
Advanced Online
©
ª
Setup
Cermet II
Advanced Online
©
ª
Setup

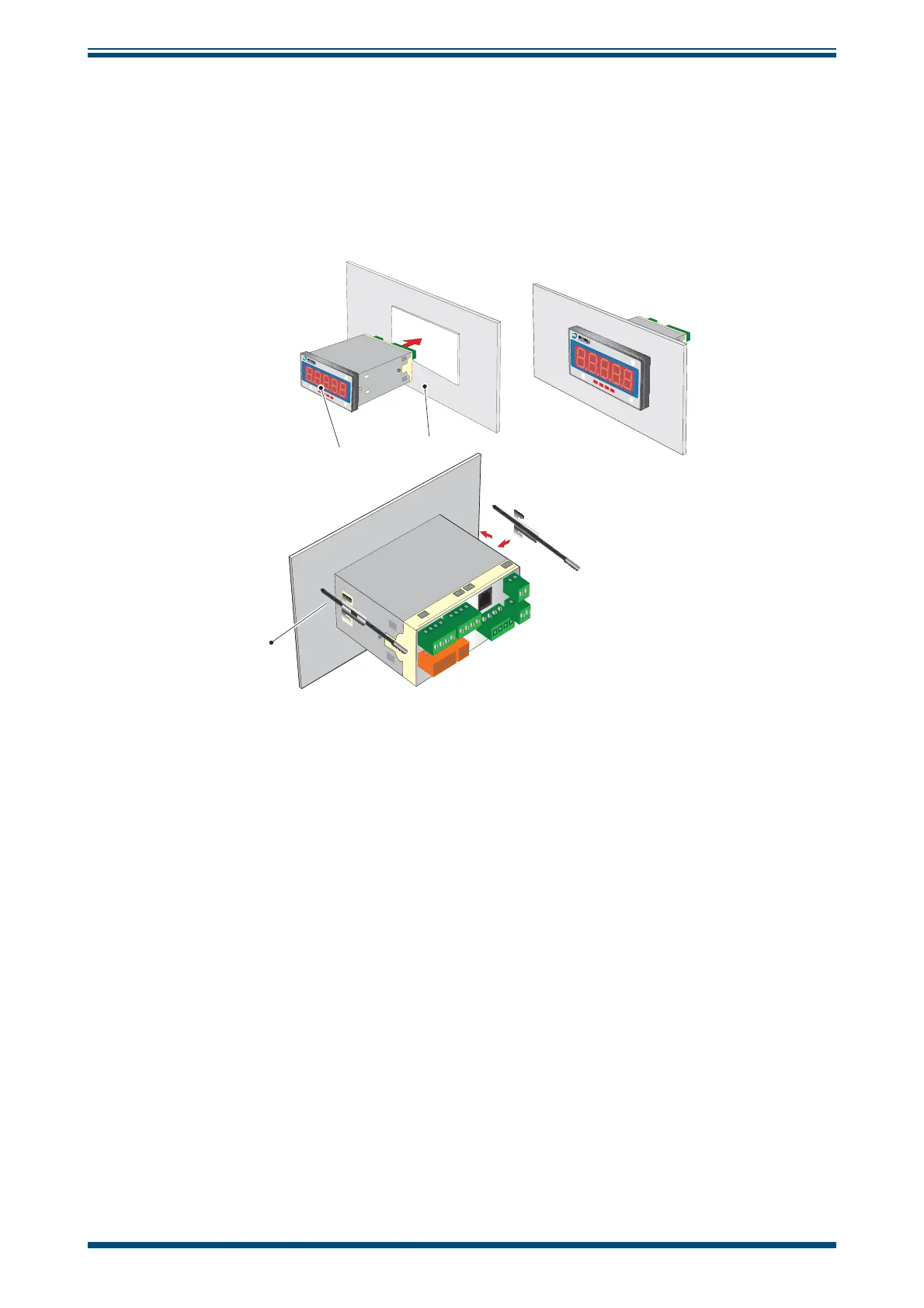

Figure 12 Mounting the Monitor
1. Pass the monitor (1) through the front of the panel (2).
2. Support the monitor and attach mounting fi xing brackets onto the
side of the monitor.
3. Tighten the fi xing screw (3) fi nger tight, against the back of the
panel.
4. Ensure that the monitor is sitting fl ush to the front of the panel (2)
and tighten the fi xing screws evenly against the back of the panel.
Caution: Do not overtighten the screws as this could cause the case to crack.
