6. Mechanical Installation
The thermoMETER CT sensors are equipped with a metrical M12x1-thread and can be installed either directly
via the sensor thread or by means of the hex nut (included in scope of supply) to the mounting bracket
available. Various mounting brackets which make the adjustment of the sensor easier can be ordered ad-
ditionally as accessories.
The thermoMETER CTH and CTP sensors are delivered with massive housing and can be installed via the
M18x1-thread.
i
All accessories can be ordered using the according part numbers in brackets [ ].

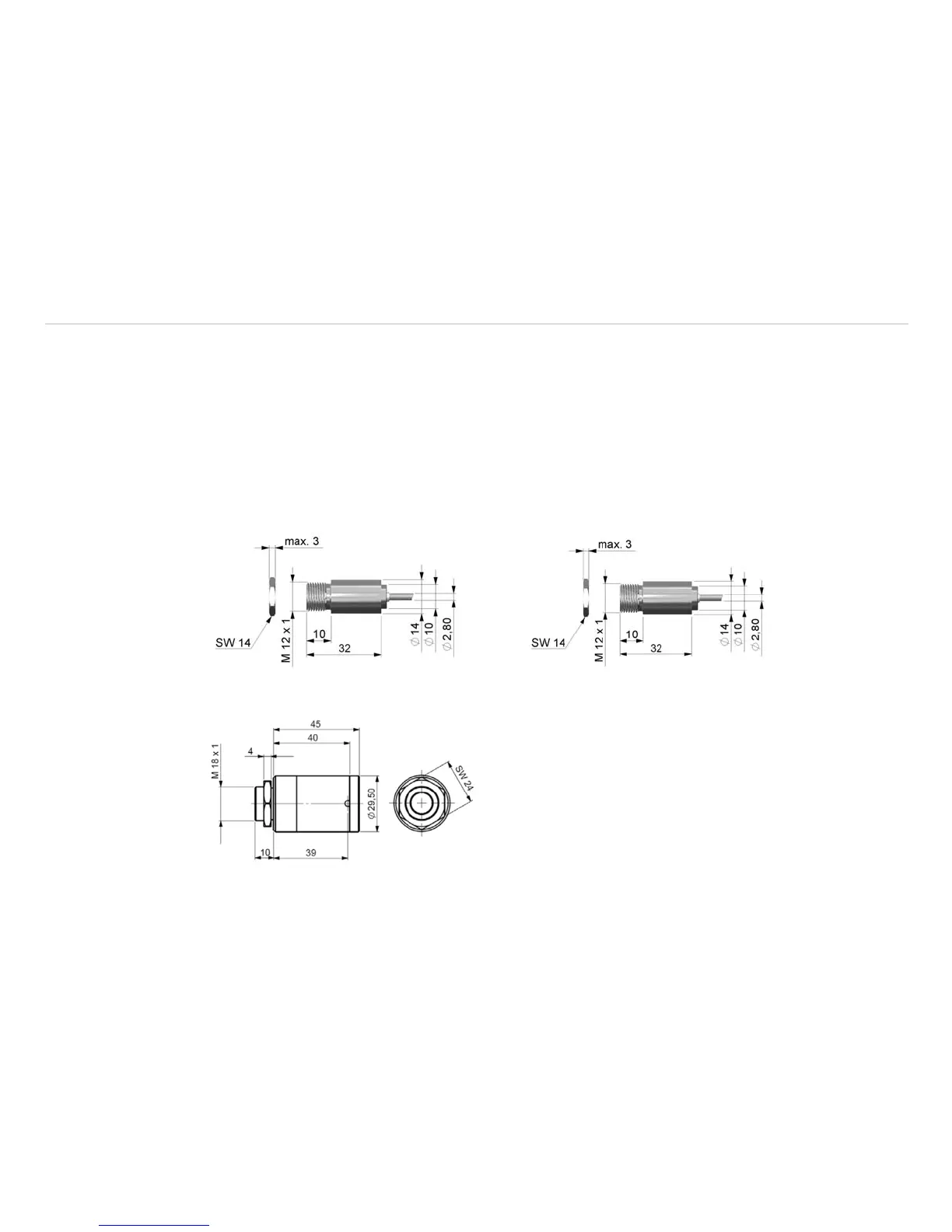

Fig. 4 Dimensional drawing sensor Fig. 5 Dimensional drawing sensor with integrated CF lens
i
Make sure to keep the optical path clear of any
objects.
Dimensions in mm, not to scale
Fig. 6 Dimensional drawing massive housing (standard on CTH and CTP)
