6.3.6 Massive Housing
The massive housing [TM-MHS-CT] is available in aluminum (anodized) or brass.

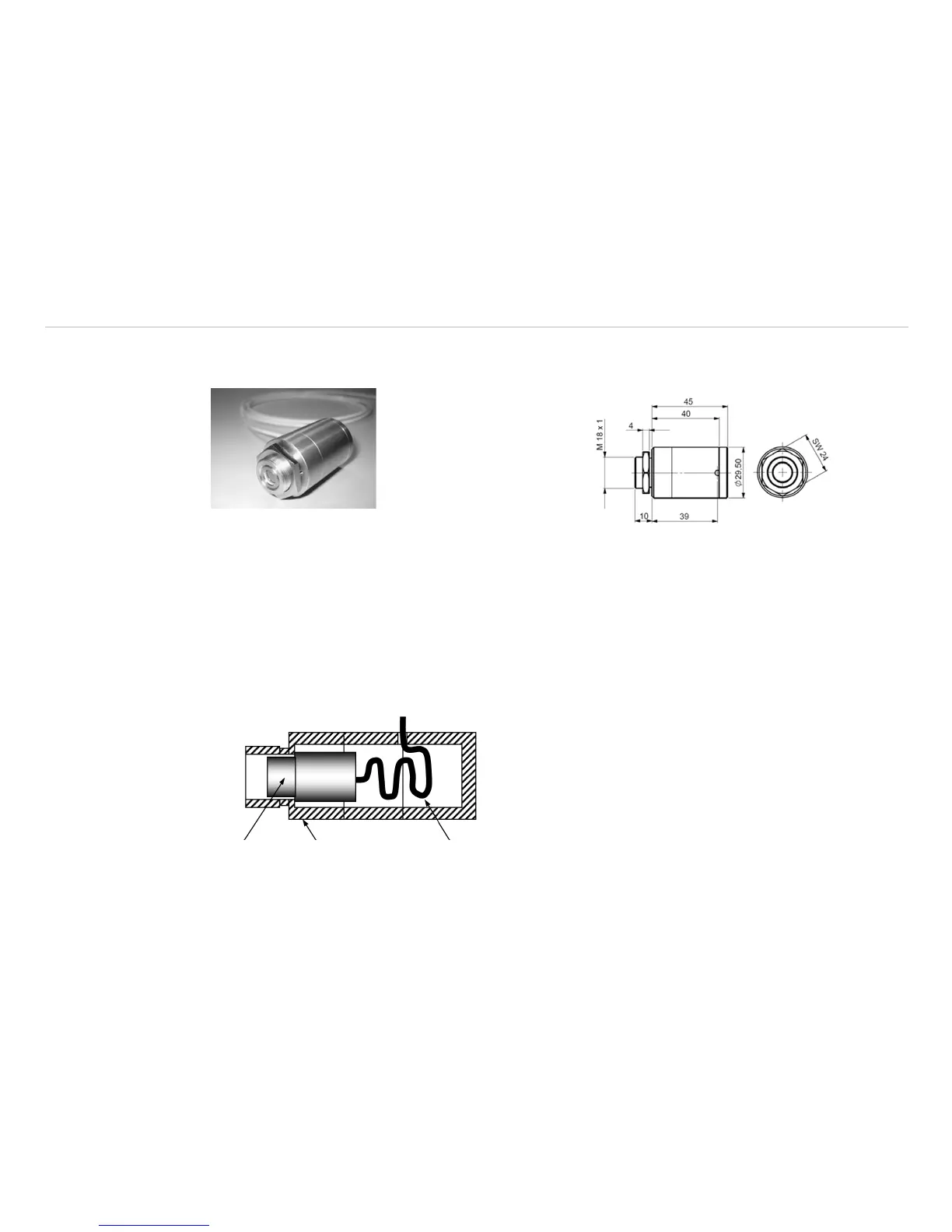

Fig. 24 Massive housing, stainless steel [TM-MHS-CT] Fig. 25 Dimensional drawing massive housing,
stainless steel
Dimensions in mm (inches), not to scale
The massive housing allows reproducible and stable measurements on applications with significant and
short-term variation in ambient temperatures. It can be combined with the CF lens [TM-CFAG-CT] or with the
protective window [TM-PWAG-CT], see Chap. 5.
i
For an optimum function of the massive housing 10 cm of the sensor cable must be installed in loops
inside the housing.
CT sensor
Massive housing
Sensor cable
Fig. 26 Massive housing
