Mechanical Installation
thermoMETER CT
6.3.8 Pipe Adapter and Sighting Tubes
The pipe adapter [TM-PA-CT] allows an assembling of sighting tubes directly on the CT sensor. The sighting
tubes are available in 3 different lengths:
TM-ST20-CT Length: 20 mm
TM-ST40-CT Length: 40 mm
TM-ST88-CT Length: 88 mm

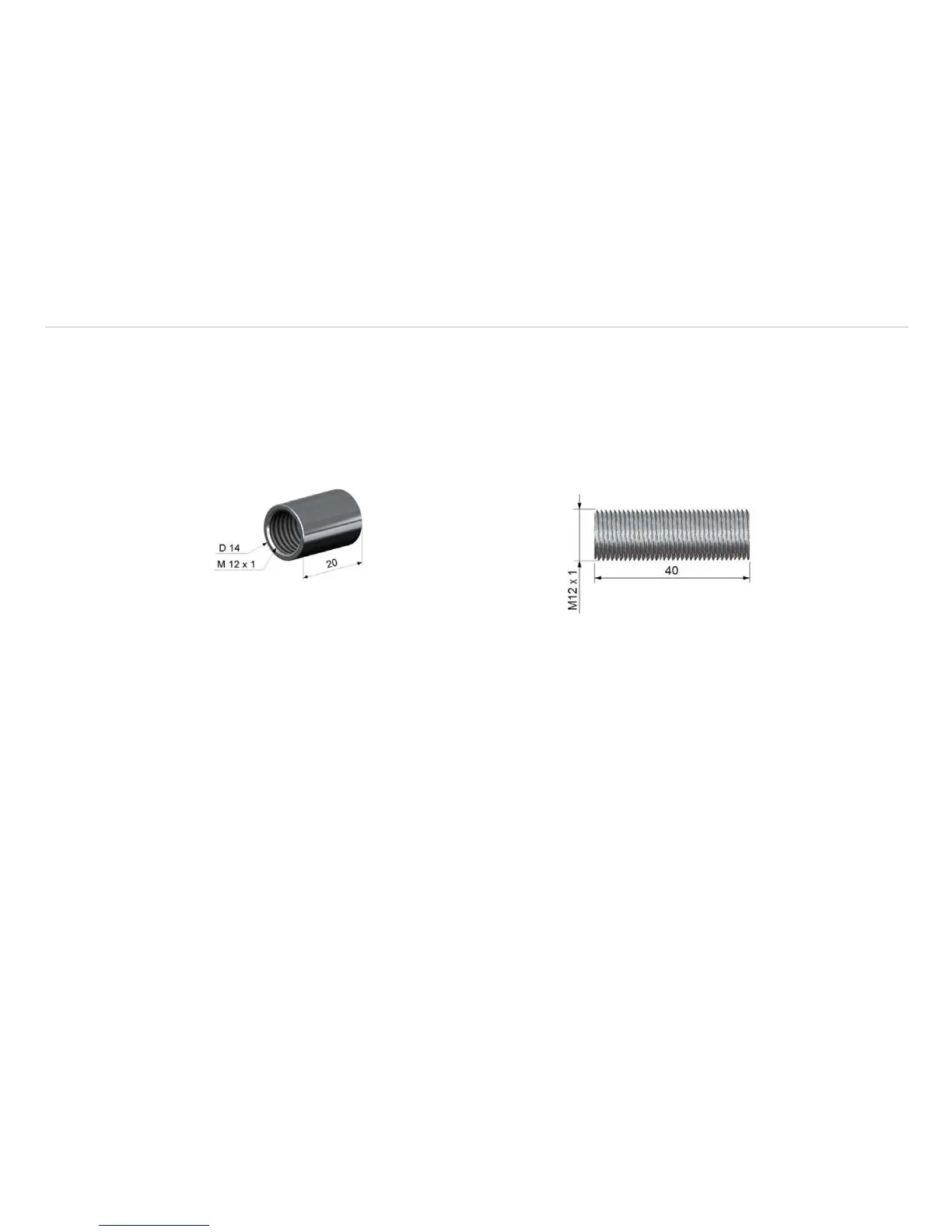

Fig. 29 Pipe adapter TM-PA-CT Fig. 30 Sighting tube TM-ST40-CT
The sighting tubes can only be used for sensors with a distance-to-spot ratio (D:S) of ≥ 15:1.
