3Flex Service Manual Analysis Sequence
Aug 2013 3-1
3. THE ANALYSIS SEQUENCE
The analysis sequence describes what is taking place throughout the instrument during an analysis.

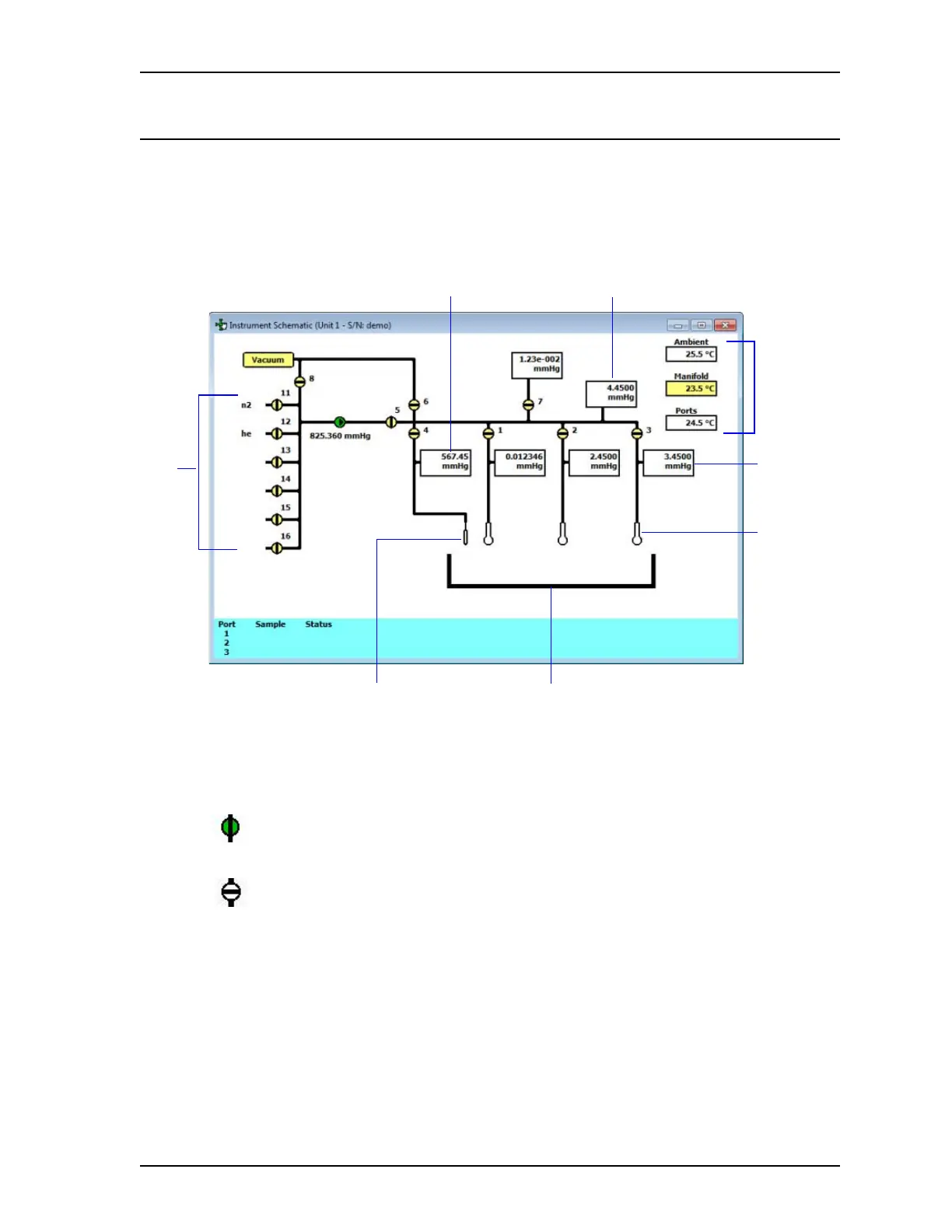

The instrument schematic, shown below, will be used to show the state of the system components
during the various phases of an analysis.
The state of a valve is indicated by the icon color.
Green = open
White = closed
(when in Manual Mode, yellow = closed)
Sample tubes
Elevator
Po tube
Manifold transducer
Sample
transducers
Gas
inlet
ports
Temperature
readings
Po transducer
