3Flex Service Manual Instrument Components
Aug 2013 2-5
Elevator Raises automatically when the analysis is started and lowers
automatically upon completion.
Elevator reset Resets the elevator in case of failure. Elevator Circuit Breaker Open
displays on the instrument schematic if the elevator requires a reset.
Mantle/Furnace
connector
For connecting a heatring mantle or furnace.
Dewar The Dewar has a capacity of 3.2 L and life of 70 m hrs.
Sample Tubes Constructed of borosilicate glass to withstand the temperatures reached
inside the Dewar or during degassing.
Power indicator Illuminated when instrument is on.

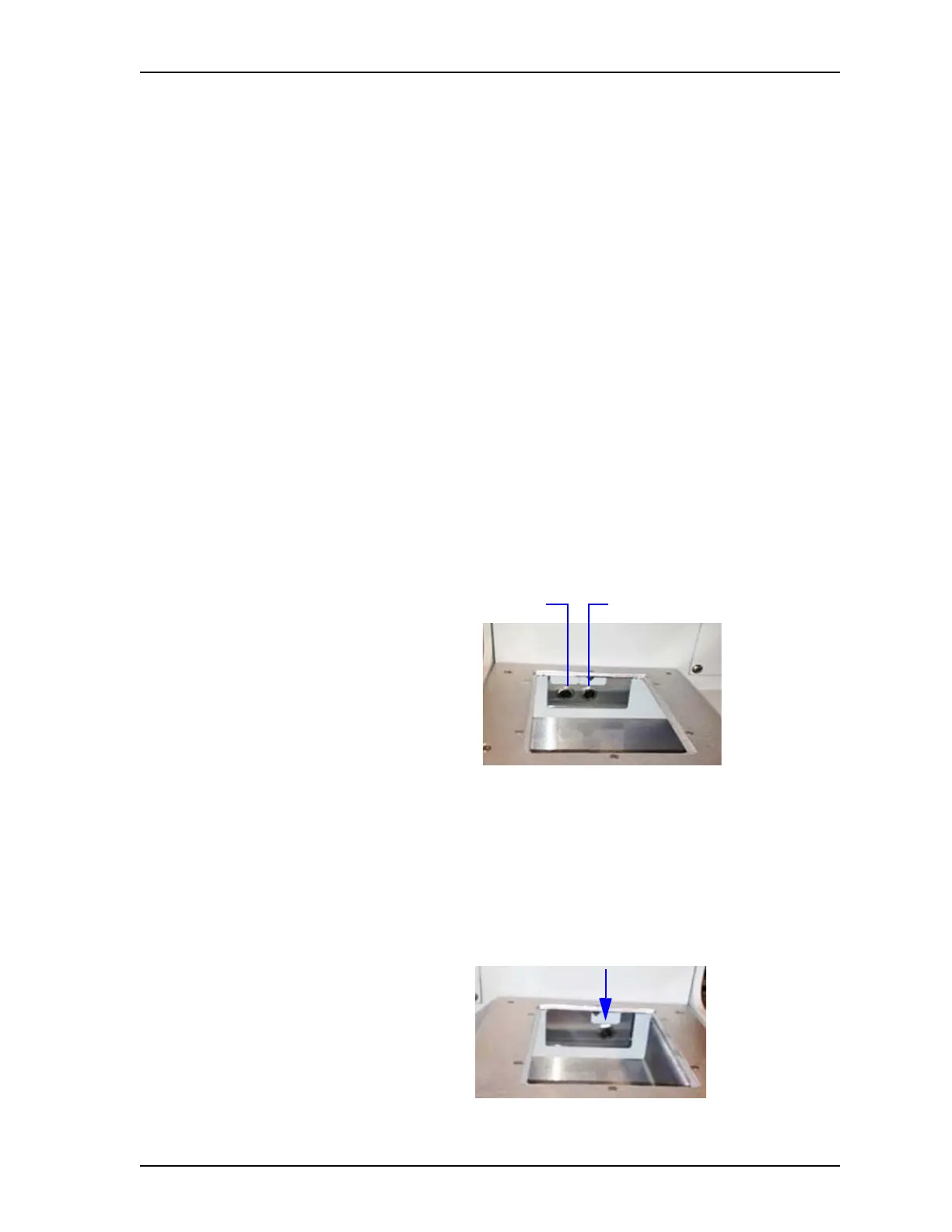

Access panels Provides access to the mantle, heater, and transformer circuit breakers.
Left side\ Contains the manifold heater and heating mantle breakers.
• The manifold heater breaker is 10 amps and plugs into J-22 on the
Power Distribution PCB.
• The heating mantle breaker is 4 amps and plugs into J-23 on the
Power Distribution PCB.
Right side Contains the turbo pump breaker. It is 4 amps and plugs into J-16 on the
Power Distribution PCB.
Manifold Heater
Heating Mantle
