System Schematic 3Flex Service Manual
2-18 Aug 2013

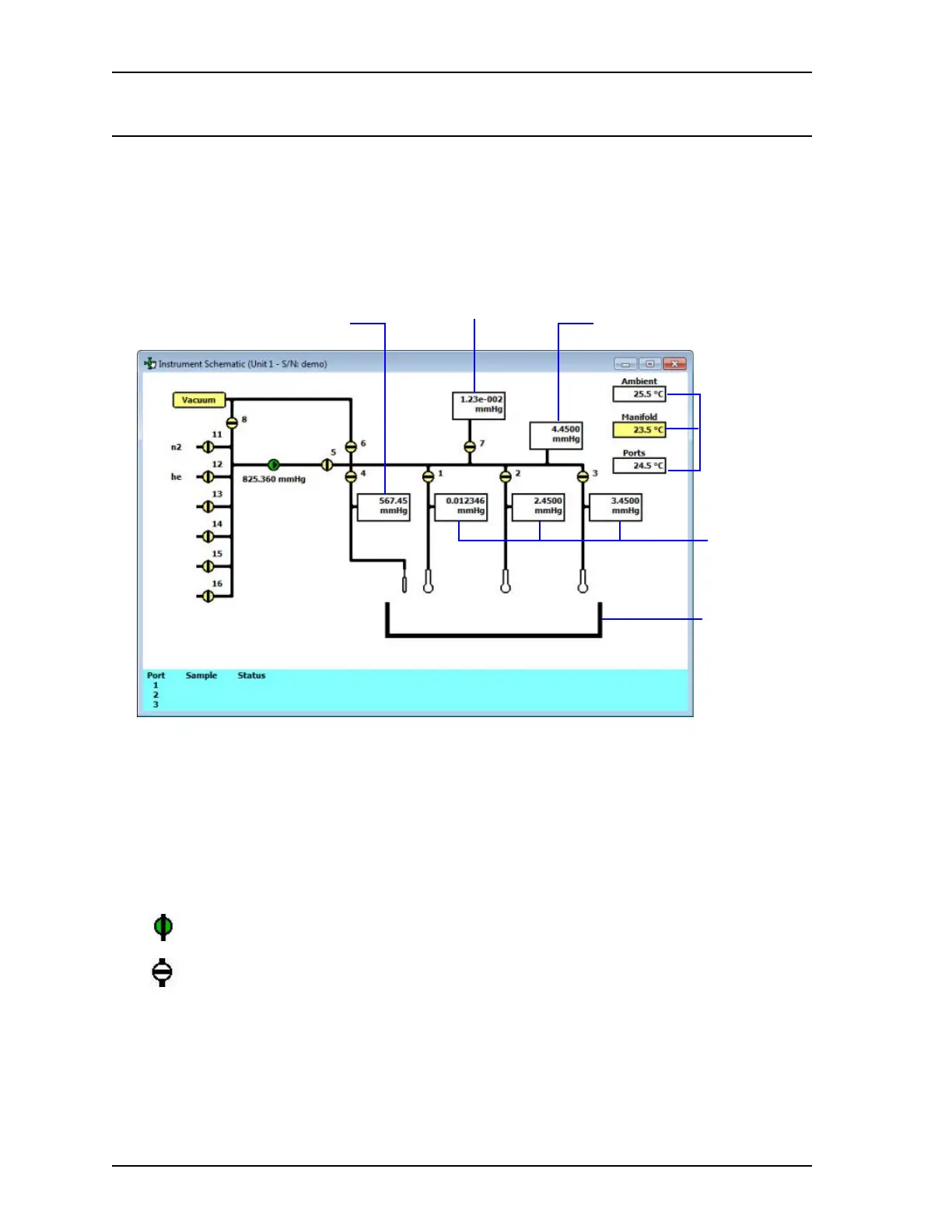

System Schematic
The schematic diagram in the 3Flex software displays the following:
Schematic valves are as follows:
All instruments have 1000-Torr on all three ports.
1-port Micropore units: Port 2 has 10 and 0.1 transducers
2-port Micropore units: Ports 1 and 2 have 10 and 0.1 transducers
3-port Micropore units: All ports have three transducers
Valves and their current states
Pressure reading from the transducers
Temperature readings
Sample and Po ports
Location and status of the elevator
During operation, status of the analysis
1 thru 3 Sample ports 7 Vacuum isolation
4 Po port 8 Gas inlet vacuum
5 Servo supply 11 thru 16 Gas inlets
6 Manifold vacuum Unmarked Servo valve
Green = open
White = closed (when in Manual Mode, yellow = closed)
Temperature
Po port transducer reading
Vacuum gauge reading
readings
Sample port
transducer
readings
Manifold transducer reading
Elevator
