ports will affect all Tag VLANs. It contains the following fields:
Items Functions
Port
The switch Port Number 1~16/24
VLAN aware
Enabled
Set or show the VLAN awareness mode for the port. VLAN
aware ports will strip the VLAN tag from received frames
and insert the tag in transmitted frames (except PVID).
VLAN unaware ports will not strip the tag from received
frames or insert the tag in transmitted frames.
Ingress Filtering
Enabled
It determines how to process frames tagged for VLANs for
which the ingress port is not a member.
Packet Type
Tagged Only: block all un-tagged packets from accessing
this port.
All: all packets are allowed to access this port.
PVID
while receiving an untagged frame from the port, the
switch will assign a tag to the frame, using the PVID of the
port as its VID. Port VLAN ID(1~4094) or None

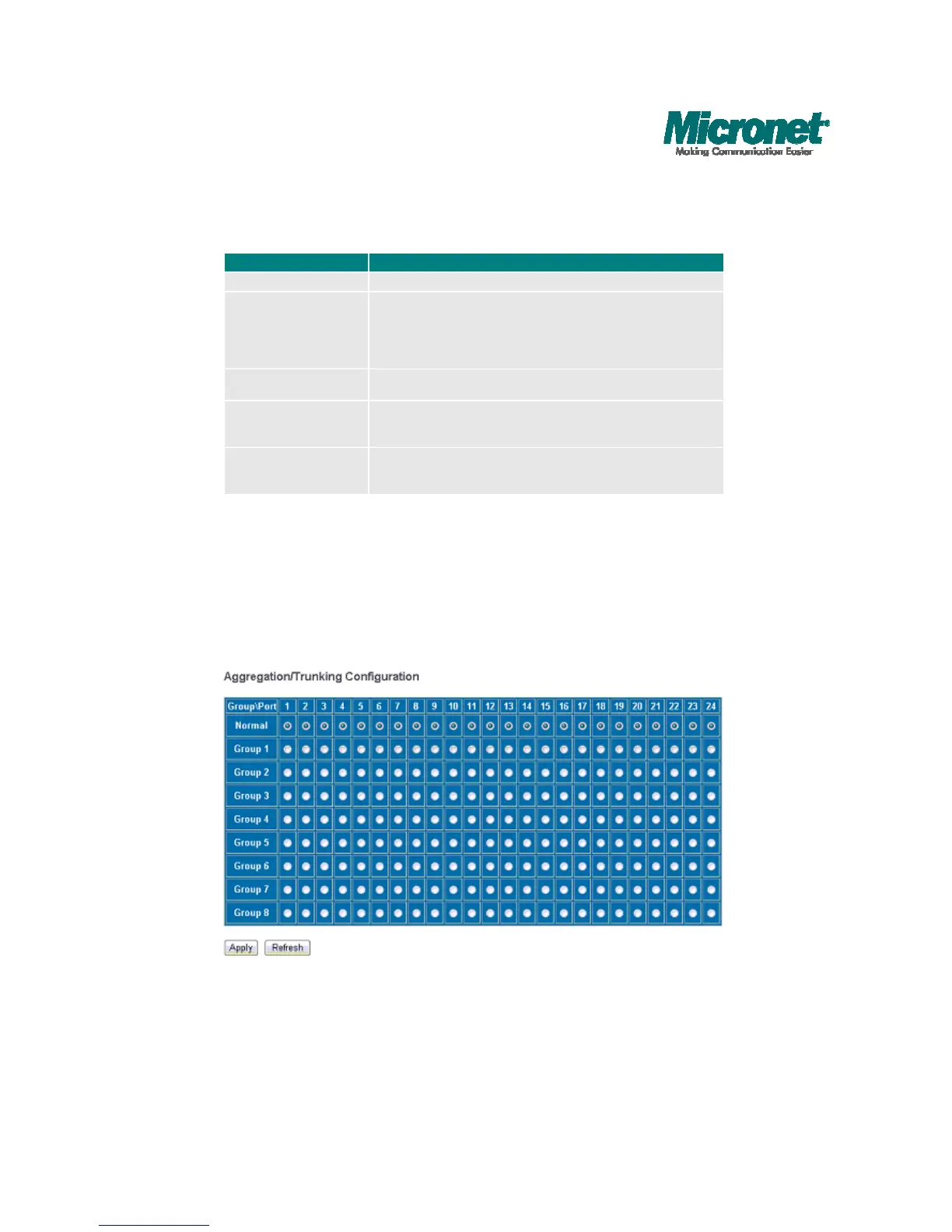

Aggregation/ Trunk Configuration
This page shows the aggregation groups and the aggregation mode.
To set up the Port trunk groups, put the ports number into the same Aggregation
group. There are eight groups to choose.
Don’t forget to click “Apply” to save the setting.
