Function name
RSTP Port Configuration
Function description
Enable or disable RSTP protocol on the ports that are selected and set path cost.

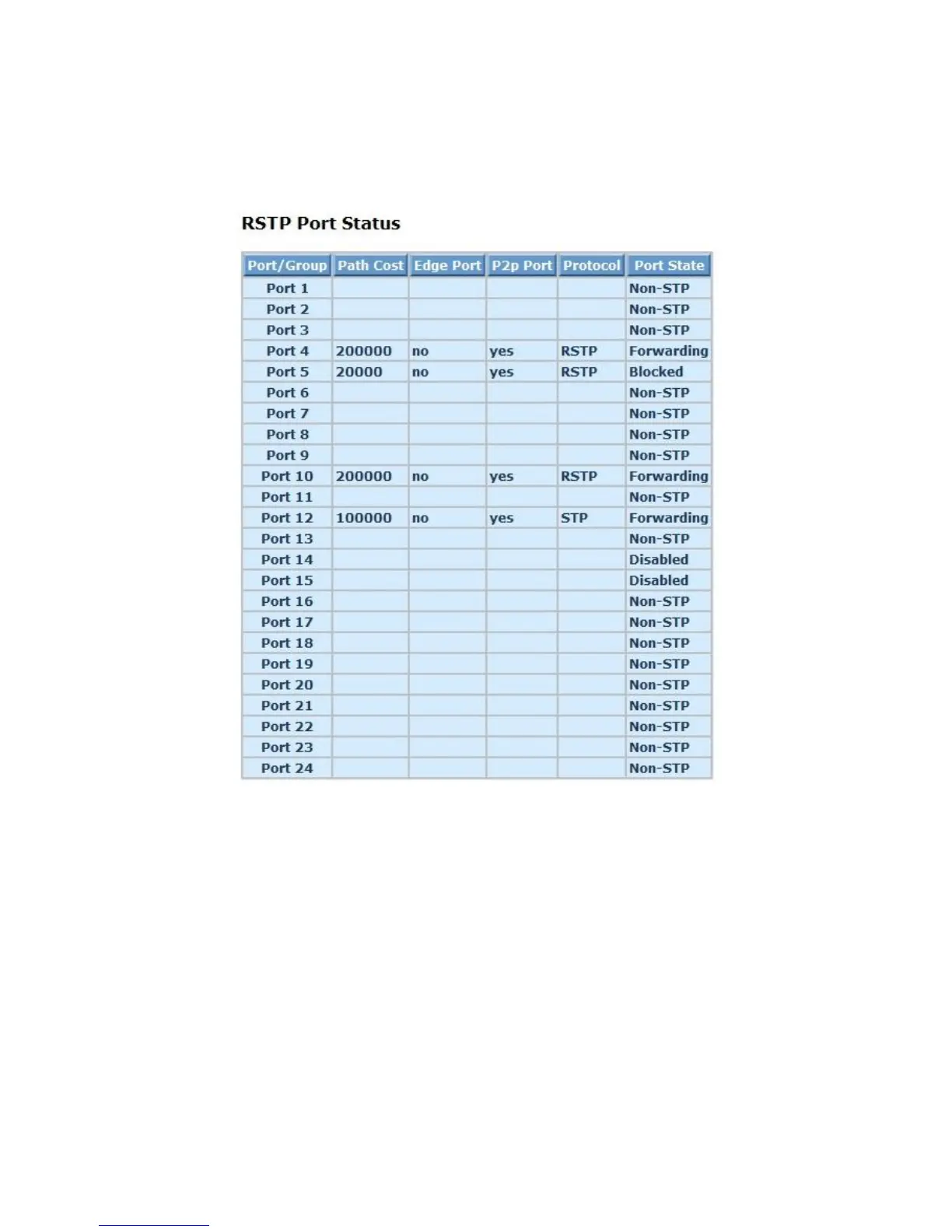

Fig. 3-25 RSTP Port Status
Parameter description
Port / Group:
The RSTP information is listed per port or trunk
Path Cost:
Path cost is the cost of transmitting a frame on to a LAN through that port. It is
assigned according to the speed of the bridge. The slower the media, the higher
the cost, user can select auto or set the range from 1 to 200000000.
Edge:
Indicates whether this port is configured as edge port
P2P:
Informs if this port is connected as point to point link
Protocol:
Shows the used protocol
