24 Port Gigabit Ethernet PoE Switch – User Manual Page 5 of 72

________________________________________________________________________

2. Installation

2-1. Starting up 24 Port Gigabit Ethernet Switch

This section will give users a quick start for:

- Hardware and Cable Installation

- Management Station Installation

- Software booting and configuration

2-1-1. Hardware and Cable Installation

At the beginning, please do first:

Wear a grounding device to avoid the damage from electrostatic discharge

Be sure that power switch is OFF before you insert the power cord to power source

• Installing optional SFP fiber transceivers to the 24 Port Gigabit Ethernet PoE

Switch

Note: If you have no modules, please skip this section.

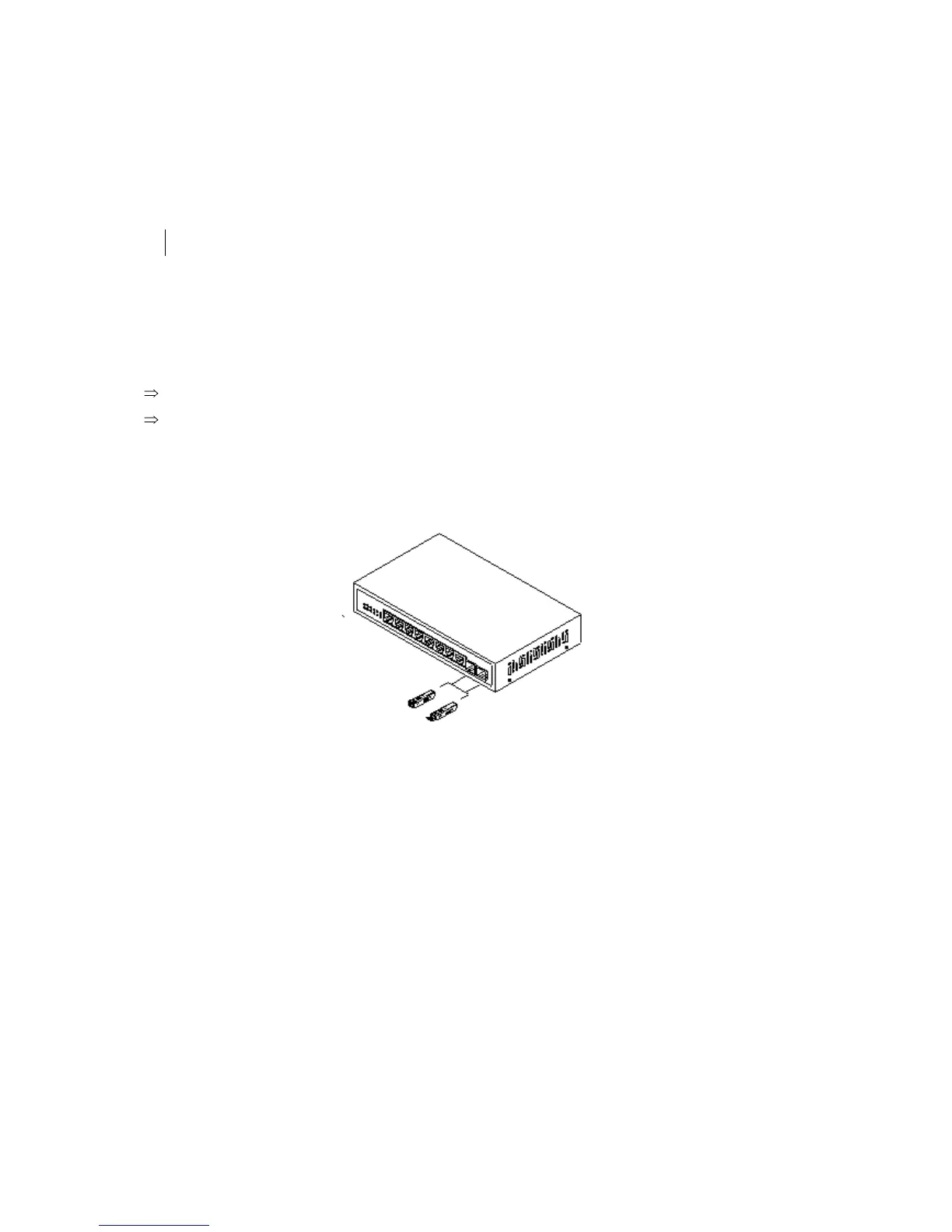

Fig. 2-1 Installation of optional SFP transceiver

• Connecting the SFP Module to the Chassis:

The optional SFP modules are hot swappable, so you can plug or unplug them before or

after powering on.

1. Verify that the SFP module is the right model and conforms to

the chassis

2. Slide the module along the slot. Also be sure that the module is properly seat-

ed against the slot socket/connector

3. Install the media cable for network connection

4. Repeat the above steps, as needed, for each module to be installed into slot(s)

5. Have the power ON after the above procedures are done
