State:
Shows the port state (forwarding, blocking, learning or non-stp this function is
disabled)
3-3-5. IGMP Status
Function name
IGMP Status
Function description
Display IGMP status. In Fig. 4-22, the window shows VLAN ID for each multicast
group.

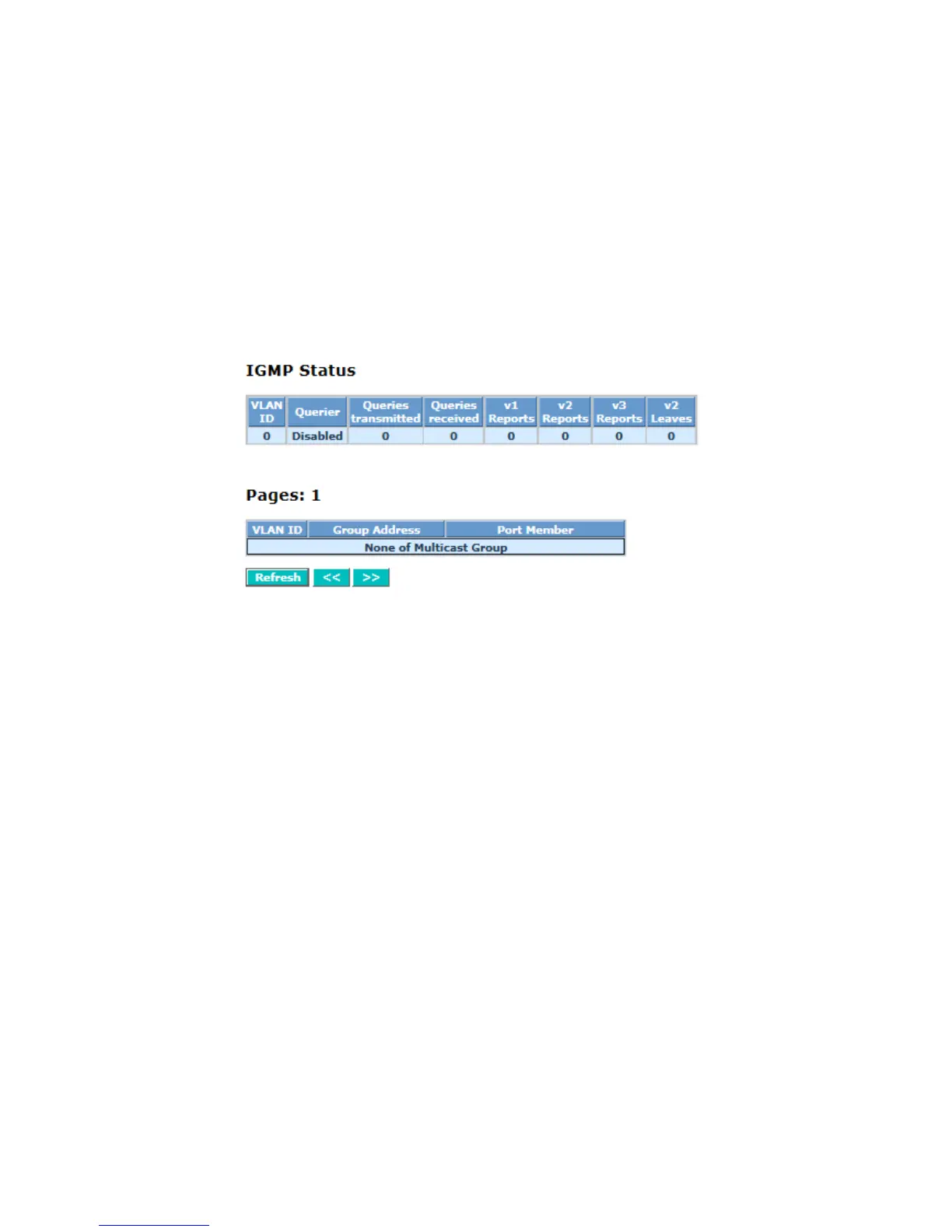

Fig. 3-26 IGMP Status
Parameter description
VLAN Id:
Show VLAN Id for each multicast group.
Querier:
Show the group membership queries status.
Queries transmitted:
To count the group membership queries transmitted.
Queries received:
To count the group membership queries received.
V1 Reports:
When a host receives a group membership query, it identifies the groups associ-
ated with the query and determines to which groups it belongs. The host then
sets a timer, with a value less than the Max Response Time field in the query, for
each group to which it belongs. It calculates the number of times of IGMPV1 re-
port.
V2 Reports:
When a host receives a group membership query, it identifies the groups associ-
ated with the query and determines to which groups it belongs. The host then
sets a timer, with a value less than the Max Response Time field in the query, for
each group to which it belongs. It Calculate the number of times of IGMPV2 re-
port.
