24 Port Gigabit Ethernet PoE Switch – User Manual Page 54 of 72

________________________________________________________________________

3-3-4. RSTP Status

Function name

RSTP VLAN Bridge Overview

Function description

This screen informs about general RSTP settings and shows the current status of

the Spanning Tree including root bridge and root port.

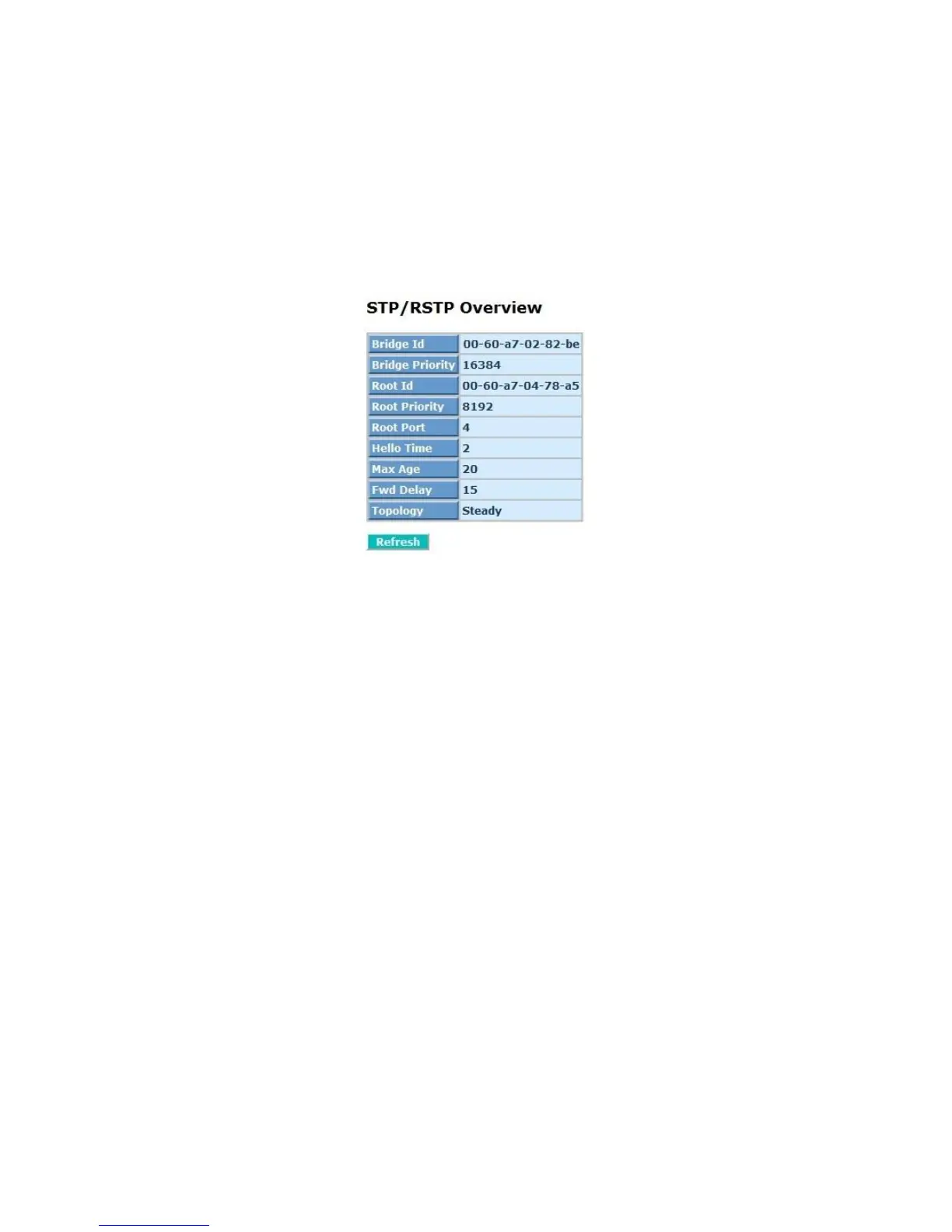

Fig. 3-24 RSTP VLAN Bridge Overview

Parameter description

Bridge ID:

Displays ID of this device

Bridge Priority:

Displays priority settings of this device

Root ID:

Displays ID of the root bridge

Root Priority:

Displays priority of the root bridge

Root Port:

The port which is part of the active path to the root bridge

Hello Time:

This is the time interval in seconds between BPDU configuration message gener-

ations by the root switch. The allowed range is 1 to 10 seconds.

Max Age:

This is the maximum time a switch can wait without receiving a BPDU before at-

tempting to reconfigure. The allowed range is 6 to 40 seconds.

Forward Delay:

This is the maximum time (in seconds) a switch will wait before changing states.

Topology:

Informs about current status of the spanning tree topology
