Microsoft Surface Book User Manual

© 2015 Microsoft Page 26
DisplayPort or HDMI port, use a VGA cable and the Mini DisplayPort to VGA Adapter. A VGA
adapter or cable is for video only. Audio will play from your Surface speakers unless you’ve
connected external speakers. For more info, see Surface sound, volume, and audio accessories
on Surface.com.
 Wireless: You can connect to wireless displays when Windows detects one nearby. Or, use a
Microsoft Wireless Display Adapter (sold separately) to connect to a screen using Miracast.
Connect to a wired display
1. Connect an HDMI or VGA cable to the HDMI, DisplayPort, or VGA port on your TV, monitor,
or projector.
2. Connect the other end of the cable to a Surface video adapter or the Mini DisplayPort on
your Surface or to your docking station.

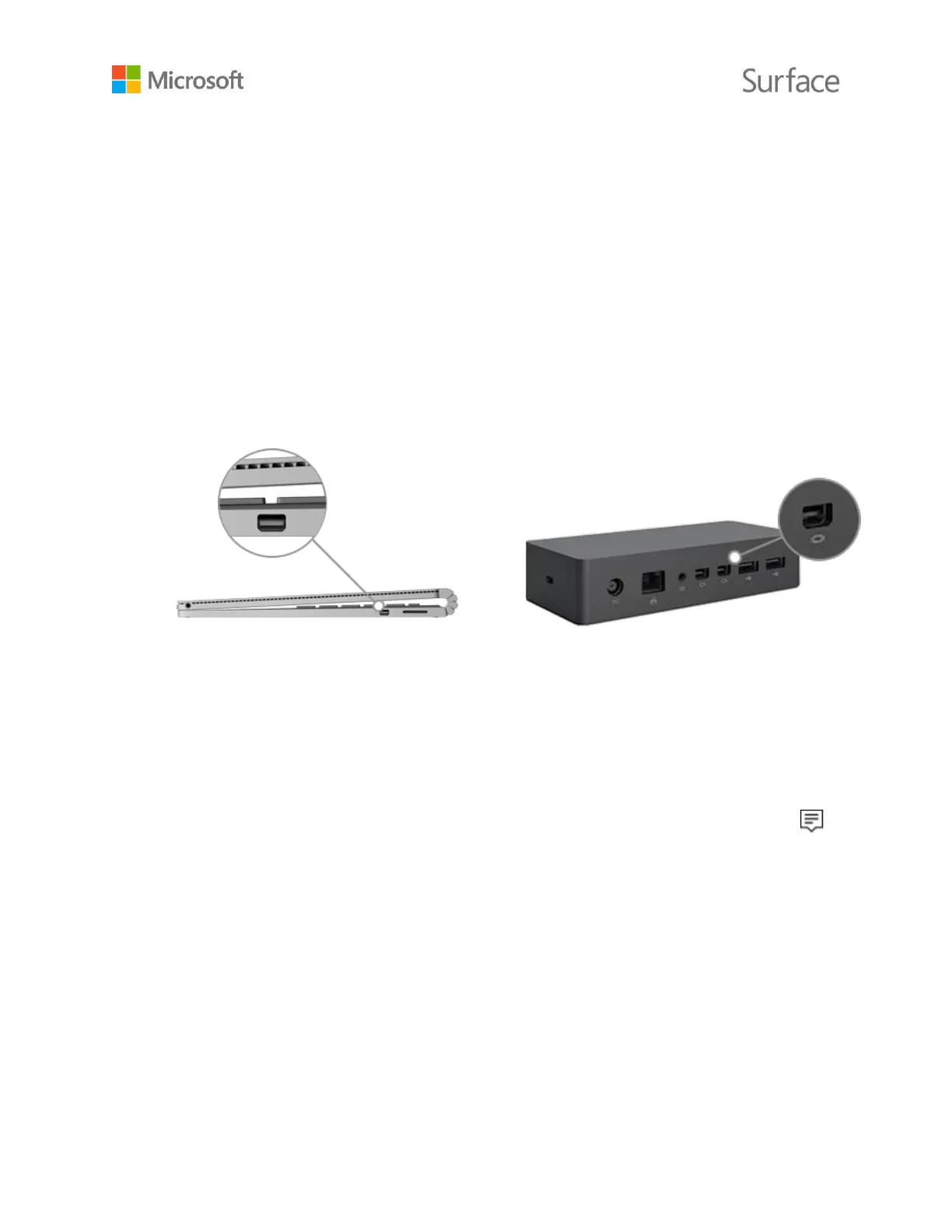

Mini DisplayPort on Surface Book
Mini DisplayPort on Surface Dock
3. If you’re using an adapter, plug it into the Mini DisplayPort on your Surface or your docking
station.
Connect to a wireless display
1. On your Surface, swipe in from the right edge of the screen or select Action center in
the taskbar.
2. Select Connect, and in the list of displays, select the name of the wireless display.
If you have problems connecting your Surface or have questions about screen resolution, see
Trouble connecting Surface to a second screen? on Surface.com.
If you’re using a Microsoft Wireless Display Adapter to connect to a screen using Miracast, see
Using the Microsoft Wireless Display Adapter with Surface on Surface.com for more info.
Set up your screens
Once you connect to another screen or screens, you can choose what to display on each screen.
Here’s how:

Microsoft Surface Book Specifications

General

Form factor	Convertible (Detachable)
Product type	Hybrid (2-in-1)
Product color	Silver
Housing material	Magnesium
Processor model	-
Processor family	Intel® Core™ i7
Processor frequency	- GHz
Processor manufacturer	Intel
Gyroscope	Yes
Internal memory	16 GB
Maximum internal memory	- GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Optical drive type	No
Total storage capacity	512 GB
Compatible memory cards	SD
Number of SSDs installed	1
Display diagonal	13.5 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	3000 x 2000 pixels
Native aspect ratio	3:2
On-board graphics card model	Intel® HD Graphics 520
On-board graphics card family	Intel® HD Graphics
Rear camera resolution (numeric)	8 MP
Front camera resolution (numeric)	5 MP
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Battery life (max)	- h
Trial software	Microsoft Office
Operating system architecture	64-bit

Weight and Dimensions

Depth	232.1 mm
Width	312.3 mm
Weight	1576 g
Height (rear)	22.8 mm
Height (front)	13 mm
Depth (tablet mode)	220.2 mm
Height (tablet mode)	7.7 mm
