SH-HC30 Height Controller System Manual
 Selection of detector (C: capacitance): 0 is the arc voltage detection; 1 is capacitive detection. For the
set range and factory value see Table 7-1.
 No board drop parameter (b):
In the capacitive detection mode, when the detected height is higher than value b, the cutting torch
stops; when the height returns to the value below it, the automatic height control continues;
In the arc voltage detection mode, when it falls manually, it encounters the zero signal, the cutting torch
rises to b mm in the opposite direction. For the set range and factory value see Table 7-1.
Table 7-1
Setting range (V)
H L A E d C b
Set range
（V）
100 ～ 300 10 ～ 40 20 ～ 200V 0 ～ 20 0～100 0～10 ～ 50
Arc voltage
Factory
value（V）
280 10 80 3 5 1 5
Set range
（mm）
20.0 ～ 30.0 3.0 ～ 10.0 6.0 ～ 25.0 0.0 ～ 4.0 0.0 ～ 4.0 0～12.0 ～ 30.0
Capacitance
Factory
value
（mm）
25.0 4.0 10.0 0. 3 2. 0 1 25.0
7.2 Operation Panel

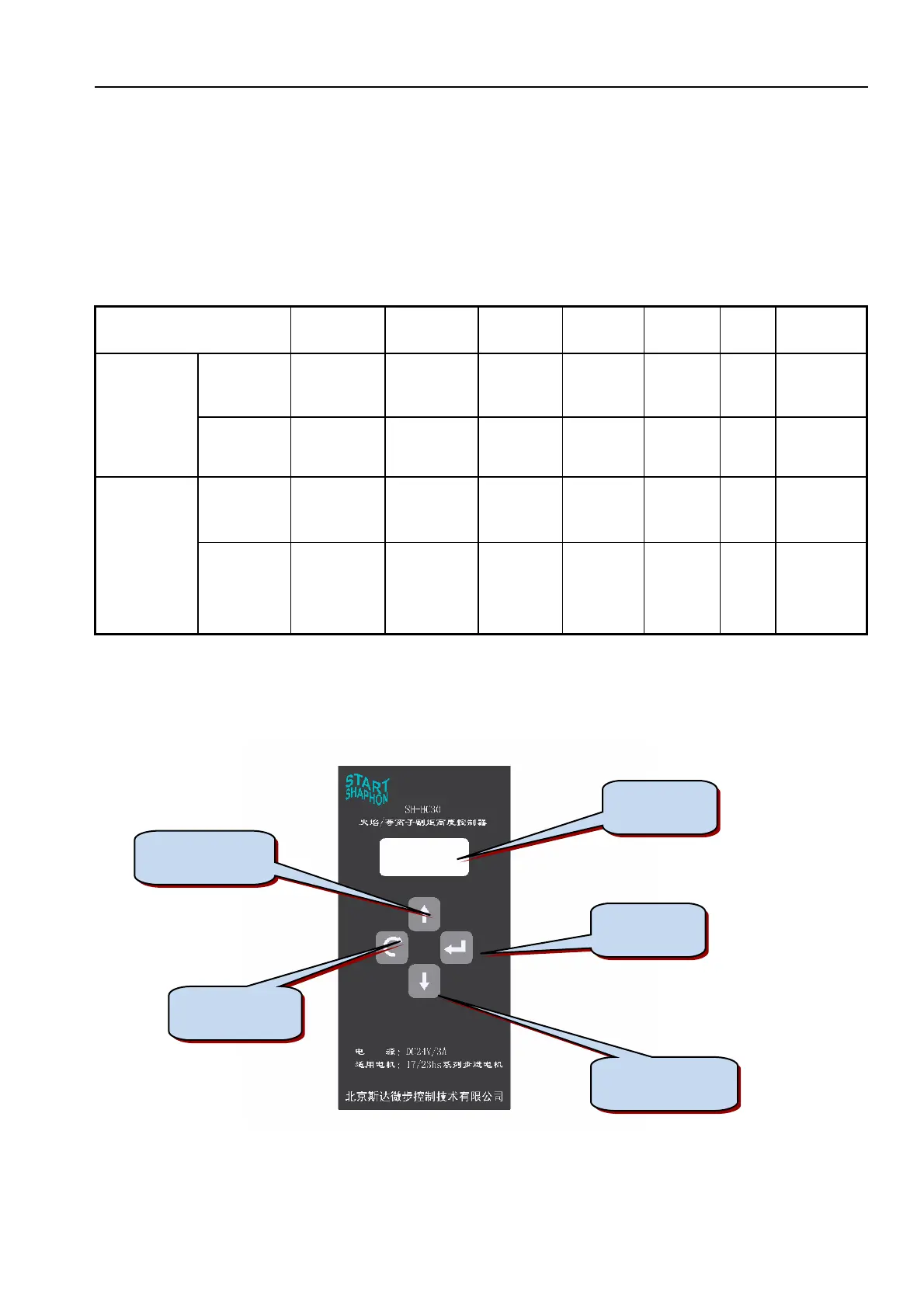

The operation panel is shown in Figure 7-1.
Display
Page
23
Up arrow
Enter key
function
down arrow
Figure 7-1
Operation Panel
