SH-HC30 Height Controller System Manual
The remote controller uses the computer core design and can implement the information communication
RS232 with the master controller. The adjustment of the height and the sensitivity adopts the simple knob
design so that it has the operation conveniences of analog circuit and accuracy and reliability of digital
circuit.

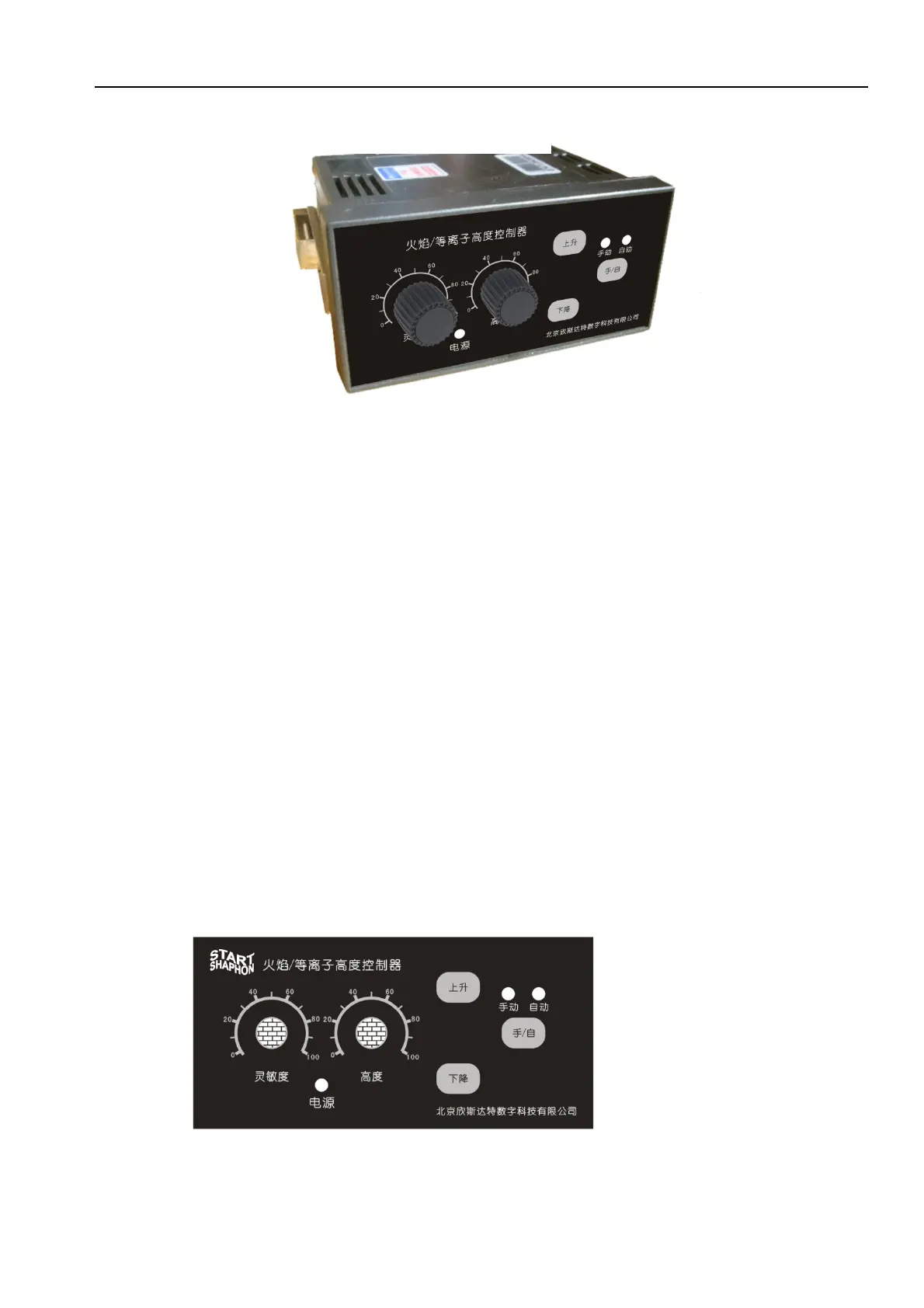

Graphicmodelofremotecontroller
FigureX‐1Outsideviewoftheheightadjustmentremotecontroller
11.1 Function Introduction
 3 indicator lights.
Power: when the light is on, it is in the electrifying state.
 Manual: when the light is on, it is in the manual operation state, at this time the
automatic indicator light is off.
 Automatic: when the light is on, it is in the automatic operation state, at this time the
manual indicator light is off.
 3 buttons.
 Manual/ automatic: switching between the manual and automatic state.
 Rise: the cutting torch rises manually.
 Fall: the cutting torch falls manually.
 2 knobs, as shown in Figure X-2.
 Height: in automatic state, the height of cutting torch is adjusted.
 Sensitivity: in automatic state, the control sensitivity of the cutting torch is adjusted.
11.2 Operation Guide
Page
29
