SH-HC30 Height Controller System Manual
When it is powered on, the controller is in manual operation state, the indicator light
"Manual" is on, while the indicator light "automatic” is off. At this time, if the height of
the cutting torch needs to be adjusted, the button of "up" or "down" may be pressed.
When you press the key “up”, the cutting torch rises; when you stop pressing, rising
stops. In the same way, press the button of "down", the falling of the cutting torch
may be completed.
When the automatic height control is needed, click the button of "manual /automatic",
the light of "Manual" is off; the light of "Automatic" is on, which makes the height
controller enter the automatic control mode. In this mode, the height of the cutting
torch is adjusted according to the set height automatically.
Note: This control system adopts two external control methods for the height
controller, namely, direct external switch control mode and the remote controller
control mode. In this system, if two external control modes exist simultaneously, only
when the two modes are in the automatic control state, the height controller may
enter the automatic control state, otherwise, they are manual control states.
If the height does not meet the requirements, regulate the knob of "height" to set.
0% is low, 100% is high.
If you think the regulation accuracy is not enough, you can adjust the knob of
"sensitivity" to the low position (direction 0%), thereby the sensitivity is improved,
but it should not be too low, otherwise it may cause the cutting torch oscillate up and
down; When oscillation is found, the knob of "sensitivity" can be adjusted to a high
position (direction 100%) till the oscillation is eliminated, which is the best.
11.3 Wiring Instructions

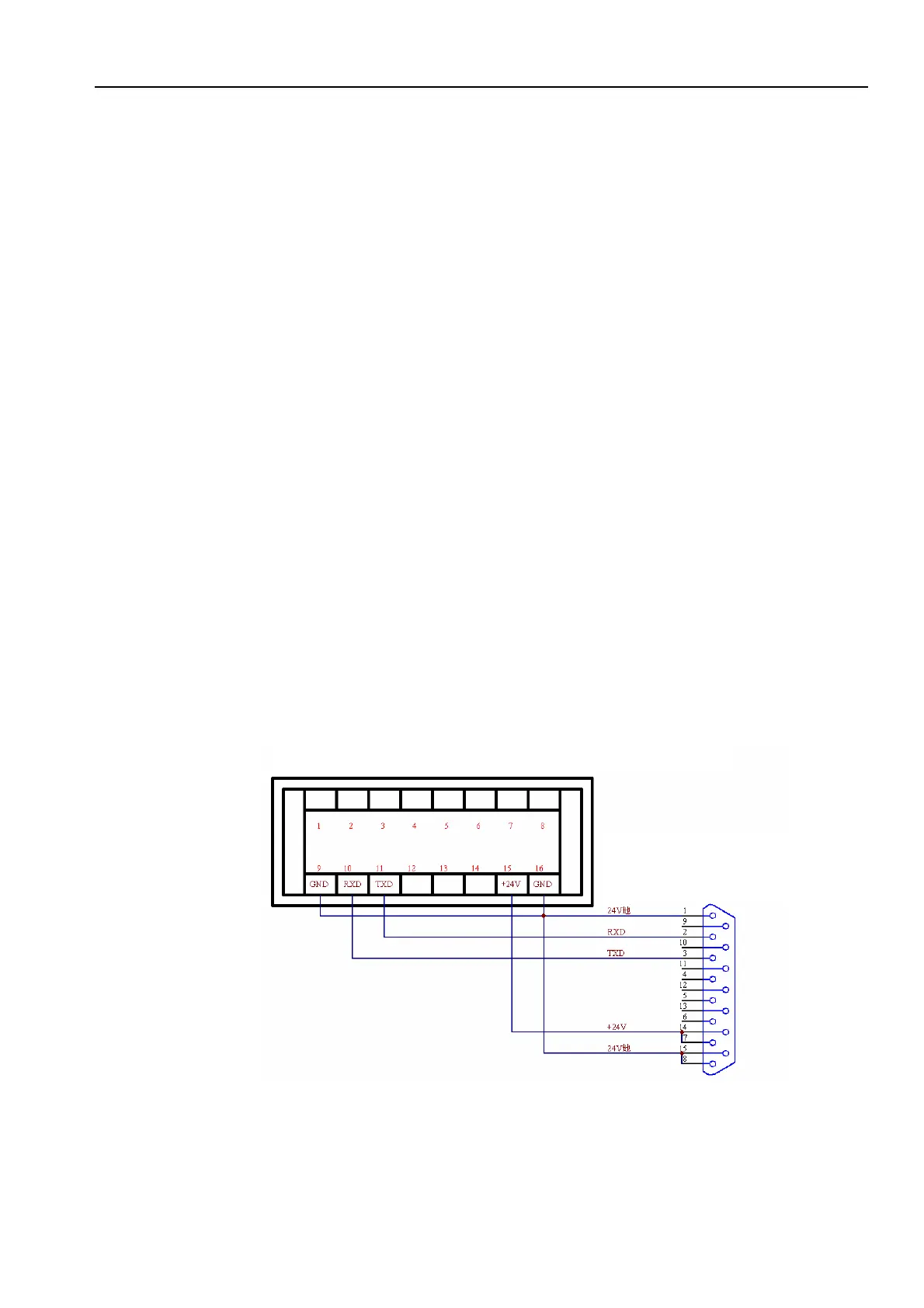

Wiring diagram is shown in Figure X-3.
Wiringunit1 Backterminaloftheremotecontroller
Wiringunit2
DB15 plug of height controller
Figur
e X-3 Wiring diagram of height remote controller
The functions of the back terminal of the height remote controller are shown in Table X-1.
