SH-HC30 Height Controller System Manual
 Total weight of Arc Voltage height: 1.645kg
 Detection system: capacitance-type detector, arc voltage height detector
3. Installation
3.1 Mechanical Installation

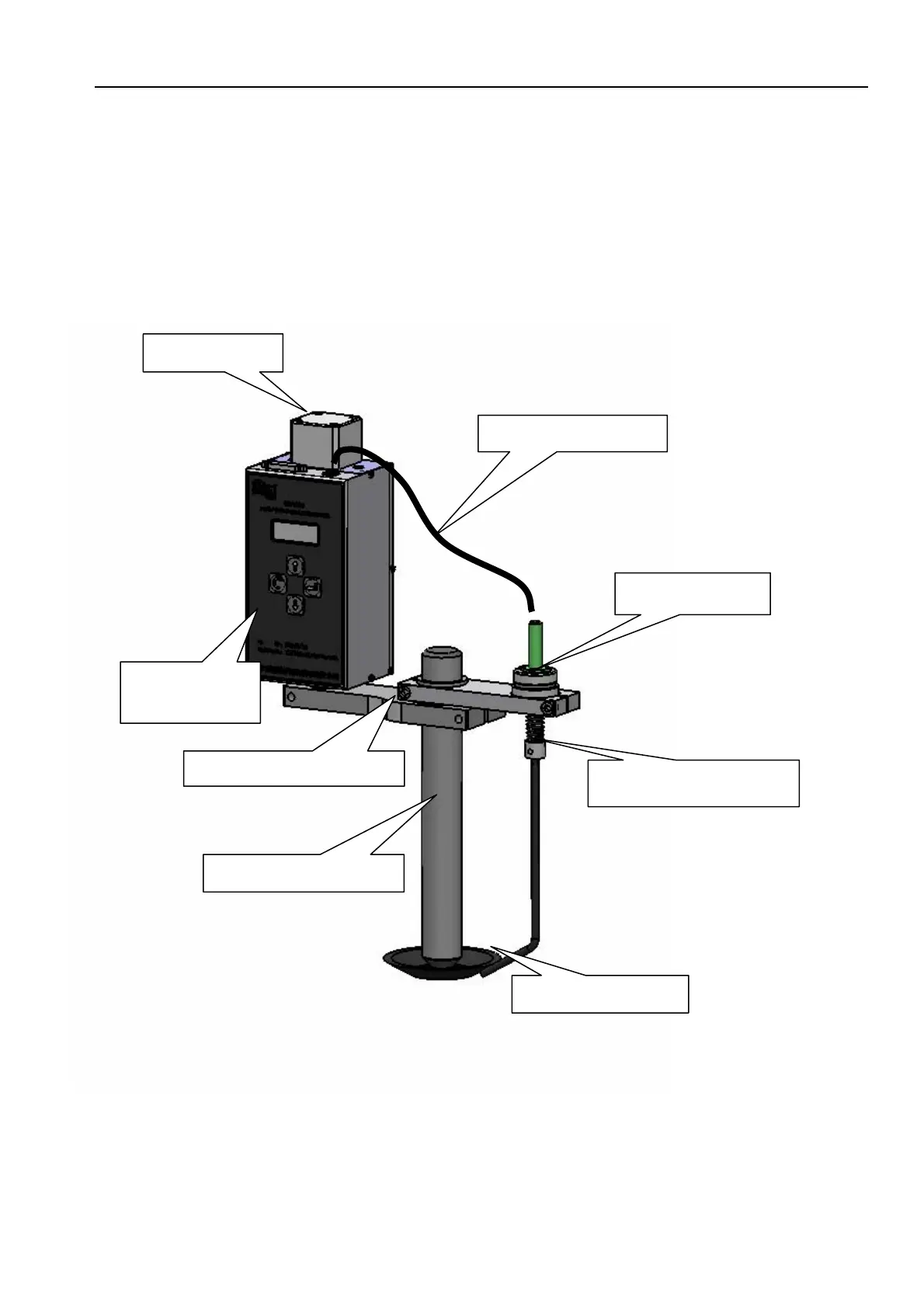

 The name and position of relevant components of the height controller are shown in Figure 3-1.
 Among them, capacitive sensor connecting components are only added in flame .
Liftstepper
Operatingdisplay
panel
Flamecuttingtorch
Cuttingtorchholder
Standardhighfrequency
Detectorringholder
Detectorring
Detectorring
 Figure 3-1 The position, name and function of various components of controller
 6 screw holes M6 on the back of the height controller are used to fix the box body
to the support. Their position and size are shown in Figure 3-2.
