SH-HC30 Height Controller System Manual

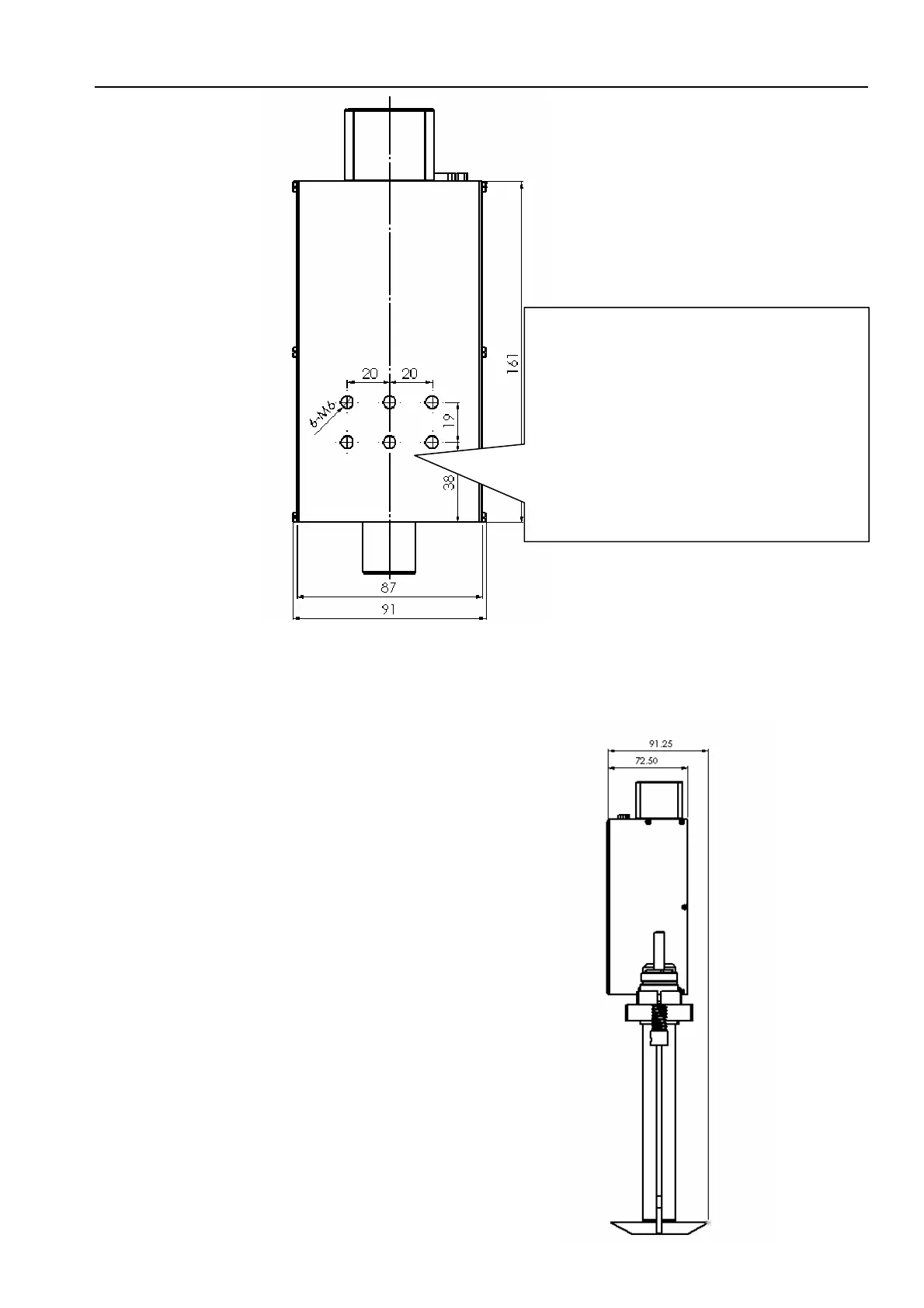

Figure 3-2 Position for installation of screw holes on the back of the controller
Note:
Pay attention to the depth of six mounting
holes in installation so as not to affect the
stroke.
2. The distance from the shell of the height
controller to the interior should be less than
8mm, namely the length inserting into the
interior of the height controller shell must not
exceed 8mm.
Left view i
nstallation drawing of the height controller and related dimensions, as shown in Figure 3-3.
Back view installation drawing of the height controller and related dimensions, as shown in Figure 3-4.
Figure 3-3 The right view of the controller
Page
6
